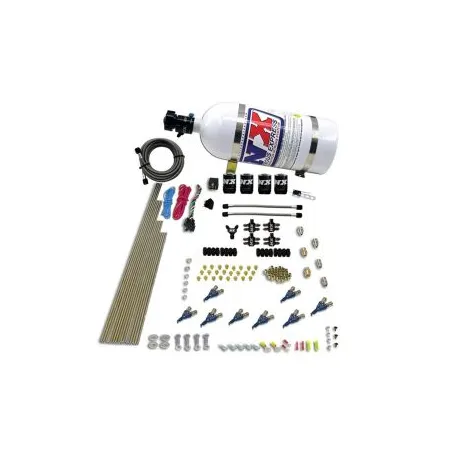

8-Cyl Direct Port Nitrous System EFI Gasoline (200-500Hp) 10LB Nitrous Express NX 80001EFI-10

8-Cyl Direct Port Nitrous System EFI Gasoline (200-500Hp)

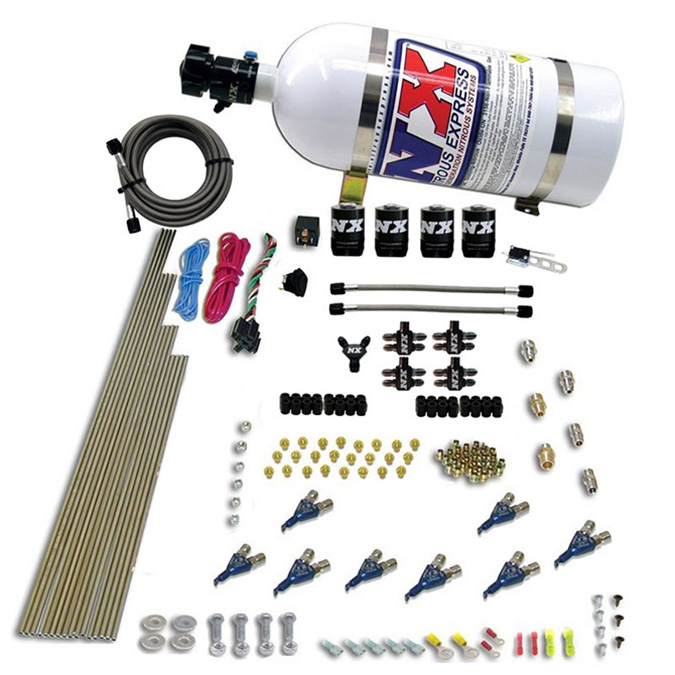

This system includes:

• 8 of the NX Piranha Nozzles
• 2 NX Lightning series nitrous solenoids
• 2 NX Lightning series fuel solenoids
• Anodized aluminum distribution blocks
• 3/16 stainless hard lines
• Nickel plated fittings
• Jetting for 200-500HP
• 6AN nitrous feed lines
• High flow 6AN Y fitting
• Wide open throttle switch
• 40 Amp relays and relay harnesses
• Master arming switch
• Stainless bottle brackets and systems with a bottle include the NX 500 Lightning bottle valve

This system includes the latest technology and the best components available. For you tech hungry junkies we will provide some details explaining what makes this nitrous system so great. The key to maximizing nitrous horsepower is to keep the nitrous in a dense liquid form until it is injected into the engine. Sharp bends in the nitrous flow path cause the nitrous flow to become turbulent which causes gaseous bubbles to form in the flowing nitrous. Dense liquid nitrous makes more power than gaseous nitrous Period! This NX nitrous system contains the key components that ensure you are getting maximum power per pound of nitrous used. Read on and we will explain.

NX Lightning solenoids feature an improved flow path that allows nitrous / fuel to enter above the seat and exit out the bottom for flow unmatched by any other solenoid on the market. Lightning nitrous solenoids feature an integrated purge port which allows you to connect a purge valve directly to the body of the nitrous solenoid. Purging through the body of the solenoid eliminates the air pocket between the purge valve and the solenoid orifice. Lightning fuel solenoids feature a fuel bypass port which allows you to connect a small return line to the tank. This eliminates trapped air between the fuel pressure regulator and the fuel solenoid which eliminates the lean spike associated with other solenoids. Lightning Series solenoids feature CNC aluminum bodies topped with Carbon Fiber cans for the ultimate in weight savings. Nitrous Express only uses the highest quality, made in the USA components in its solenoids. Do not be fooled by low price come-ons, the solenoids are the most important component of a nitrous system.

Systems with a bottle include the billet aluminum Lightning 500 bottle valve. This valve not only looks great; It is packed with features including two integrated gauge ports, 5/8 siphon tube, a large .500 orifice and an improved flow path with only one 45 degree turn. The Lightning bottle valve looks great, flows great and weighs nearly one full pound less than our old style brass valve.

Instructions PDF
