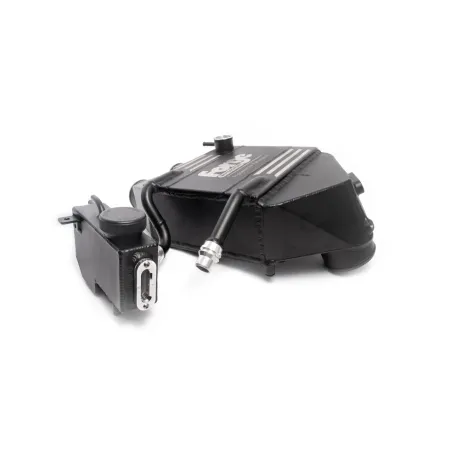

BMW M2/M3/M4 Chargecooler

• 71% increase in volume
• 42% increase of frontal area
• Increase in power of up to 20BHP
• Tested to 4BAR before despatch
• Ready for water/methanol injection if required
• Lifetime warranty

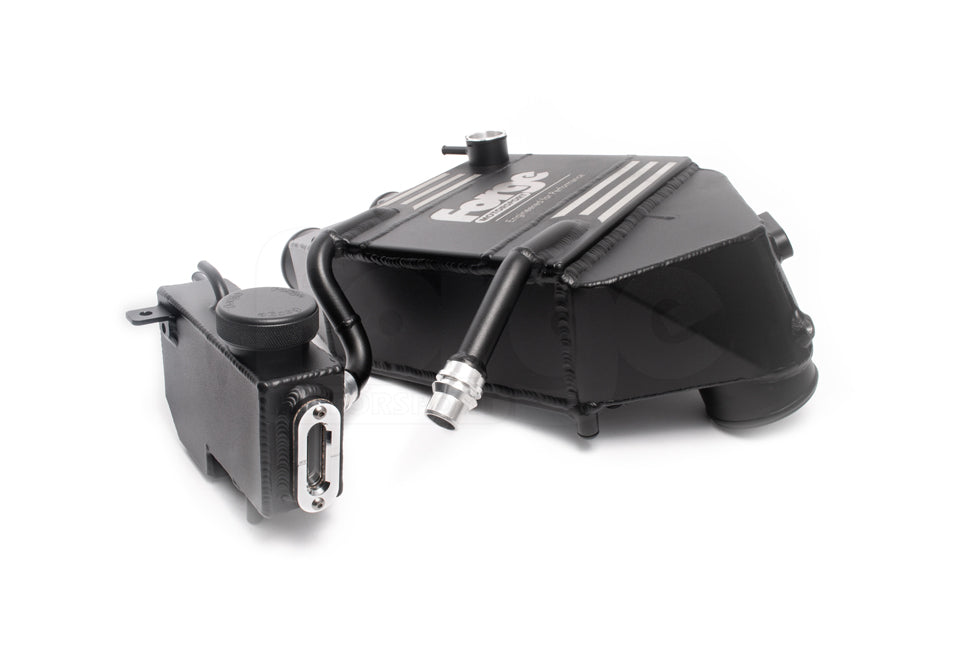

In addition to the Forge Motorsport PolarCooler range, here we have the top mount replacement chargecooler and expansion tank for the BMW MSport S55 Engine. The Chargecooler features an all aluminium construction which overcomes all the issues relating to plastic end tank splitting, failure at high boost and leaks between the core and end tanks with end tank seal failure. The end tanks are fabricated using high precision laser cut sheet metal panels which are TIG welded by hand for maximum strength and durability.

Designed and manufactured at Forge Motorsport HQ in Gloucestershire, England, we utilised our Solidworks CAD design system to assist in the creation, modification, CFD (Computational Fluid Dynamics) analysis and optimization of this innovative charge cooler. Three different core constructions were evaluated during the development process. The final design of a bar and plate core far outperformed the other two alternatives. In doing this, the Forge Motorsport development engineers have made a quadruple pass design, allowing the water to flow through four passes of the cooler which improves the cooling efficiency beyond any other products currently on the market.

Unique to the market, the Forge BMW M3/M4 S55 Chargecooler system (that also fits the M2 Competition F22 2018-) uses an expansion tank rather than a header tank like the OEM system. There is a filler cap located at the highest point on the Chargecooler allowing you to be sure that the charge is 100% full of coolant with no air pockets. This maximises the efficiency of the heat rejection of the coolant within the Chargecooler water jacket.

The existing OEM Chargecooler rubber mounts are used for this expansion tank and Chargecooler, isolating the system from the harsh vibrations of the engine. No trimming or cutting of the vehicle is required and all parts can be returned to standard if necessary.

In the box

1x Chargecooler unit
1x Expansion tank with sight glass
1x Expansion tank cap
1x Small radiator cap
1x Billet radiator cap cover
1x Billet blanking cap
1x 1/8 NPT Grub screw
7x M6x12mm Allen cap bolts
7x 6mm washers
1x M8x20mm Allen cap bolt
1x 8mm washer
1x M8 Nyloc nut
3x
