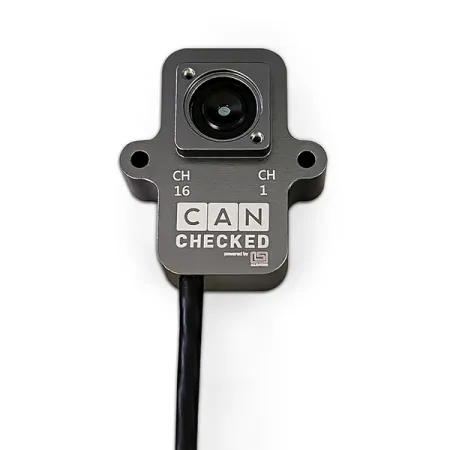

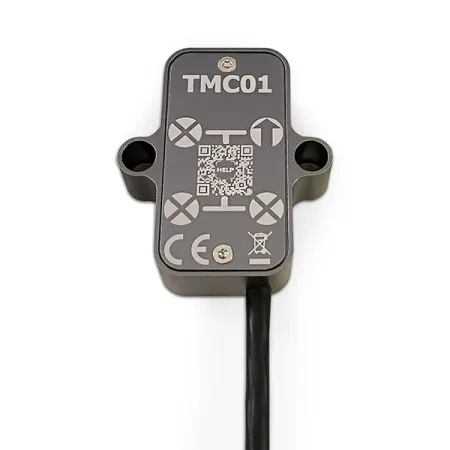

CANchecked Tire Temperature Sensor - TMC01

Enhance your racing or high-performance setup with accurate, real-time temperature data. This sensor provides comprehensive insights across multiple channels, designed for the demands of motorsport environments.

Key Features

  • Temperature Range: -40 to +300°C with ±1°C accuracy
  • Multi-Channel Customization: Up to 16 configurable channels for tailored data

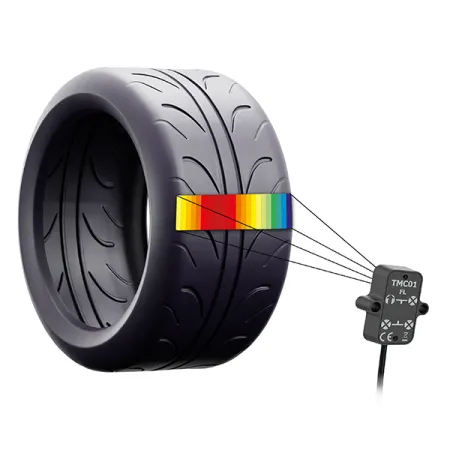

  • Field of View Options: 110° standard, optional 55° for focused measurements on request
  • Compact and Durable Design:
    • Size: 45.5 x 25.5 x 12 mm
    • Weight: 25g
    • Housing: Aluminum or polyamide, rated IP66 for rugged conditions
    • Optional Protecting Lens: Additional lens option for enhanced durability and protection
  • Flexible Power Input: Operates on 5–20V with an adjustable refresh rate up to 64 Hz
  • Seamless CAN Integration:
    • Supports CAN 2.0A and 2.0B standards
    • Adjustable bit rates and CAN termination options
    • Standard CAN-ID configurable for tire (0x310) or brake (0x210) data
  • Data Precision:
    • -200°C offset
    • 0.1°C per bit resolution for high-accuracy readings
  • Easy Installation:

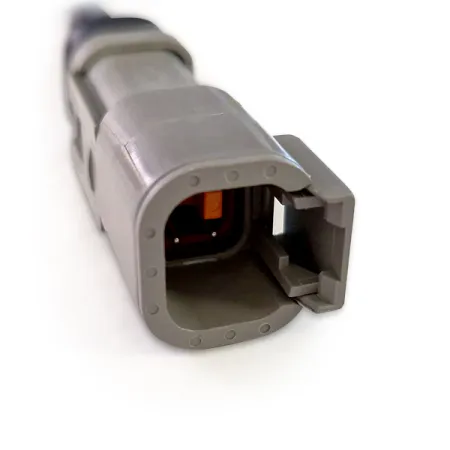

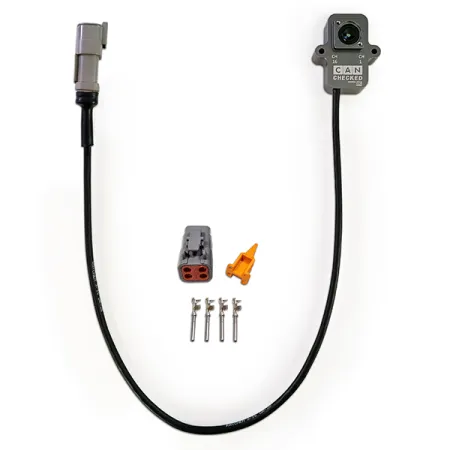

    • Includes 0.5m AWG22 cable and DTM04-4P connector
  • Built for Performance: IP66 rating ensures resilience against harsh environments

Conclusion

Ideal for racing and performance testing, this sensor empowers you with actionable data for optimizing handling, braking, and tire management.
