FCST-X Lift Pump Mounts All Depths Radium Engineering

FCST-X LIFT PUMP MOUNTS
The mounts below are specific to the FCST-X ONLY (20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00). NOTE: Lift pump mounting information for the older FCST (20-014X-XX, 20-04XX-XX, 20-06XX-XX, and 20-09XX-XX) can be found towards the top of this page.

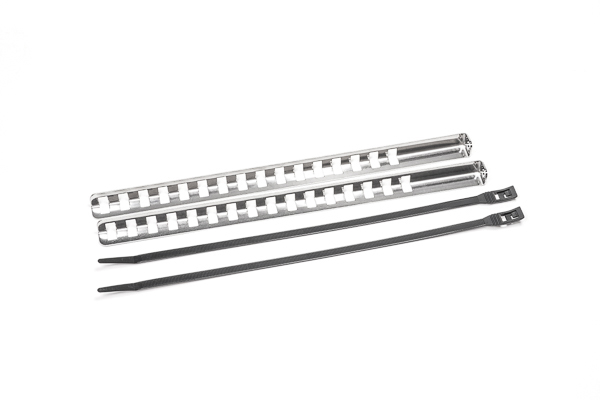

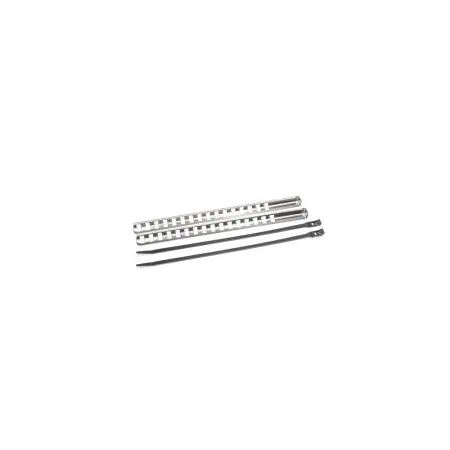

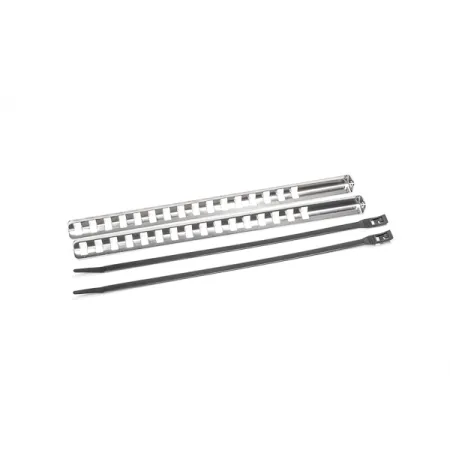

NOTE: There are 2 sets of lift pump brackets included with the purchase of a FCST-X. The kits below include 2 laser cut polished stainless steel brackets and 2 large locking pump bands.

20-1214 FCST-X LIFT PUMP MOUNTS, ALL DEPTHS
These lift pump mounts do not come standard with any FCST-X. They were designed specifically for 39mm OD fuel pumps. But because these brackets are so long, different diameter pumps can be used. These lift pump mounts permit an additional 4-1/8" (105mm) over the long 20-1213 mounts provided with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth. If modifying to a specific fuel cell depth, simply cut to length using a band saw, cut-off wheel, etc. NOTE: Longer hose and/or wiring may be necessary.
