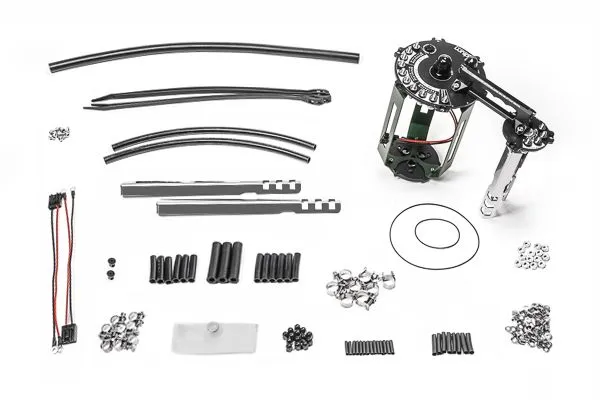

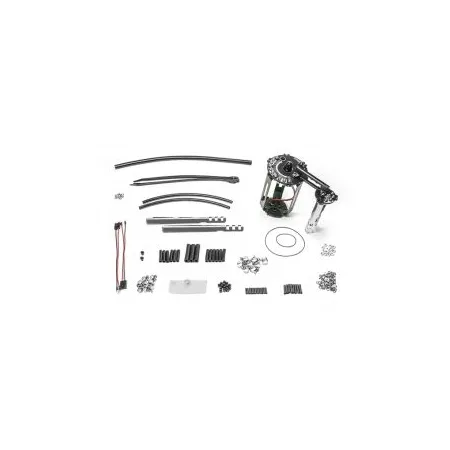

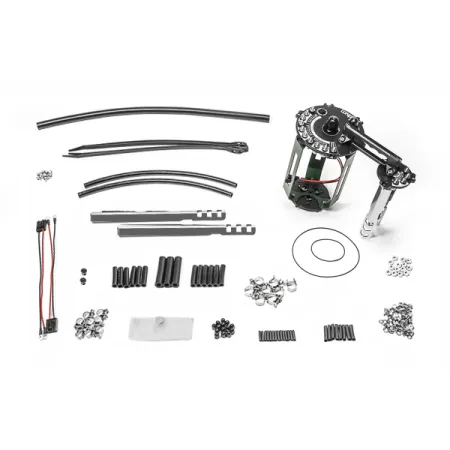

FCST-X Spare Drop-In Pump Module Walbro GSS342 AEM 50-12 1200 or DW440 Radium Engineering

FCST-X FEATURESLEGACY FCST FEATURESThe features listed below carry over from previous fuel cell surge tanks.-Merged single 10AN ORB female threaded outlet. All pumps use check valves that prevent back-flow.-One-way fill valves (355LPH each) allows fuel in, but not out, keeping the surge tank full.-Multiple fuel pump options including gerotor, turbine, and brushless DC motor pumps.-Hermetically sealed high-current stainless steel electrical studs capable of handling all pumps.-Simplified servicing eliminates sealing washers and fuel cell retaining brackets.-Full CNC aluminum construction with anodized surfacing for superior corrosion resistance.-Fuel compatibility: leaded and unleaded gasoline, methanol, ethanol, E85, etc.-Optional fuel surge tank level switch and diagnostic LED failsafe port.-Rollover vent valve protection  NEW FEATURESIn addition to all previous FCST features, the new FCST-X rendition is packed with innovations.-Fast lift and surge pump access (9 bolts total)-Integrated lift handle for fuel pump servicing-Lightweight surge tank increased from 2.2L to 2.6L-Compatible with up to 4 brushless fuel pumps-Up to 4 Bosch BR540 fuel pumps (DW400) -Up to 3 Ti Automotive E5LM brushless pumps-Up to 4 brushless Bosch pumps (DW440)-Compatible with 16AN inlet mechanical pumps-Easily swappable pump modules (sold separately)-Compatible with shrouded level sensors-Designed with less potential leak points-Improved fluid control for quick filling-Optimized internal fluid management-Enhanced roll over protection-Anti-rotation electrical terminals SPARE DROP-IN PUMP MODULESAn FCST-X spare drop-in pump module is an additional lift and surge pump assembly for super fast pit stops. If fuel pressure issues arise, 9 bolts out and back in will get your team back on the track. Pumps are not included. 20-1996 PUMP COMPATIBILITY- Walbro GSS342- AEM 50-1200- *Deatschwerks DW440*Use the electrical connector provided with the pumps. Instruction PDF
