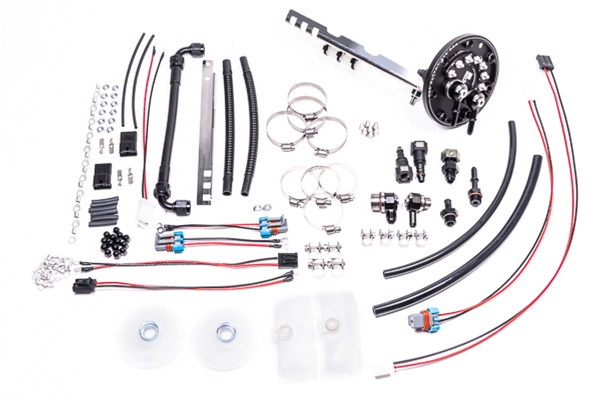

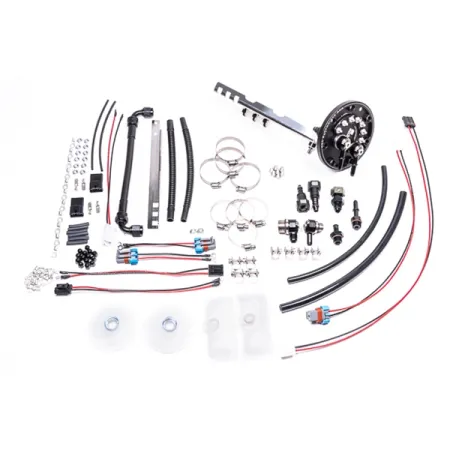

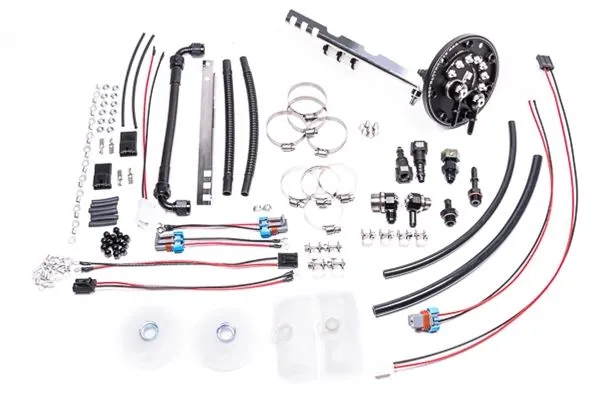

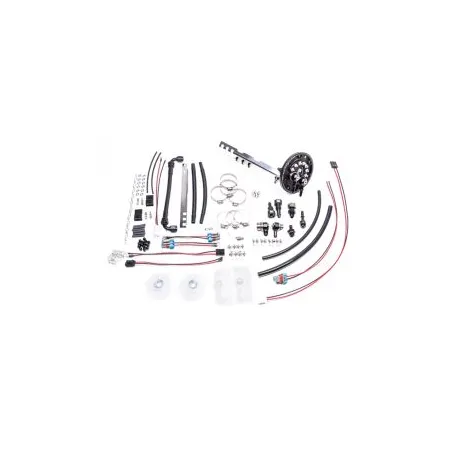

Fuel Hanger for Toyota Chaser / Mark II / Cresta Pumps not Included Radium Engineering

OVERVIEW

The Radium Engineering Fuel Pump Hanger is a drop-in aftermarket fuel pump solution for supplying the fuel required to maximize power gains.

Features
-Drop-In Installation
-Dual Pump Capable with Popular Pumps
-Brushless Fuel Pump Compatibility
-High Current Electrical Hardware
-Anodized Aluminum Construction
-Gasoline, Methanol, and Ethanol Compliant
-Fuel Resistant Tubing and Wiring
-Stainless Steel Hardware

VEHICLE COMPATIBILITY
Toyota Chaser (X90)
Toyota Chaser (X100)
Toyota Mark II (X90)
Toyota Mark II (X100)
Toyota Cresta (X90)
Toyota Cresta (X100)

PUMP COMPATIBILITY
This system supports 1 or 2 aftermarket fuel pumps (sold separately):

*Walbro F90000267
*Walbro F90000274
*Walbro F90000285
*Walbro F90000295
*Walbro GSS342
*AEM 50-1000
*AEM 50-1200
**Bosch BR540
**Deatschwerks DW400
**Deatschwerks DW440 (brushless)
**Protec 11928 (brushless)
**Fuelab 49614 (brushless)
*Ti Automotive E5LM (brushless)

PLUMBING
The feed port is tapped with 7/8-14 female threads (10AN ORB). The return port is tapped with 9/16-18 female threads (6AN ORB). Multiple adapter fittings are provided for connecting back to the OEM fuel lines.
