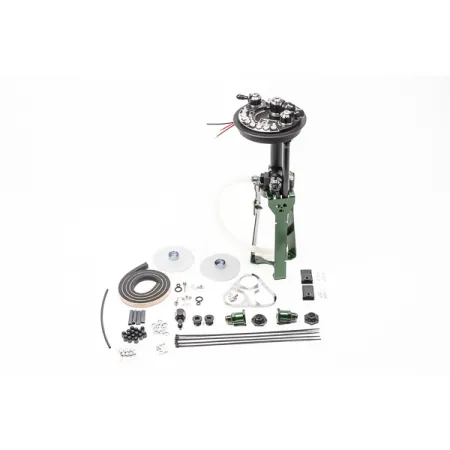

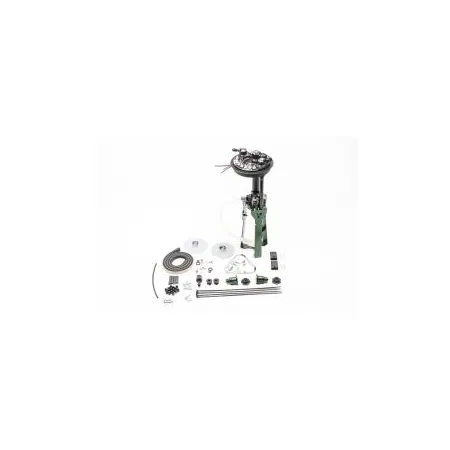

Fuel Hanger for Toyota Supra MK4 Pumps not Included TI Automotive E5LM Radium Engineering

VEHICLE COMPATIBILITY
Toyota MK4 Supra (JZA80)

PUMP COMPATIBILITY
20-1512
Walbro F90000267
Walbro F90000274
Walbro F90000285

20-1510
Walbro GSS342 255lph
AEM 50-1200

20-1511
Ti Automotive E5LM

FEATURES
-Drop-In OEM Replacement
-Permits 1-3 Pumps and 1-2 E5LM Pumps
-8AN Male Pump Outlet
-6AN Male Return Inlet
-Fuel Starvation Protection
-High Current Electrical Hardware
-Compatible with Various Pumps
-Anodized Aluminum Construction

INCLUDED
-8AN Male Fitting for Pump Outlet
-6AN Male Fitting for Aftermarket Return
-8.5mm Barb Hose End for OEM Return
-6.5mm Barb Fitting for OEM Vent
-OEM Fuel Sensor Mount
-Venturi Siphon Jet Pump
-Fuel Resistant Submersible Tubing
-Fuel Resistant ETFE Insulated Wiring
-Stainless Hardware
-Pump Inlet Filtration

20-1511 FUEL HANGER, MK4, PUMPS NOT INCLUDED, TI AUTOMOTIVE E5LM
This fuel pump hanger is designed specifically for the Ti Automotive E5LM brushless fuel pump.

Because of pump height, the maximum amount of Ti Automotive E5LM brushless pumps that can be physically installed is 2.

A popular fuel pump strategy is to use both brushed and brushless pumps (E5LM) together as depicted below. In this case, the most cost effective solution is to purchase the following:

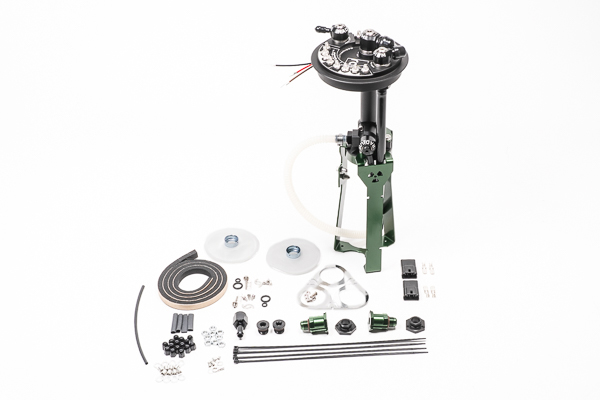

P/N: 20-1511 (shown above), Qty: 1
P/N: Ti Automotive BKS1001, Qty: 1 or 2 depending on how many brushless pumps will be used.
P/N: 14-0543, Qty: 1 or 2 depending on how many Ti Automotive E5LM brushless pumps will be used.
P/N: Walbro GSS342 or AEM 50-1200, Qty: 1 or 2 depending on how many brushed pumps will be used.
P/N: 14-0143, Qty: 2 or 3 depending on how many Walbro GSS342 pumps. These are NOT needed for AEM 50-1200 pumps.
P/N: 14-0291, Qty: 0 or 1 or 2 depending on how many Walbro GSS342 or AEM 50-1200 pumps will be used.
P/N: 17-0051-00, Qty: 1 or 2 depending on how many Walbro GSS342 or AEM 50-1200 pumps will be used.

Instruction PDF
