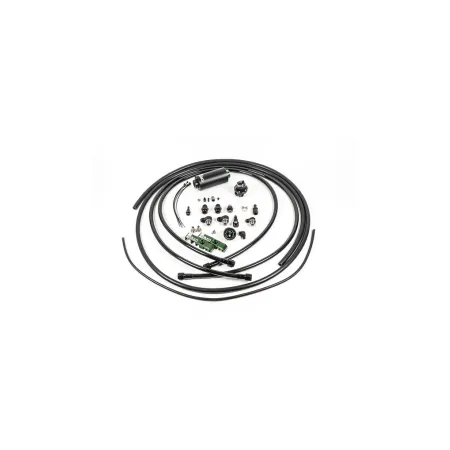

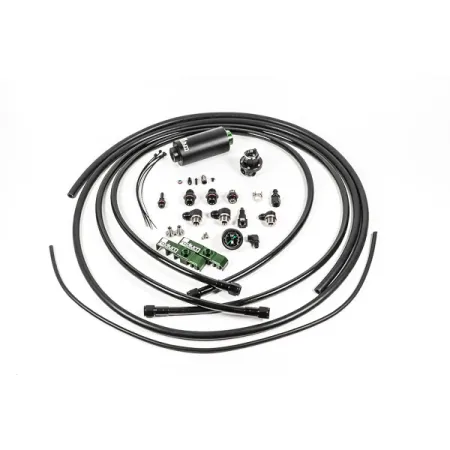

Fuel Hanger Plumbing Kit Microglass Filter Radium Engineering for BMW E36 E46

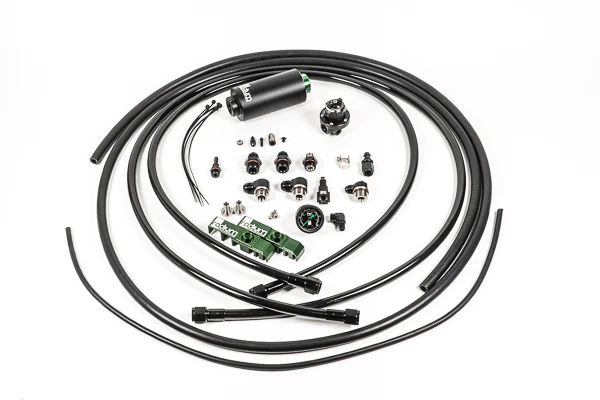

FUEL HANGER PLUMBING KIT, BMW E36 E46 COMPATIBILITY 90-99 BMW E36 316i90-98 BMW E36 318i92-98 BMW E36 318is94-00 BMW E36 318ti91-98 BMW E36 320i95-98 BMW E36 323i91-95 BMW E36 325i95-98 BMW E36 328i92-99 BMW E36 M399-05 BMW E46 316i98-06 BMW E46 318i98-06 BMW E46 320i98-00 BMW E46 323i01-06 BMW E46 325i98-00 BMW E46 328i00-06 BMW E46 330i03-06 BMW E46 330i ZHP00-06 BMW E46 M303-04 BMW E46 M3 CSL OVERVIEW These kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware.  First, a low profile 8AN male banjo fitting is installed to the fuel hanger pump outlet. 8AN PTFE fuel hose runs to the LH side over the top of the fuel tank. It then turns downward and routes along the underside of the chassis through 2 billet fuel/brake line retainers. A new billet high flow fuel filter is mounted in the OEM location. Elements are either 10 micron stainless (-03) or 6 micron microglass (-05). From the fuel filter outlet, another 8AN PTFE fuel hose runs into the engine bay and towards the front of the fuel rail (not included). A low profile 8AN male banjo fitting is installed to the fuel rail. A direct mount fuel pressure regulator and gauge is mounted at the rear of the fuel rail. A new 6AN return hose with an SAE quick connect adapter is constructed to route fuel from the direct mount regulator to the rear. A low profile 6AN male banjo fitting is installed to the fuel hanger return port. New vacuum tubing is provided to replace the OEM hard lines. INCLUDES DMR-RA Fuel Pressure Regulator 0-100psi Fuel Pressure Gauge Filter (-03 Stainless or -05 Microglass) 8AN Fuel Filter Adapter Fittings 8AN and 6AN Fuel Hanger Fittings Fuel Brake Line Retainers (x2) 8AN Fuel Rail Adapter Fitting 8AN PTFE Fuel Feed Hoses 6AN Fuel Return Hose 6AN SAE Quick Connect 6AN PushLok Hose End Stainless Steel Hardware 5/32" Vacuum Tubing Misc Adapter Fittings Instruction PDF
