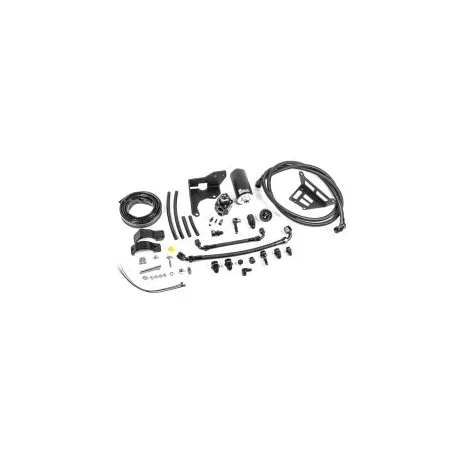

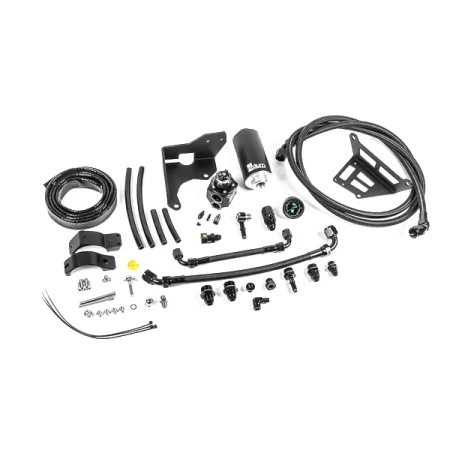

Fuel Hanger Plumbing Kit Stainless Filter Radium Engineering for Chevrolet Corvette 2014-2019

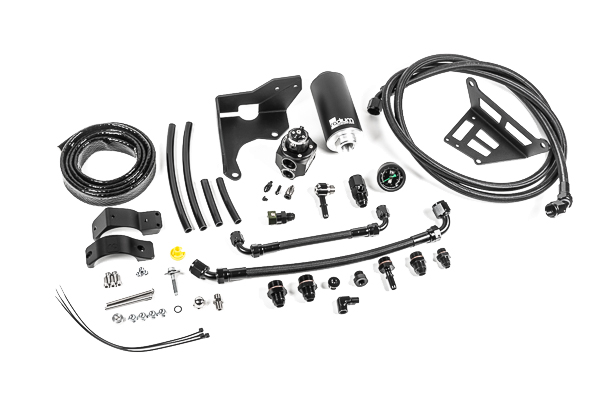

PLUMBING KIT COMPATIBILITY 14-19 Chevrolet Corvette (M/T Only) These kits provide all necessary plumbing to and from the engine including a fuel filter, fuel pressure regulator, fuel lines, adapter fittings, and mounting hardware. From the fuel hanger pump outlet, 8AN PTFE fuel hose runs down to a chassis-mounted fuel filter near the fuel tank. Depending on the kit selected (20-1011-03 and 20-1011-05), the fuel filter will be assembled with a choice of stainless or microglass elements (respectively). A tee is secured inline with the feed that permits the use of the OEM pressure sensor for tuning. From the fuel filter another 8AN PTFE fuel hose runs through the tunnel parallel to the torque tube and into the fuel pressure regulator. Thermal insulation is included to protect the hose and vacuum tubing from the exhaust system. The FPR secures to an aluminum mount near the brake master cylinder. The FPR has multiple high pressure ports. A SAE quick connect adapter is provided for connecting the FPR to the OEM HPFP using the stock fuel feed line. Adapter fittings and a fuel pressure gauge are provided to monitor and properly calibrate the FPR.The OEM fuel feed line (that runs from the tank to the enbgine bay) is repurposed as a return line. Adapters fittings are provided for connecting both ends of the return line (FPR and Fuel Hanger). INCLUDES MPR-RA Fuel Pressure Regulator Fuel Pressure Gauge Check Valve Filter (-03 Stainless or -05 Microglass) C7 Corvette Fuel Filter Mount C7 Corvette FPR Mount 8AN Fuel Filter Adapter Fittings 8AN PTFE Fuel Feed Hoses 6AN PTFE Fuel Feed Hose Thermal Insulating Sleeve Stainless Steel Hardware Instruction PDF
