Fuel Hanger Surge Tank for 350Z / G35 No Pumps Included F90000267/274/28 DW440 Radium Engineering

COMPATIBILITY

NISSAN 350Z
Jan04 - up
*Jan02 - Jan04

NISSAN FAIRLADY Z
Jan04 - up
*Jan02 - Jan04

NISSAN SKYLINE SEDAN
Jan01 - Dec08
**Dec08 - up (excluding 2.0L Turbo)

INFINITI G35 SEDAN
Jan01 - up

INFINITI G37 SEDAN
**Dec08 - up

INFINITI Q50
**Nov13 - up (excluding 2.0L Turbo)

NISSAN SKYLINE COUPE
Mar03 - Dec08
*Jan01 - Mar03
**Dec08 - up

INFINITI G35 COUPE
Mar03 - up
*Jan01 - Mar03

INFINITI G37 COUPE
**Dec08 - up

INFINITI Q60
**Nov13 - up (excluding 2.0L Turbo)

*REQUIRES 20-0596 Early Model Fuel Level Adapter, 350Z G35
**REQUIRES 20-0896 Fuel Level Adapter, Skyline G37 Q50 Q60

OVERVIEW
The Radium Engineering FHST (fuel hanger surge tank) is the ultimate solution for fuel starvation issues in the Nissan Z33/V35 chassis. Due to the saddle-bag style OEM fuel tank and insufficient baffling, fuel starvation is common when the vehicle is driven aggressively, such as on a track. This results in unstable fuel pressure and possible engine damage from running too lean. A stand-alone surge tank is an excellent device for eliminating fuel starvation issues. But installing a stand-alone FST is difficult specifically in the 350Z due to the open-cabin design, and lack of a firewall between the driver and the rear of the vehicle. So Radium Engineering chose to create a fully functional fuel surge tank INSIDE the OEM tank.

The Radium FHST can be used with 1 or 2 aftermarket pumps and supplies 1:1 regulated fuel to the engine. No grinding, bending, or modification of the vehicle's sheet metal is required. Furthermore, the system is compatible with alternative fuels such as E85.

Features
-Drop-In Installation
-Permits 1 or 2 Surge Pumps
-Brushless Fuel Pump Compatibility
-Integrated 1:1 Adjustable Fuel Pressure Regulator
-Fuel Pressure Gauge
-Fuel Starvation Protection
-High Current Electrical Hardware
-Compatibility with Popular Fuel Pumps
-Anodized Aluminum Construction
-Gasoline, Methanol, and Ethanol Compliant
-Fuel Resistant Tubing and Wiring
-Stainless Steel Hardware

PUMP COMPATIBILITY
Brushed and brushless fuel pump options are available for the FHST. The system is suited, but not limited, to the following fuel pumps:

20-1832
Walbro F90000267
Walbro F90000274
Walbro F90000285
Deatschwerks DW440 (brushless)

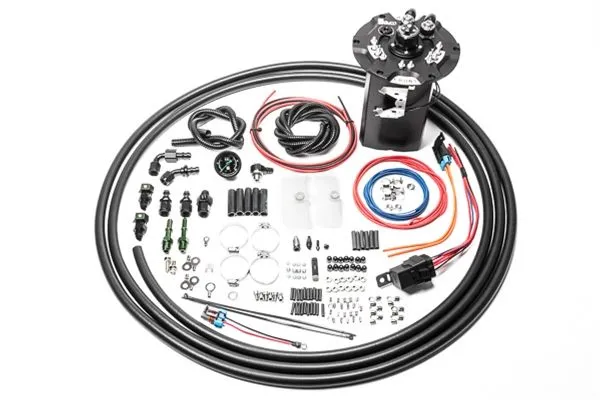

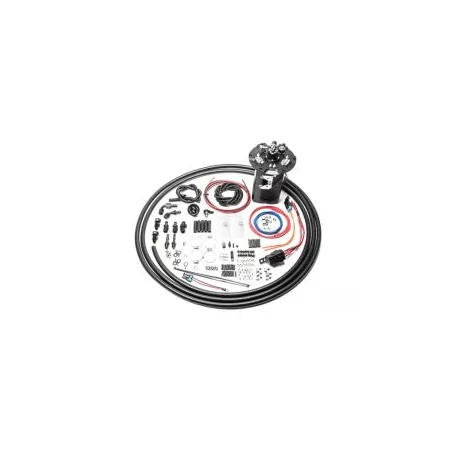

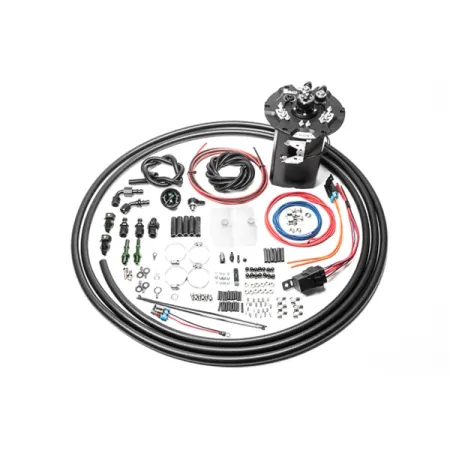

INCLUDED
The comprehensive kit includes all parts necessary to complete the installation including a pressure gauge, external fuel hose, fittings, electrical fuse, relay etc. The user must purchase fuel pumps separately.

Instruction PDF
