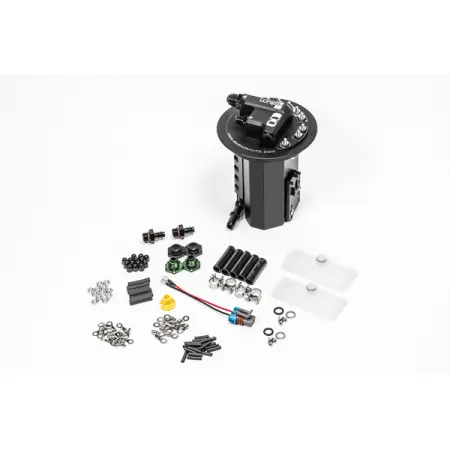

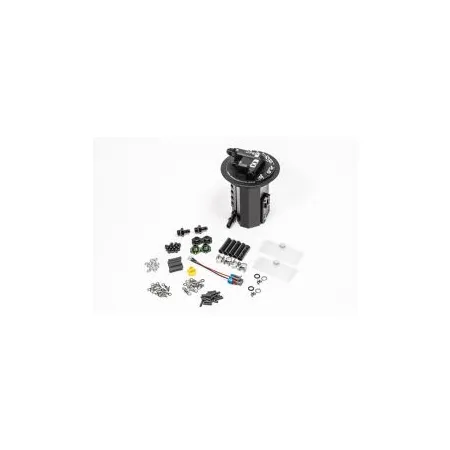

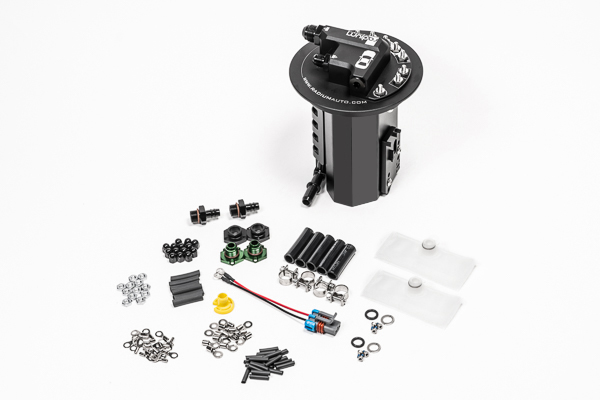

Fuel Pump Hanger for Toyota GR86 2022+ Subrau BRZ 2022+ Radium Engineering

20-1074 COMPATIBILITY
2022+ Toyota GR86
2022+ Subaru BRZ

OVERVIEW
The new Radium Engineering fuel pump hanger has been redesigned for improved fuel collection and for ease of installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used. The OEM level sender is retained in order to maintain factory functionality.

FUEL PUMP COMPATIBILITY
*Ti Automotive Walbro F90000267
*Ti Automotive Walbro F90000274
*Ti Automotive Walbro F90000285
**Deatschwerks DW440 (brushless)
**Fuelab 49614 (brushless)
**Protec 11928 (brushless)

FEATURES
-8AN ORB to 8AN Male Pump-Out Fitting
-6AN ORB to 6AN Male Return Fitting
-Collector Box with 1-Way Fill Valve
-Venturi Jet Pump Siphon
-High Current Electrical Connections
-Anodized Fuel Level Sender Mount
-Twin Fuel Pump Compatibility
-Brushless Pump Compatibility
-Single Merged Fuel Pump Outlet
-Stainless Hardware and Clamps
-Alternative Fuel Compatibility

PREVENTING FUEL STARVATION
The kit includes a 1-piece anodized aluminum collector box that makes installation a breeze and keeps fuel trapped around the pump inlet(s). There is a 355 LPH 1-way fill valve incorporated in the bottom of the collector that allows fuel in, but not out.

Instruction PDF
