Fuel Rail for Nissan RB20DET Radium Engineering

PORTS AND FITTINGS

This fuel rail features three 8AN ORB ports, two located at the ends and one in the middle. It also features one 1/8 NPT port.

8AN ORB Adapter Fittings
8AN ORB Direct Mount Regulators
8AN ORB Fuel Pulse Dampers
1/8 NPT Adapter Fittings
Fuel Pressure Gauge Adapters

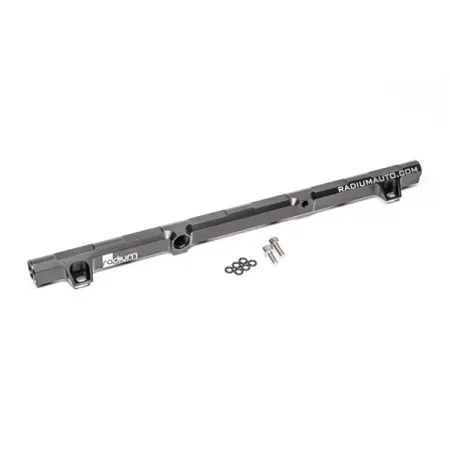

20-0757 FUEL RAIL, NISSAN RB20DET

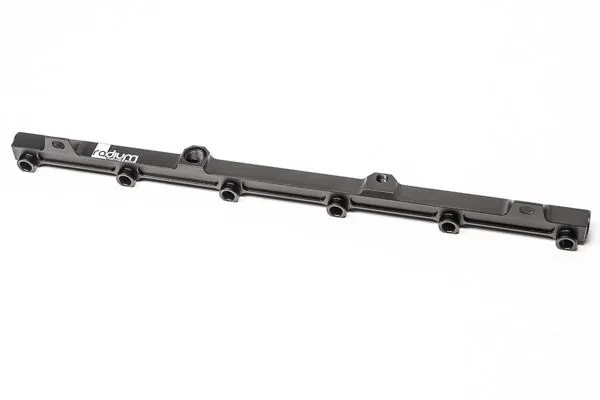

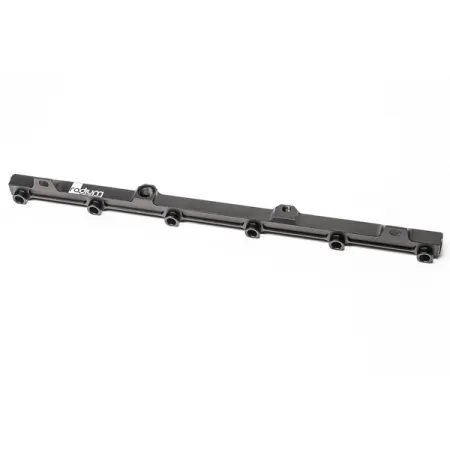

This Nissan RB20DET fuel rail is manufactured with a large 0.69" internal bore, the fuel rail can support all necessary engine power requirements.

The rail is CNC machined from a custom 6063 aluminum extrusion and black anodized and laser etched for a high quality surface finish. It incorporates many lightweight features to go with the strong integrated gusset mounts.

The fuel rail is designed for any aftermarket injectors that have the same fitment as the OEM injectors. Contact an injector manufacturer to see what they offer. The upper injector bores are machined with a common 11mm ID (Denso). Use the included O-rings if re-using the OEM injectors otherwise the included O-rings will not be needed.

INCLUDES

-Black Anodized Aluminum Fuel Rail
-Stainless Steel Mounting Bolts (x2)
-FKM O-rings for OEM Injectors (x6)

Instruction PDF
