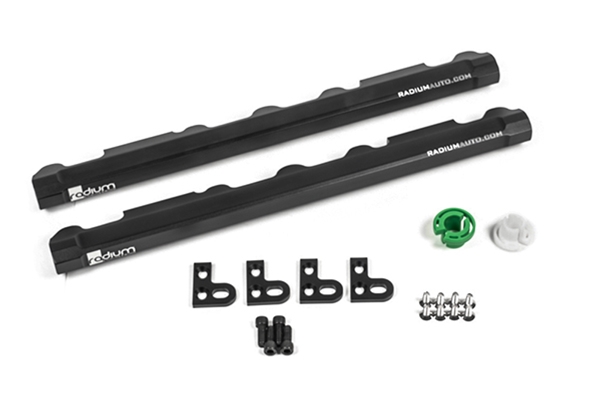

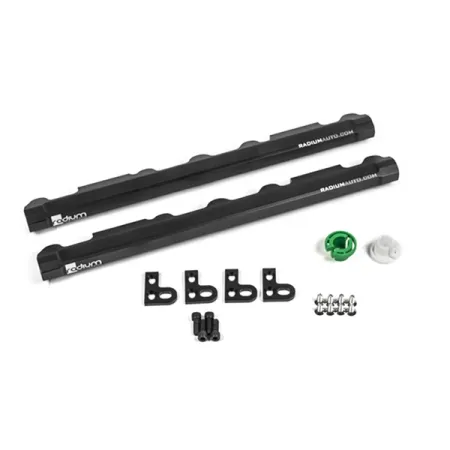

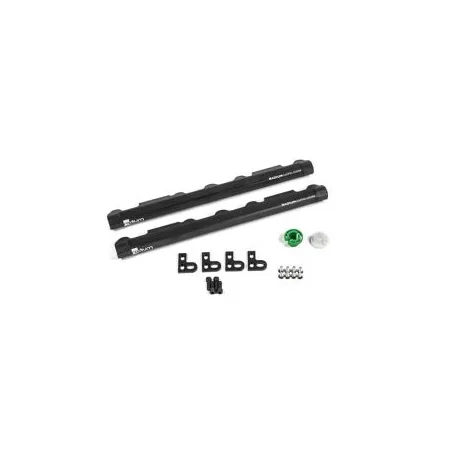

Listwa paliwowa zestaw Ford 302 351 Windsor Radium Engineering

PORTS AND FITTINGS The fuel rail ports are tapped for 8AN ORB and 1/8 NPT. 8AN ORB Adapter Fittings. 8AN ORB Direct Mount Regulators. 8AN ORB Fuel Pulse Dampers. Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide. COMPATIBILITY 88-96 Ford Bronco 88-96 Ford E-Series 96-01 Ford Explorer 91-02 Ford Fairlane 91-02 Ford Falcon 88-97 Ford F-Series 93-95 Ford Lightning 88-91 Ford LTD Crown Victoria 86-95 Ford Mustang 93-95 Ford Mustang Cobra 93-95 Ford Mustang Cobra R 91-93 Ford Thunderbird 87-92 Lincoln Mark VII 1986 Mercury Capri 88-91 Mercury Colony Park 91-93 Mercury Cougar 88-91 Mercury Marquis 97-01 Mercury Mountaineer 90-96 Panoz Roadster OVERVIEW Manufactured with large 5/8" internal bores, the fuel rails can support all necessary engine power requirements. They are CNC machined from 6061 aluminum, black anodized, and laser etched for a high quality surface finish. Each fuel rail has 3 (6 total) 8AN ORB threads.  The physical profile features maximized clearance with the upper intake manifold and the distributor, while supporting maximum flow. Because of this innovative design, the fuel injectors are installed in an exact perpendicular orientation with respect to the LIM injector seats, exactly like OEM. No spacers required. These fuel rails are compatible with all fuel types including popular alcohol mixtures such as E85. INJECTOR COMPATIBILITY Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors are permitted. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Bosch EV14 injectors are ideal as they promote extra connector to fuel rail clearance. Radium Engineering cannot specify any further injector dimensions other than stating "OEM equivalent". INCLUDED 20-1302 Ford 302/351 Windsor Fuel Rails  Black Anodized Laser Etched Aluminum Fuel Rails (x2) Black Anodized Aluminum Fuel Rail Mounts (x5) Black Oxide Stainless Steel 1/4"-20 Screws (x4) Stainless Steel M5x0.8mm Screws (x8) Spring Lock Removal Tools Instruction PDF
