Listwa paliwowa zestaw GM LS1 LS2 LS3 LS6 L76 L99 Radium Engineering

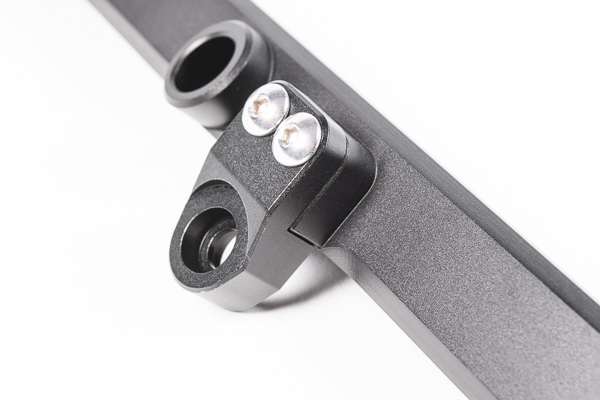

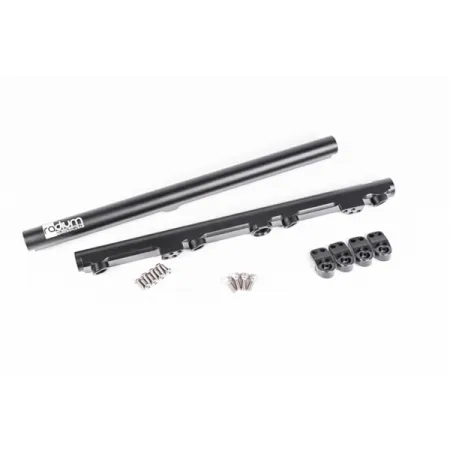

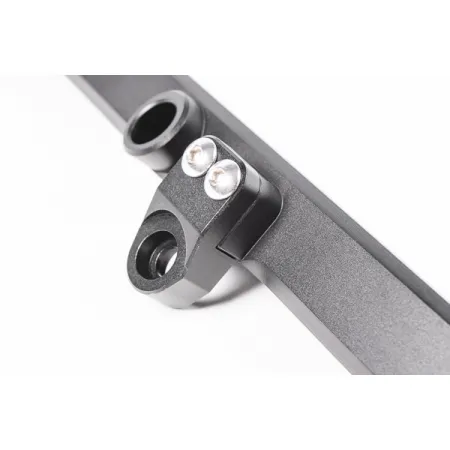

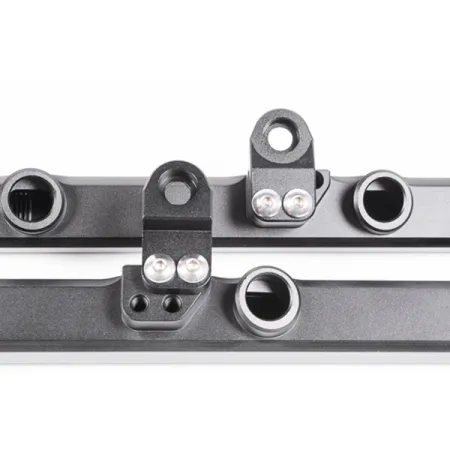

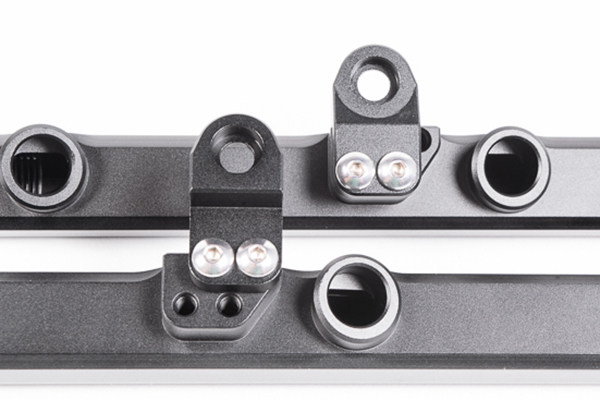

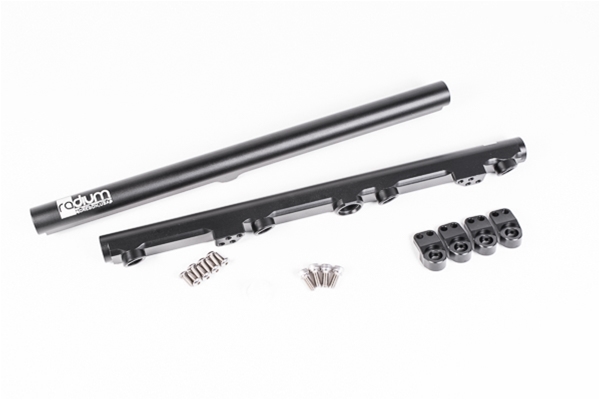

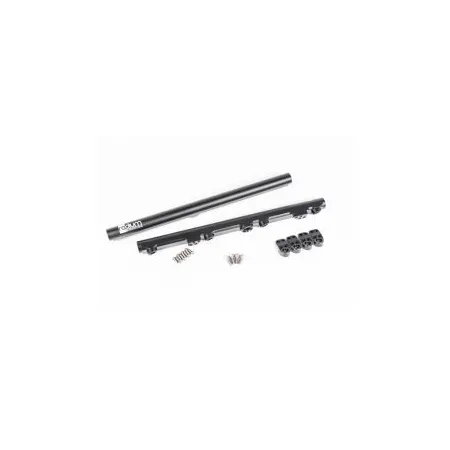

PORTS AND FITTINGS The fuel rail ports are tapped for 8AN ORB. 8AN ORB Adapter Fittings8AN ORB Direct Mount Regulators8AN ORB Fuel Pulse DampersFuel Pressure Gauge Adapters Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide. Manufactured with a large 0.69" internal bore, the fuel rails can support all necessary engine power requirements. They are CNC machined from extruded 6063 aluminum, black anodized, and laser etched for a high quality surface finish. All end ports are machined with 8AN ORB (3/4-16 female) threads. The lower center ports can be used for optional adapters and are also tapped with 8AN ORB (3/4-16 female) threads. INCLUDED-Black Anodized Laser Etched Aluminum Fuel Rails (x2)-Black Anodized Aluminum Mounting Feet (x4)-Stainless Steel Mounting Feet Hardware (x8)-Stainless Steel Replacement Mounting Bolts (x4) FUEL INJECTOR COMPATIBILITYThis fuel rail is compatible with factory or OEM equivalent fuel injectors. If upgrading fuel injectors, consult your aftermarket injector supplier for details. Radium Engineering cannot specify any further injector dimensions other than stating ‘OEM equivalent’. Instruction PDF
