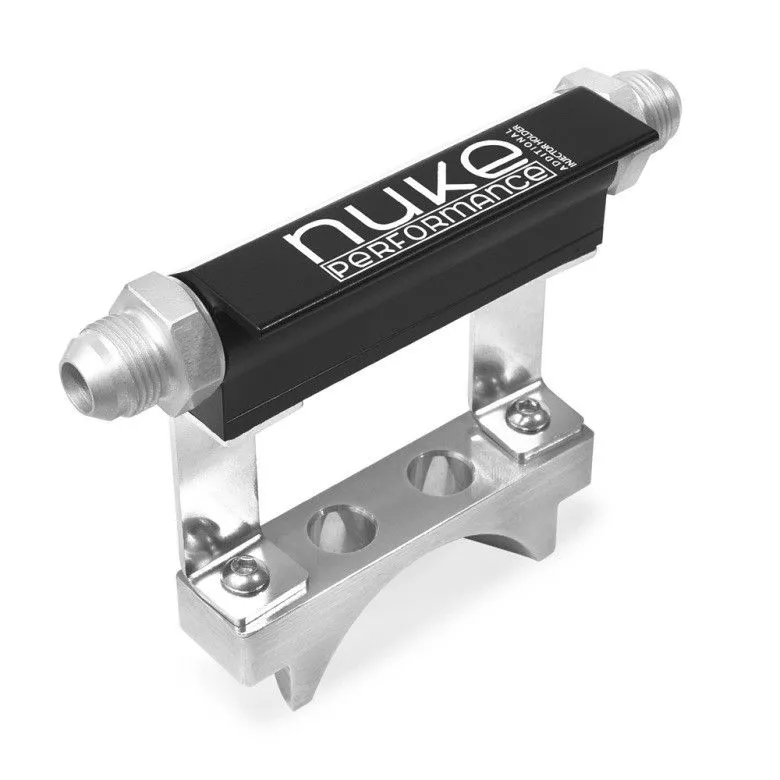

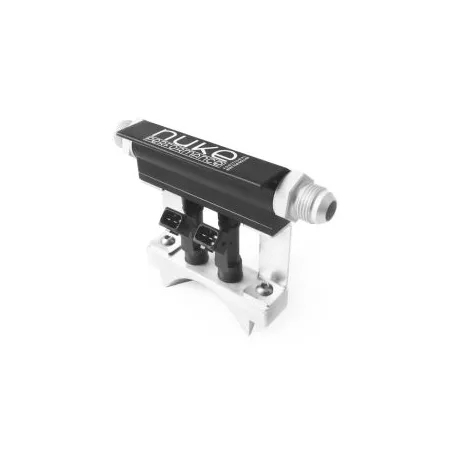

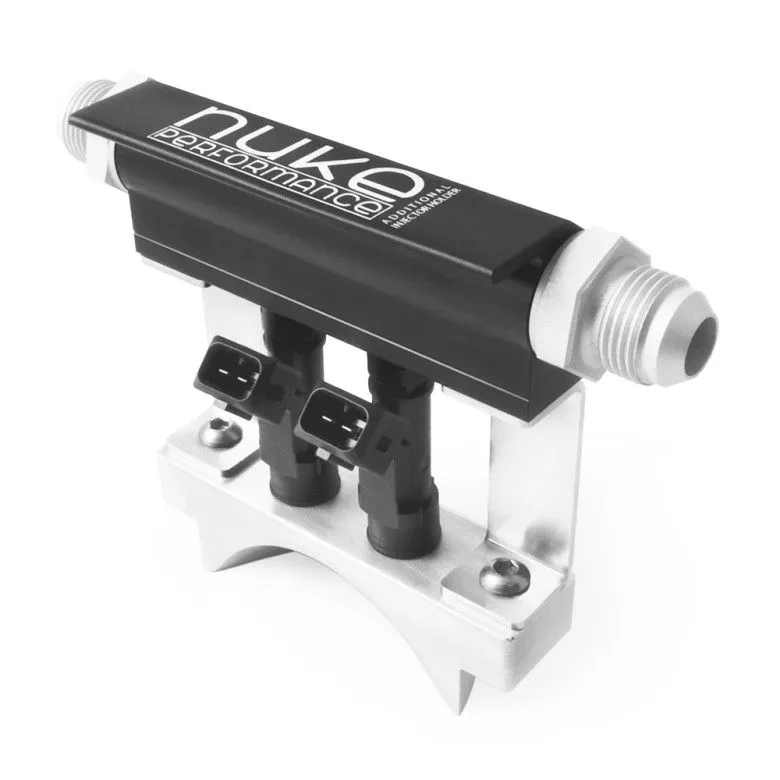

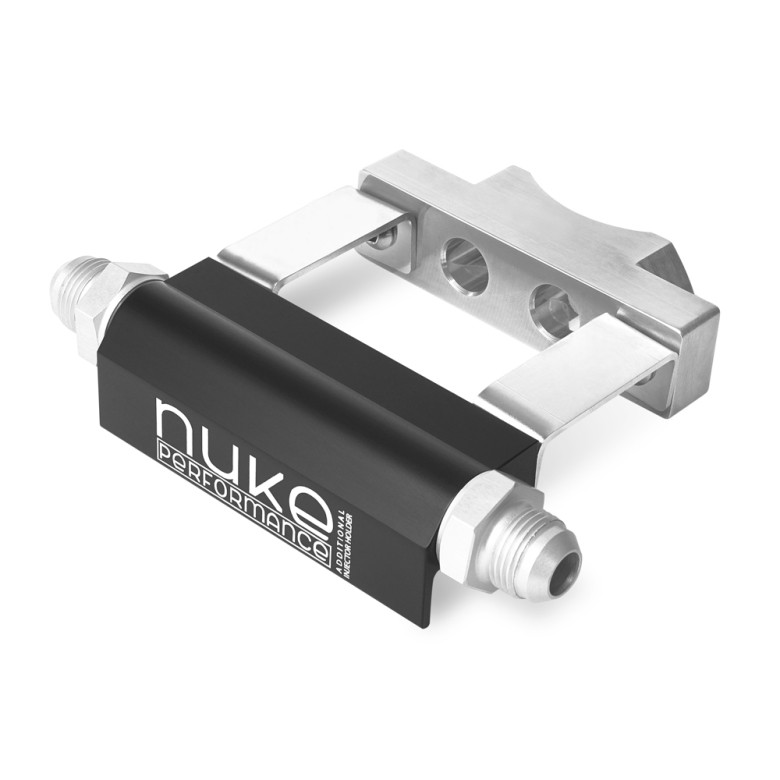

Nuke Performance Additional Injector Holder

Nuke Performance Additional Injector Holder lets you mount a dual setup of injectors to your intake piping. Used by world record holders within drag racing and is safe for both petrol, methanol and ethanol.

Fuel enrichment for all type of fuel lets you get instant additional fuel injection into your intake piping. Adds two extra injectors, when you need more fuel than your ordinary fuel rail can deliver.

 100% Methanol / Ethanol Proof

 Add 2 additional injectors

 For drag racing and motorsports

 AN-8 fittings included

 Made in Sweden

 Fits 3" intake piping

The Nuke Performance Aluminum Additional Injector Holder comes with all the major components needed for installation onto 3" aluminum intake pipe and is safe for all type of fuels, including alcoholic fuels such as methanol and ethanol.

Delivered with all needed fittings

Delivered with 2x AN-8 (3/4 UNF) to AN-8 male fittings. AN-6 and AN-10 fittings are optional and sold as additional accessories.

AN-8 (3/4 UNF) Plug Part # : 700-01-104

AN-8 (3/4 UNF) to AN-6 Male Part # : 700-01-101

AN-8 (3/4 UNF) to AN-8 Male Part # : 700-01-102

AN-8 (3/4 UNF) to AN-10 Male Part # : 700-01-103

Fits 14mm injectors (EV 14L Long) and is often used as additional methanol injection for fuel enrichment in drag racing and other motorsports applications.

Aluminum welding flange for 55-degree injector angle

Aluminum welding flange made for a safe, stable and easy mount to any 3" aluminum intake piping. With this additional injector assembly, your injectors will be placed in a 55-degree angle to the 3" aluminum tube which can give a substantial increase in fuel by utilizing 2 extra injectors. The 55-degree angle is ideal for fuel injection into the intake piping.

This is for use with a standalone fuel enrichment device or as a complement to your Engine Management Systems e.g Haltech, DTAfast, Civinco. The injectors can be integrated or mounted in the intake stream in any Racing engine setup.

No injectors are included. Fits EV 14L Long injectors.

 Developed in Sweden, guaranteeing the highest possible quality

The Additional Injector Holder is developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same hallmark as all the other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!

SPECIFICATIONS

Technical information :

• Aluminum extrusion from 6082-T6.

• 3/4 UNF Thread in both ends.

• Internal diameter of 17,5 mm which guarantees high and reliable flow.

• Nuke Performance injector safety brackets for safe operation.

• Delivered with 2x AN-8 fittings.

• Stainless steel legs between the flange and fuel rail.

• Laserengraved.

Measurements :

Height : 88 mm

Width : 152 mm

Depth : 34 mm

Weight : 206 g
