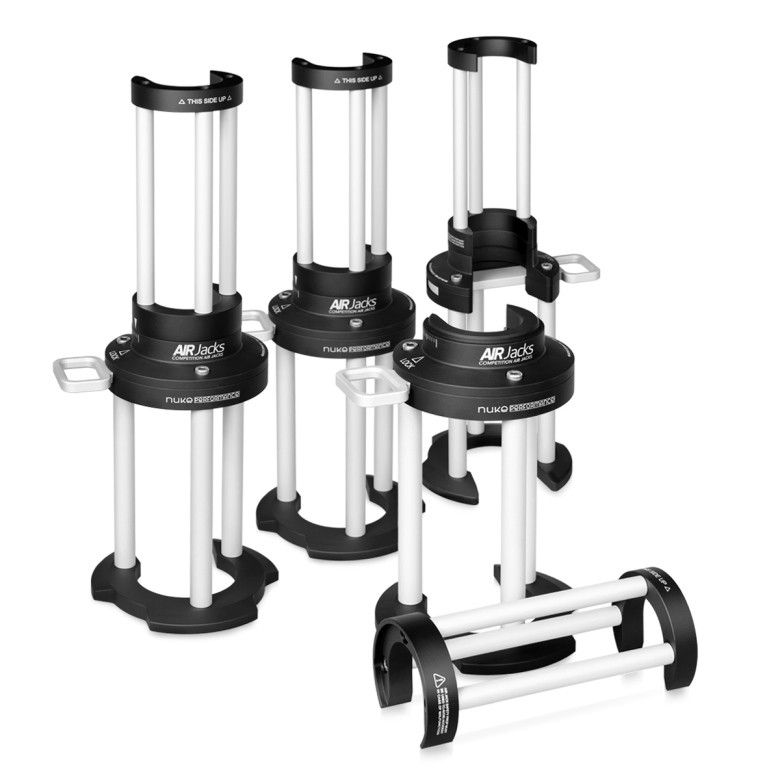

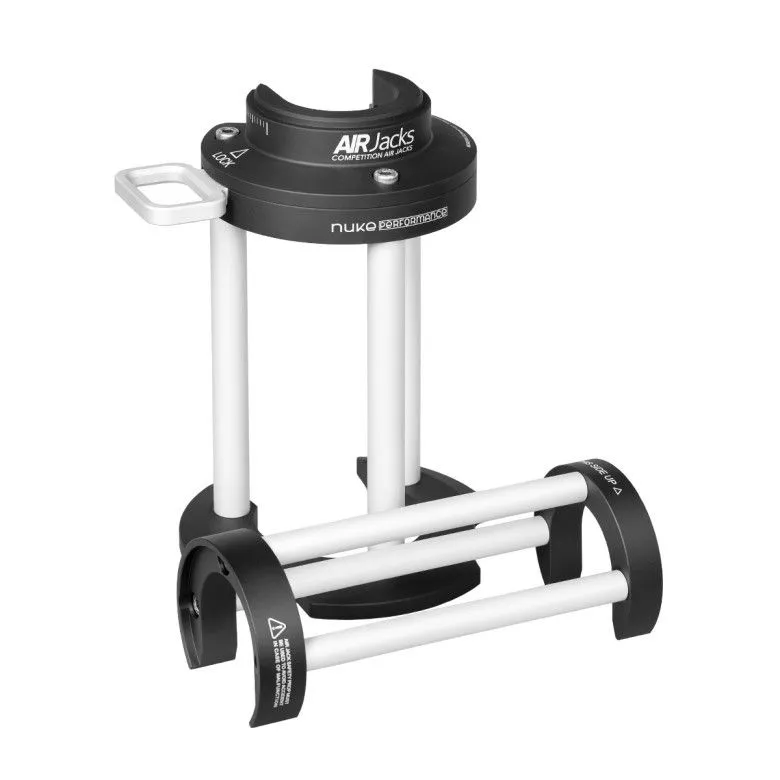

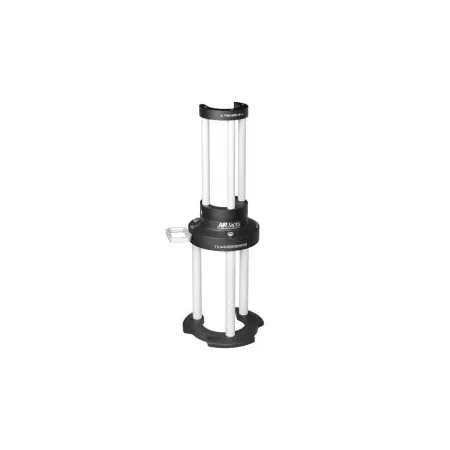

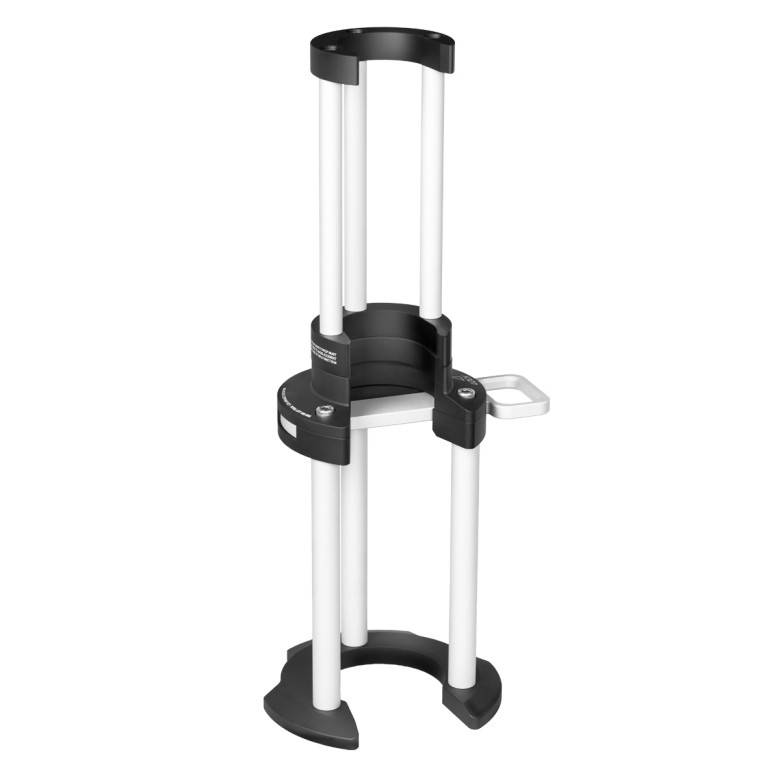

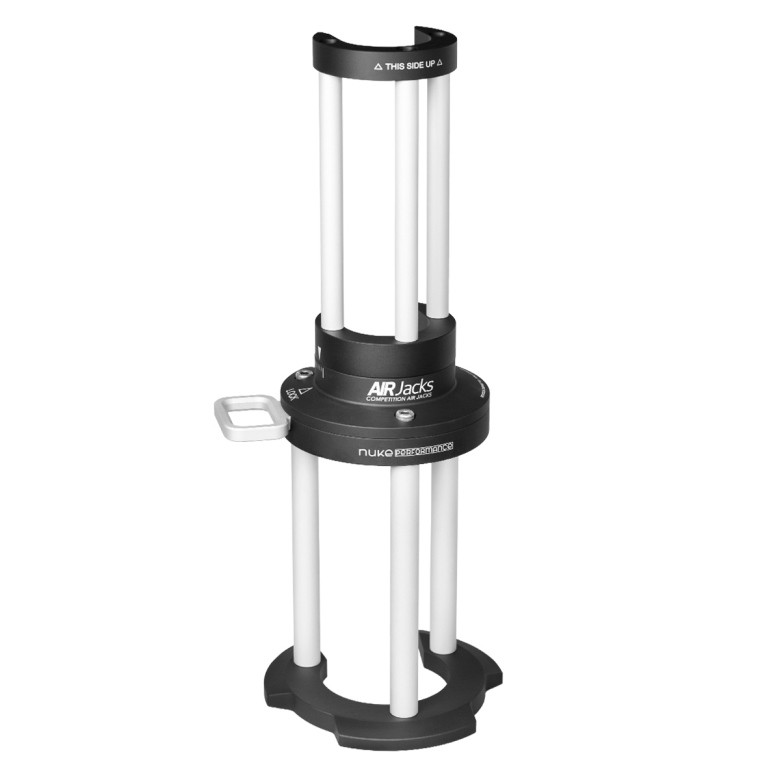

Nuke Performance Air Jack 90 Competition Elephant Foot

Nuke Performance Air Jack 90 Competition Elephant Foot, second stage lift capacity for easy maintenance during track days.

The Nuke Performance elephant feet give you a total lift capacity of 480mm (18.9"), for easy access and safe maintenance of your vehicle. Rigid design for long durability and safe usage on all types of motorsport vehicles.

•  Suits Air Jack 90 Competition low-pressure air jacks
•  Second stage lift option for track days and workshops
•  Total lift height of 480mm (18.9")
•  Easier access to the underside of the vehicle
•  Self-locking design when pressure is released

These elephant feet are designed to work with Nuke Performance Air Jack 90 C low-pressure air jacks. Give you the ability to lift your air jacks in a second stage to ensure a higher lift. With the elephant feet, you can release the pressure line and still be able to work under the car in safety. Used by racing teams in various series worldwide.

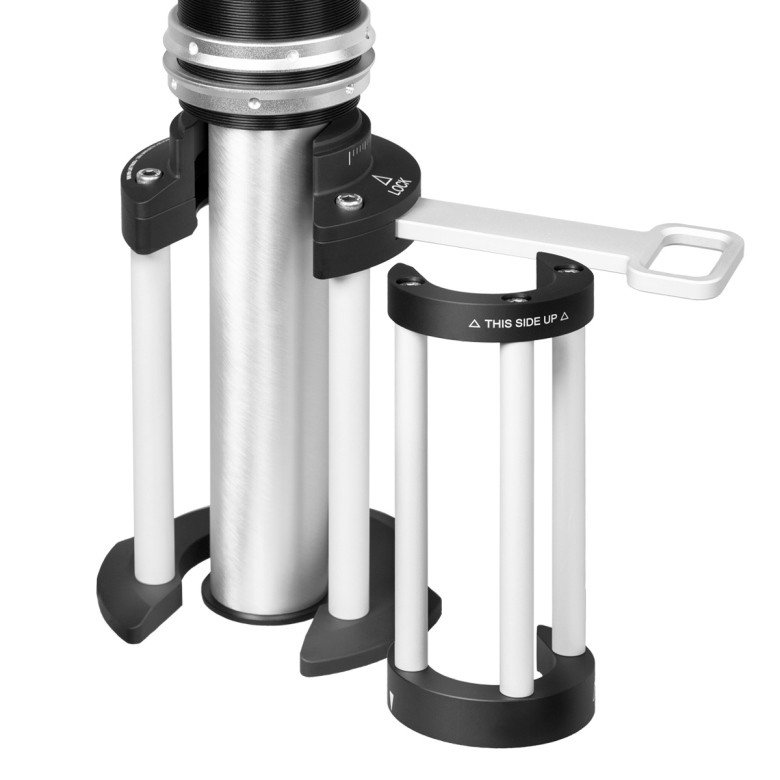

Self-locks when pressure is released for safe and easy access to the underside of your vehicle

When the elephant foot is attached in its second stage and the pressure is released, the elephant foot is locked together into one unit. This makes it possible to work with your vehicle even without pressurized lines and also gives you the ability to let the elephant feet hang beneath the vehicle when using wheel alignment tables etc. The air jacks are self-centered within the elephant safety props.

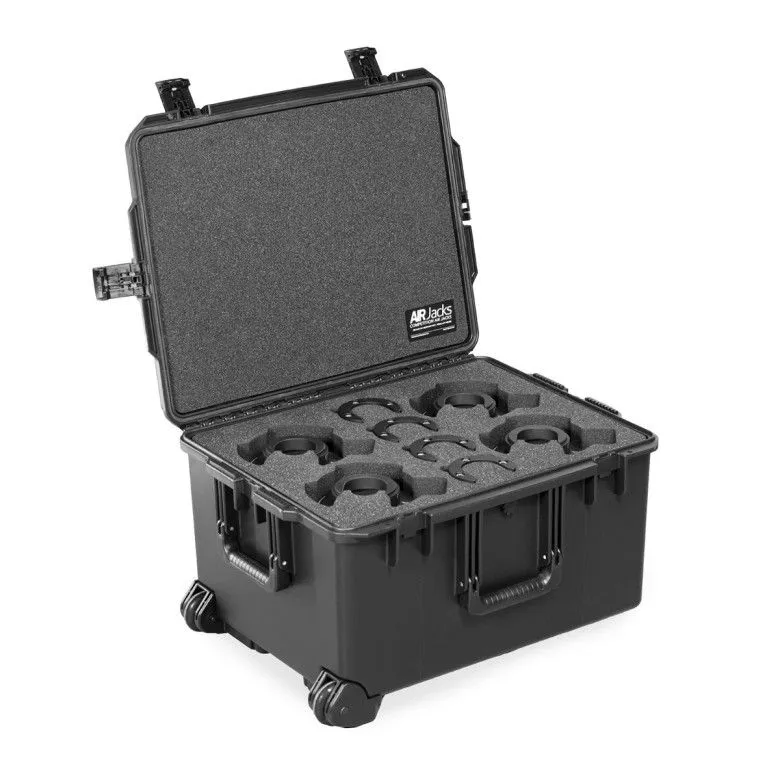

Peli flight case for easy transport and storage

For easy transport and storage, we provide a genuine Peli flight case / hard case. The case has foam inserts which give you the perfect fitment of a set of 4 complete elephant feet. The case is also equipped with a retractable handle and two wheels which makes it really easy to handle within the pitlane or workshop. A must-have accessory for your elephant foot setup. The hard case only suits Nuke Performance Air Jack 90C air jacks.

Elephant Feet Peli Hard Case Part # : 590-02-101

Sold as separate units, used in 3 or 4 Air Jack setups

The Elephant Foot is delivered as separate units and is able to be used when using a 3pcs or 4pcs Air Jack setup. Not suitable for 2pcs Air Jack installations. Select the needed amount of Elephant Feet when placing an order.

Developed in Sweden, guaranteeing the highest possible quality

The Air Jack 90 Competition Elephant Foot and Air Jack 90 Competition are developed, designed and manufactured by Nuke Performance for the highest possible quality and with the same hallmark as all the other parts in the lightweight motorsports range. There is no substitute for the quality of Nuke Performance!

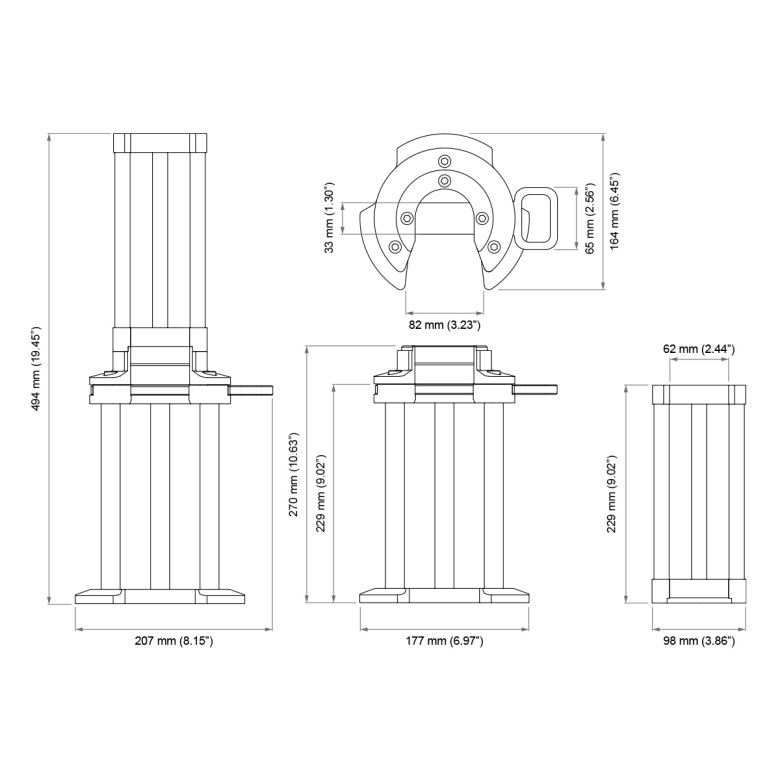

Elephant Foot Specifications

 Lift height added +229 mm (+9.06")

 Total lift height 480 mm (18.89")

 Total height 494 mm (19.45")

 Width 207 mm (8.15")

 Weight 2787 g (6.14 lb)

 Compatibility Air Jack 90 Competition 590-01-201

 For motorsports use YES, for motorsports use only

 Quantity 1 pcs *

 * Only for use with 3pcs and 4pcs air jack kits, you need the same amount of elephant feet as air jacks.

Air Jack 90 Competition Elephant Foot includes:

1 x Elephant foot bottom part

1 x Elephant foot safety prop

1 x Product manual

SPECIFICATIONS

Elephant Foot Specifications

For more information about specifications, view the product manual.

 Lift height added +229 mm (+9.06")

 Total lift height 480 mm (18.89")

 Total height 494 mm (19.45")

 Width 207 mm (8.15")

 Weight 2787 g (6.14 lb)

 Compatibility Air Jack 90 Competition

 For motorsports use YES, for motorsports use only

 Quantity 1 pcs *

 * Only for use with 3pcs and 4pcs air jack kits, you need the same amount of elephant feet as air jacks.

 Air Jack 90 Competition Elephant Foot includes:

1 x Elephant foot bottom part

1 x Elephant foot safety prop

1 x Product manual
