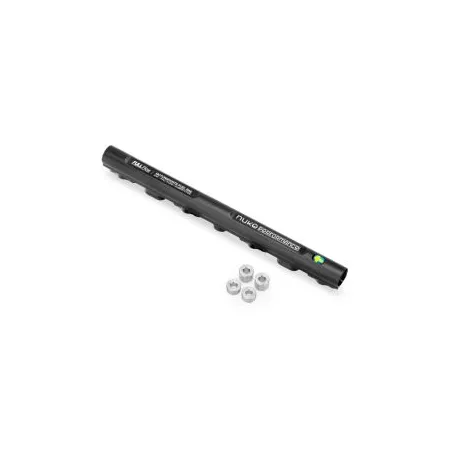

Nuke Performance Fuel Rail for Audi VW 4Cyl 1.8T 20V

Nuke Performance fuel rail for the Audi & VW 4cyl 1.8t 20V engines, oversized internals, lightweight design, and equipped with our unique injector safety clips.

The Audi & VW 4cyl 1.8t 20V fuel rail is delivered with brackets for the Audi & VW 4cyl 1.8t 20V engines and allows you to go with AN fuel lines and aftermarket injectors for your Audi or Volkswagen engine.

• Lightweight fuel rail that fits Audi & VW 1.8t 20V intakes
• To be used with Bosch EV14S type injectors

• Included adapters to accommodate different intakes
• AN-8 ORB threads in both ends enable a high fuel flow
• Delivered with brackets for easy mount to VW and Audi intakes
• AN-6 ORB side outlet/inlet for optional applications
• Safe for all types of fuels, including alcoholic fuels such as E85

The Nuke Performance's newest generation of fuel rails grants an easy fit to your engine with an extremely lightweight design. It uses the unique injector safety clips that fuel rails from Nuke Performance have become famous for, which grants a leakproof seal even during a crash where the fuel rail would get torn out of the intake manifold.

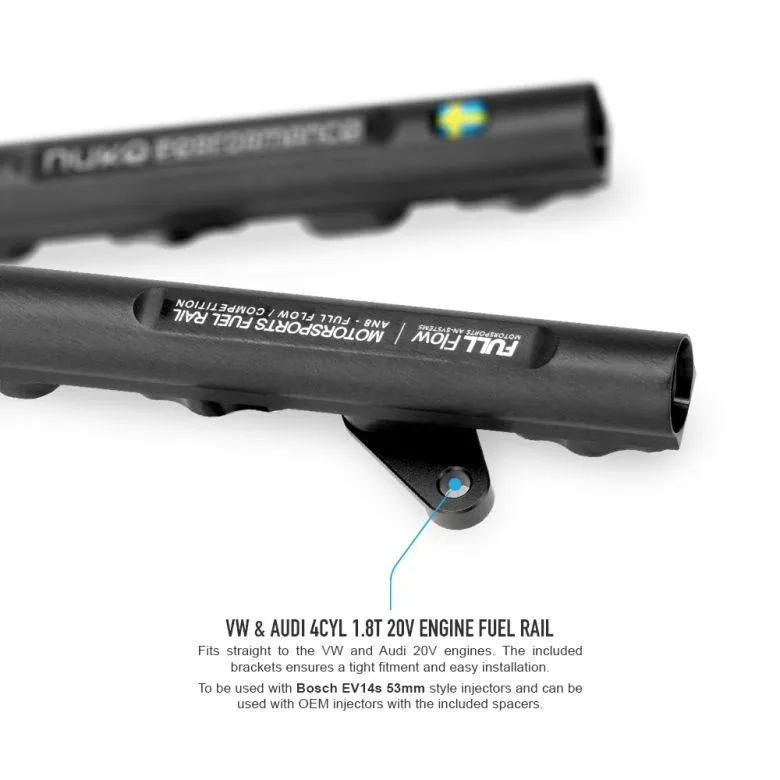

Perfect fitment for the Audi & VW 4cyl 1.8t 20V engines, delivered with the needed hardware to mount to the intake.
The Nuke Performance Audi & VW 4cyl 1.8t 20V fuel rail is delivered with brackets for the popular 1.8t 20V engines used by Audi and Volkswagen.

• Audi A3 1.8t 20v (MK1-8L) 1996-2003
• Audi A4 1.8t 20v (B6) 2002-2005
• Audi A6 1.8t 20v (C5) 1998-2004
• Audi A6 Allroad 1.8t 20v (C5) 1998-2004
• Audi S3 1.8t 20v (MK1-8L) 1996-2003
• Audi TT 1.8t 20v (MK1-8N) 2000-2006
• Volkswagen Beetle 1.8t 20v (1C-9C-1Y) 1998-2011
• Volkswagen Golf 1.8t 20v (MK4) 1999-2005
• Volkswagen Golf GTI 1.8t 20v (MK4) 1999-2005
• Volkswagen Jetta / Jetta GLI 1.8t 20v (MK4) 1999-2005
• Volkswagen Passat 1.8t 20v (B5-B5.5) 1998-2005

Please be aware that this fuel rail is only compatible with Audi and Volkswagen's 20v 1.8t engine. This version will work only with 14mm injectors, such as Bosch EV14S injectors.

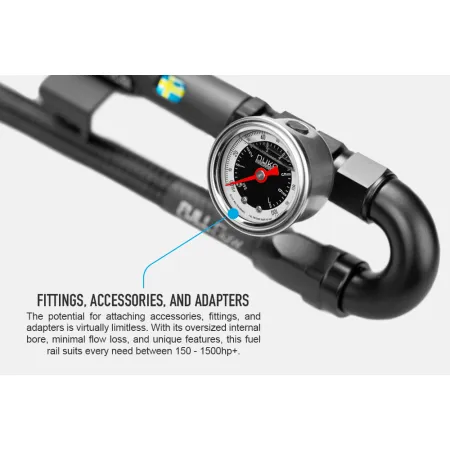

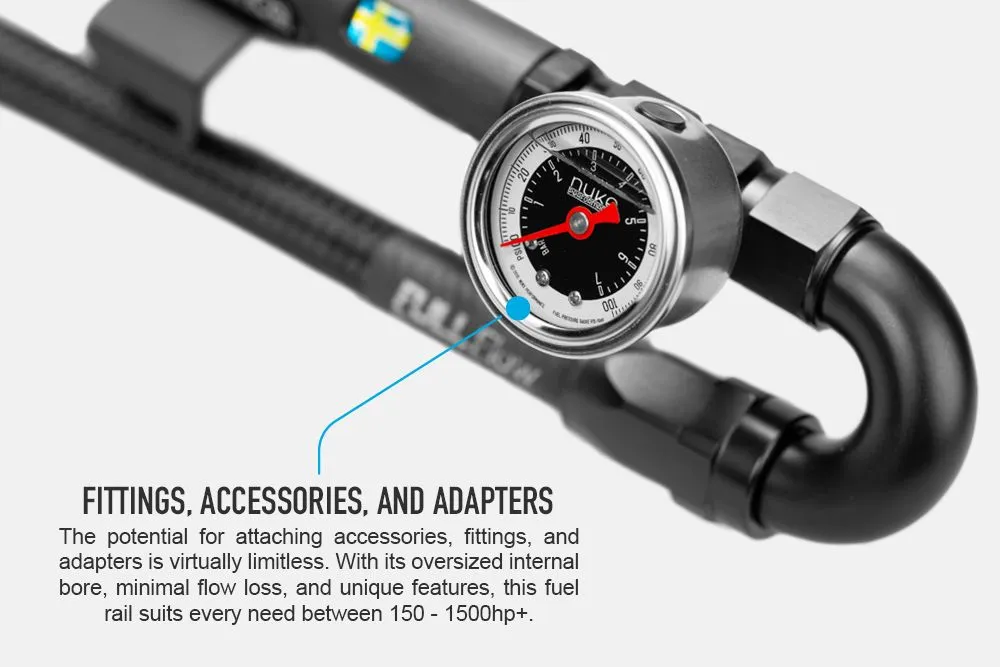

AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters to choose from.

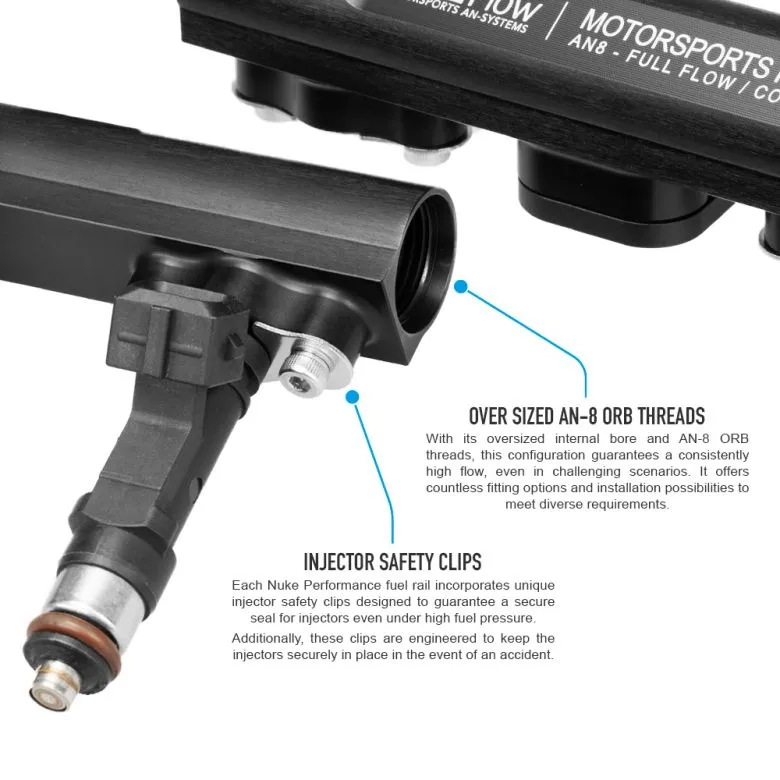

The fuel rail uses AN-8 ORB threaded fittings for each end and offers an additional side port with AN-6 ORB thread. We provide various fittings and our low-profile full-flow banjo fittings for a space-efficient installation.

AN-8 ORB main ports and AN-6 ORB side port

The fuel rail is delivered with two AN-6 ORB Plugs for the side port but the main port fittings are sold as accessories.

• AN-8 ORB to AN-6 Male Part # : 700-04-104
• AN-8 ORB to AN-8 Male Part # : 700-04-105
• AN-8 ORB to AN-10 Male Part # : 700-04-106
• AN-8 ORB to AN-6 Male Full Flow Banjo Part # : 710-01-105
• AN-8 ORB to AN-8 Male Full Flow Banjo Part # : 710-01-106
• AN-8 ORB to AN-10 Male Full Flow Banjo Part # : 710-01-107
• AN-8 ORB Plug Part # : 700-04-116
• AN-8 ORB to 1/8 NPT Female Adapter Part # : 700-04-129

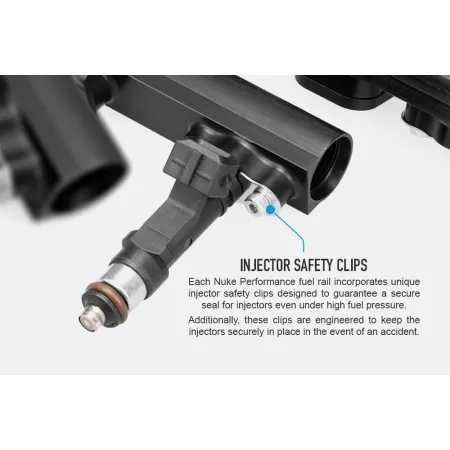

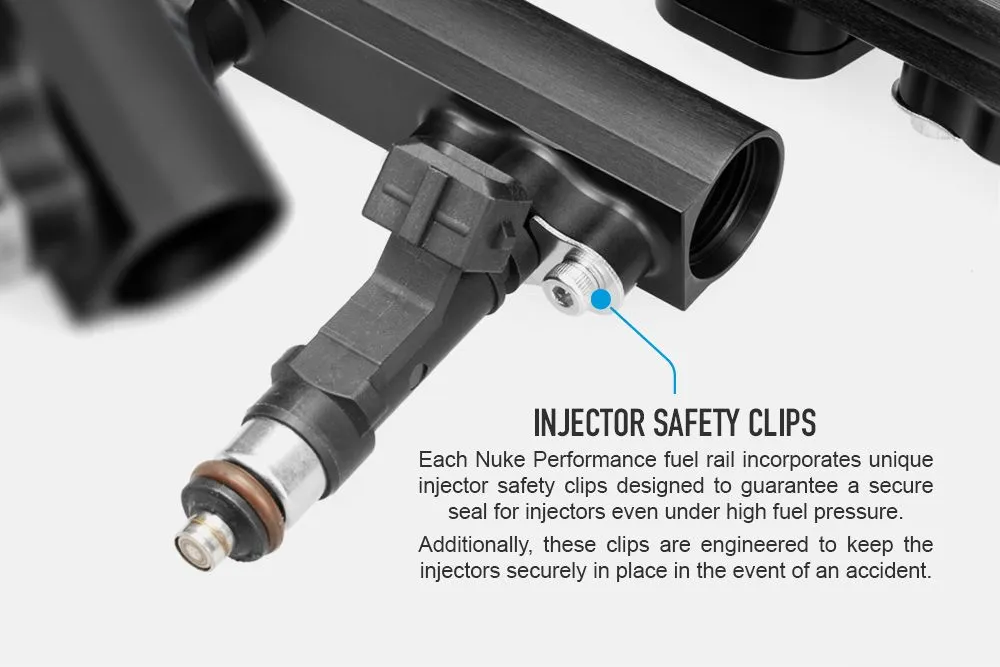

All Nuke Performance fuel rails use unique Injector Safety Clips that ensure a perfect seal under all conditions.
One distinctive feature of Nuke Performance is its use of injector safety clips, designed to uphold a flawless seal for injectors even under the strain of extreme fuel pressure.

Ensures a safe and secure seal even during extreme fuel demands

Whether during assembly, engine installation, or in the unfortunate event of an accident, these clips ensure the injectors remain securely attached to the rail. This design prevents any fuel spillage, even in scenarios where the fuel pump continues to run or there is residual pressure in the fuel system.

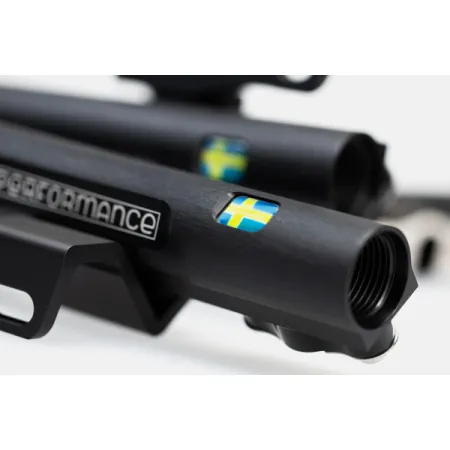

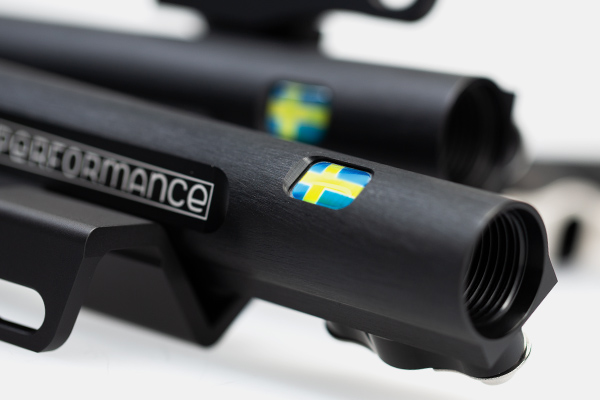

Designed, and developed in Sweden, guaranteeing the highest possible finish and quality.
Developed and designed in Sweden, in-house by Nuke Performance. The Audi & VW 4cyl 1.8t 20V fuel rail is of the highest possible quality and has the same hallmark as all the other lightweight motorsports products from Nuke Performance. The parts from Nuke Performance are co-developed with worldwide motorsports teams, and BMW experts, making sure that functionality, as well as the design, meets the absolute highest standards, or even creating a standard of its own.
Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

There is no substitute for the quality of Nuke Performance.

Nuke Performance Audi & VW 4cyl 1.8t 20V fuel rail Specifications:
For more information about specifications, view the product sheet.

* not included, make sure to select the needed fittings when placing an order
** old generation that did not include brackets for the 1.8t 20V engines

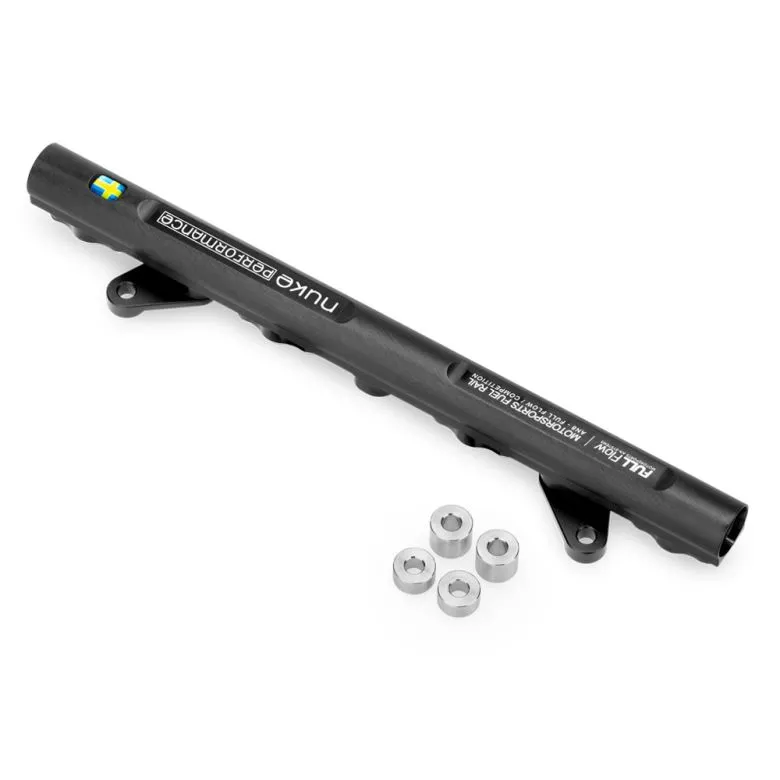

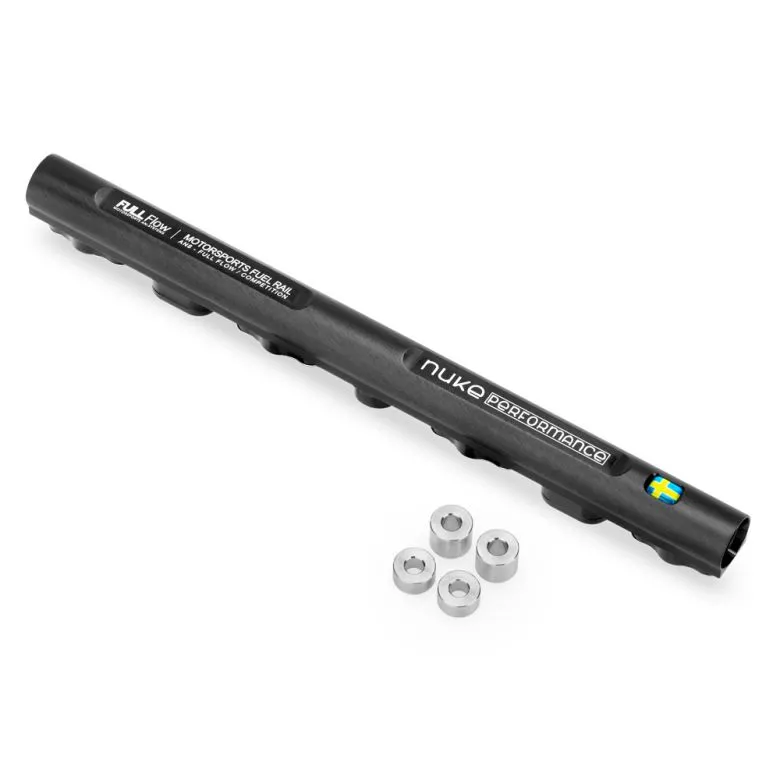

Nuke Performance Audi & VW 4cyl 1.8t 20V fuel rail includes:

• 1 x AN-8 ORB Full Flow fuel rail profile for Audi & VW 1.8t 20v engines
• 2 x Aluminum brackets for Audi & VW 1.8t 20v engines
• 1 x AN-6 ORB Plug
• 4 x Nuke Performance Injector safety clips
• 8 x MC6S M4x6mm stainless steel bolts
• 4 x K6S M6x10mm stainless steel bolts
• 2 x K6S M6x20mm stainless steel bolts *
• 2 x K6S M6x30mm stainless steel bolts *
• 2 x Stainless steel 8mm spacer *
• 2 x Stainless steel 13mm spacer *

* The different stainless steel spacers used depend on the engine version. Use the different bolts depending on the setup needed.
