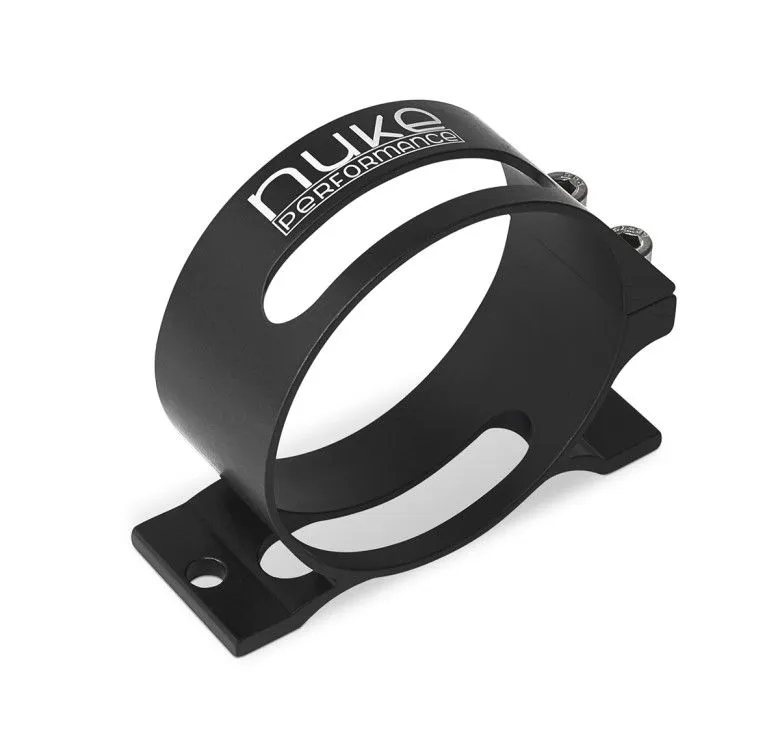

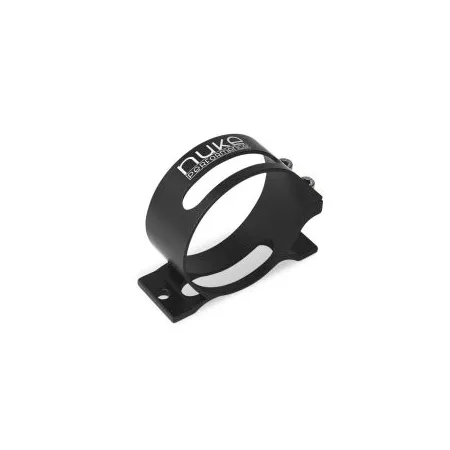

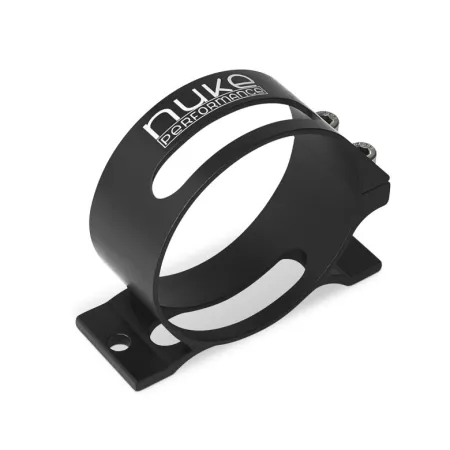

Nuke Performance Single Universal Bracket 65mm, with Bosch 044 insert

Universal Bracket with included inserts for Bosch, Deatschwerks and AEM fuel pumps. Additional inserts available for fuel filters, fuel pumps etc.

Extremely low weight and high durability, bracket for all kind of motorsport usage. Used when you need to rely on the installation when pushing your car beyond limits.

Included insert for :

- Bosch 044 fuel pump

- Deatschwerks 350il fuel pump

- AEM 380 LPH fuel pump

* 60 mm internal diameter

Additional inserts :

- Nuke Performance Fuel Filter Slim 10 / 100 micron (55 mm)

- Ti Automotive (Walbro) GSL 392 (43 mm)

The Nuke Performance universal bracket was designed specifically for motorsports, racing & high-performance vehicles.

Use with our 4P Fuel Log to make a unique and clean installation bringing two fuel lines into one.

The design and finish give a very clean and unique appearance. The bracket is anodized for a long-lasting, corrosion-free appearance. It is designed and manufactured to handle extreme amounts of power with the same hallmark as all of our performance products.

The bracket comes with one (single) or two (dual) plastic inserts for Bosch / DW / AEM fuel pumps, other inserts are available, etc. Ti Automotive (Walbro), Nuke Performance Filter Slim.

Technical information :

• CNC manufactured from aluminum alloy 6063.

• Anodized for lasting performance and finish.

• Inserts made from Plyoxymethylene "POM".

• Stainless steel bolts for long lasting finish and function.

• Laserengraved.

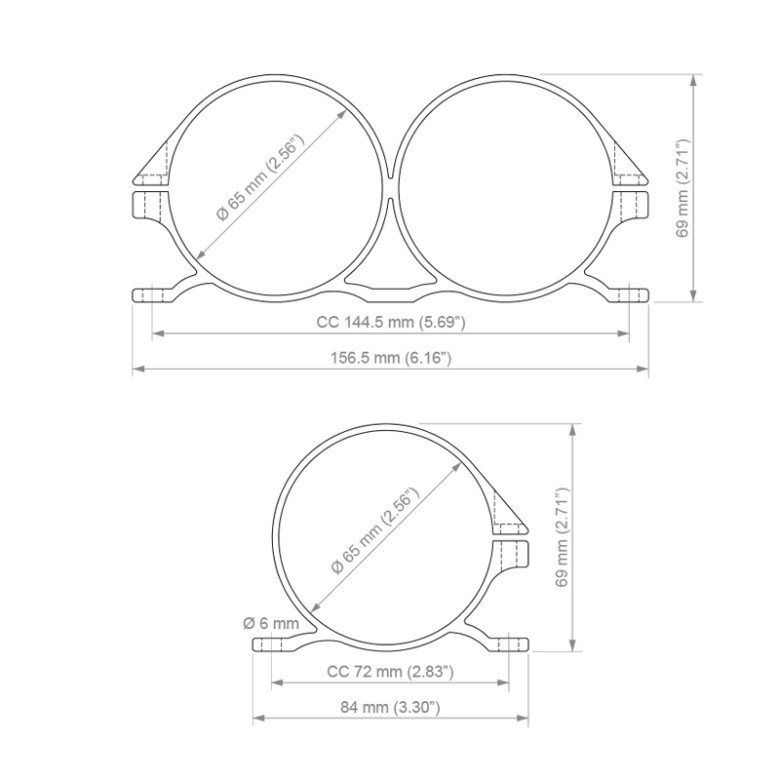

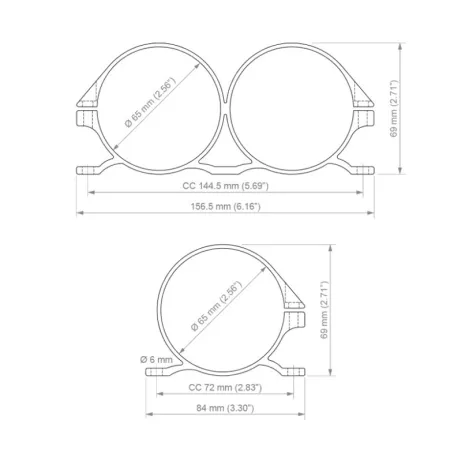

Measurements :

Dual version :

Hole : 65 mm

Height : 68 mm

Width : 156 mm

Depth : 30 mm

Weight : 106 g

Single version :

Hole : 65 mm

Height : 68 mm

Width : 83 mm

Depth : 30 mm

Weight : 35 g

* All measurements excluding the supplied or optional inserts.
