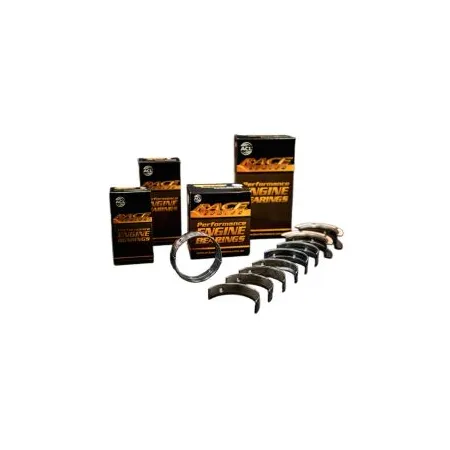

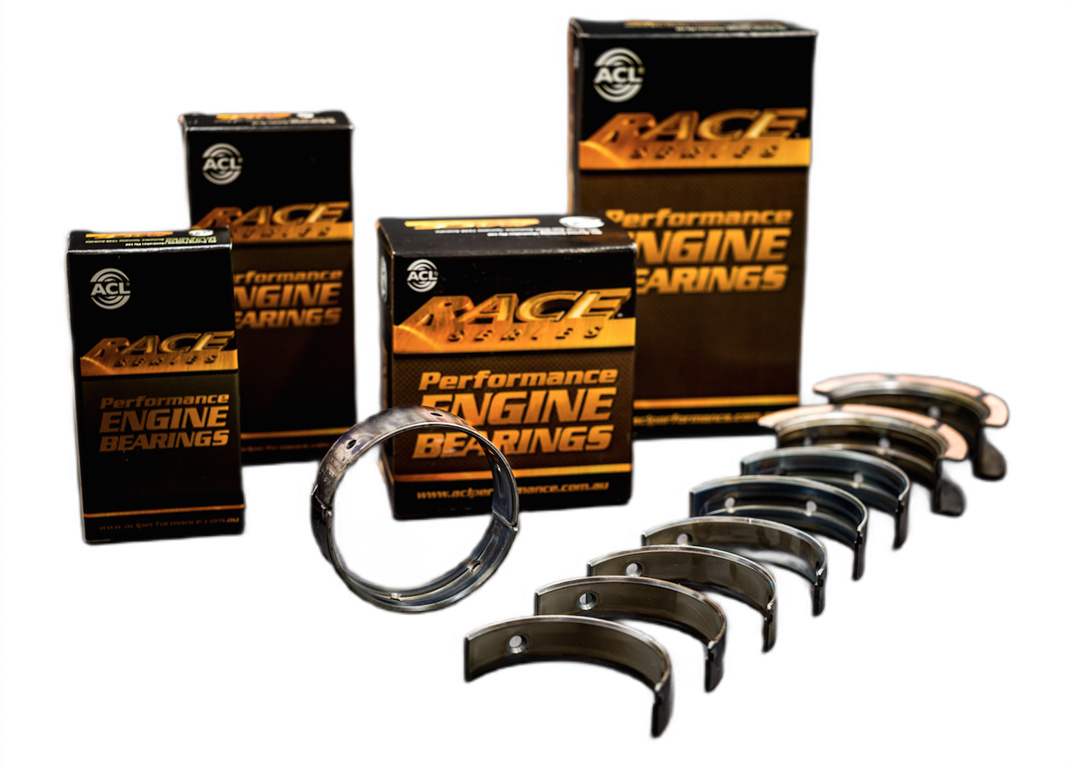

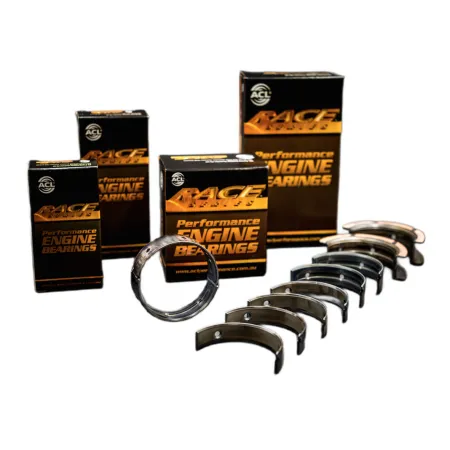

Panewki główne ACL Race 6M1581H-STD BMW 5 E60 / 5 E61 / 6 E63 / 6 E64 / M5 E60

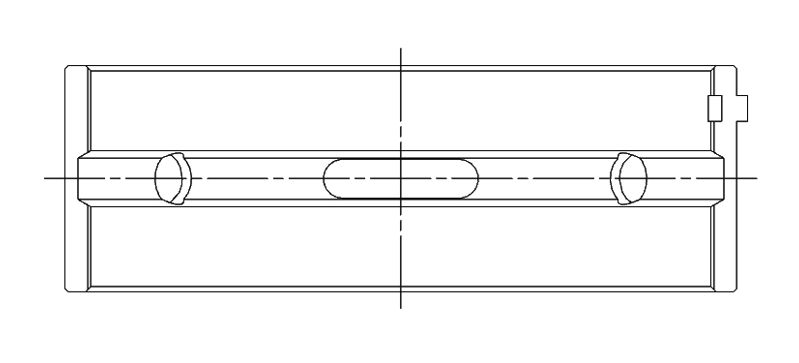

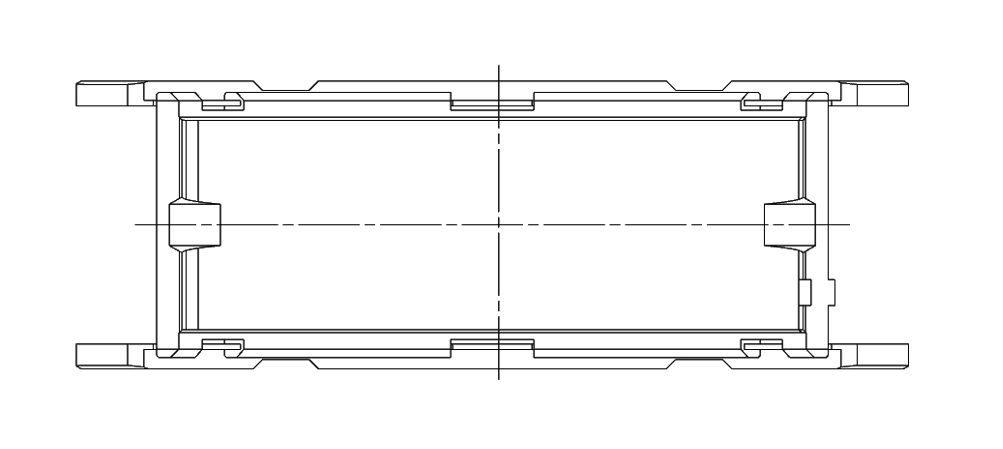

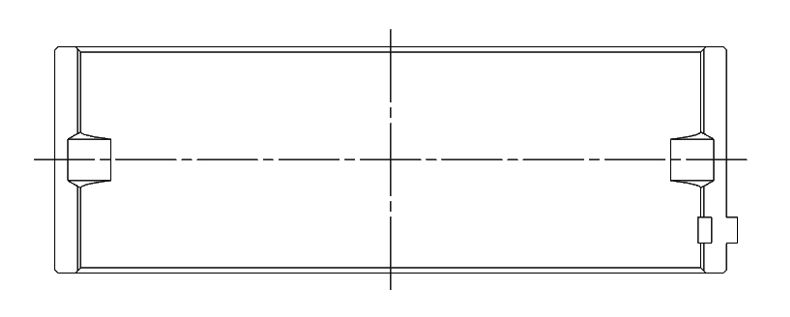

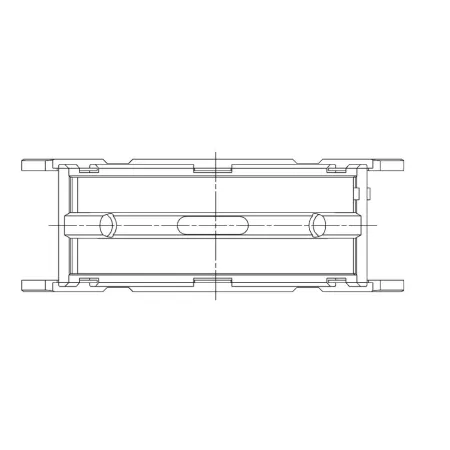

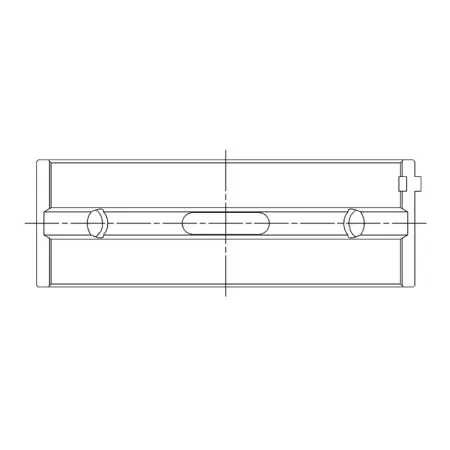

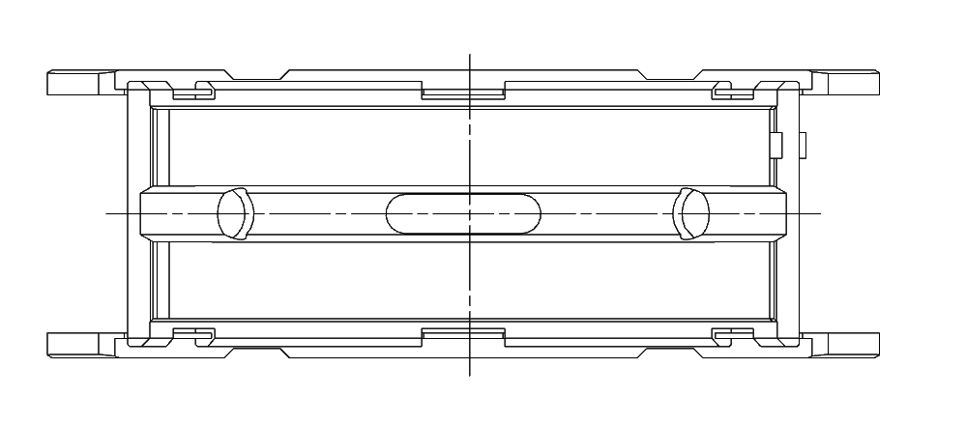

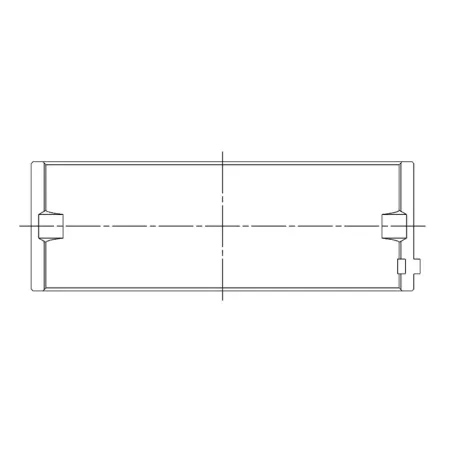

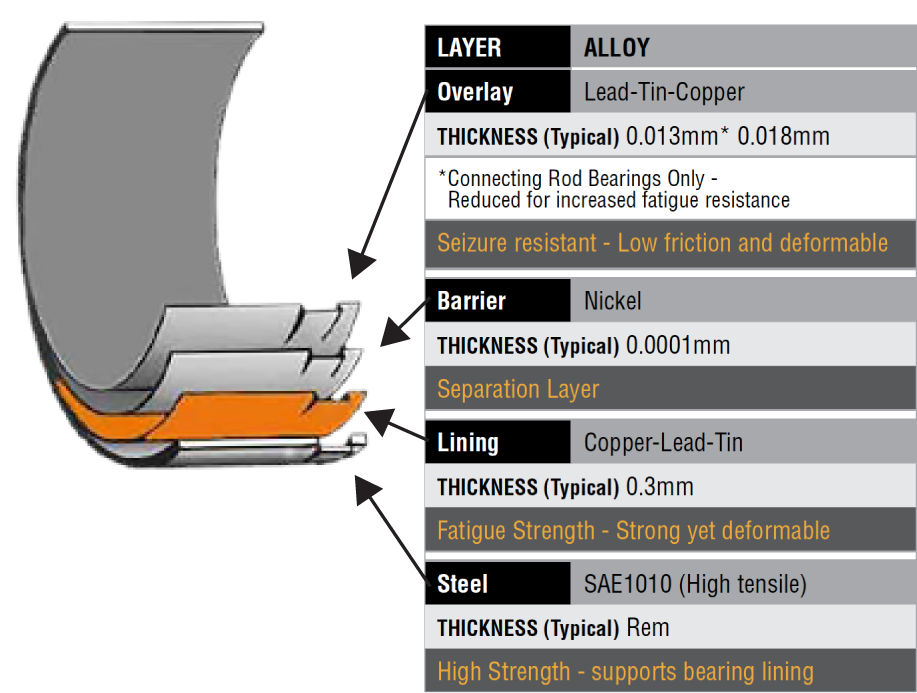

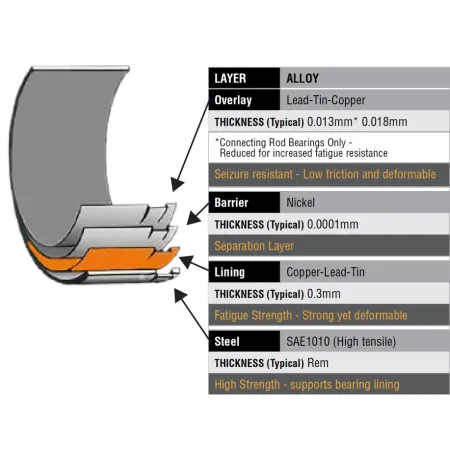

The unique combination of design, metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings. Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and feature: High strength overlay plate with reduced thickness for improved fatigue properties Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing. Increased crush for improved bearing retention Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing. Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films. 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings. Tight consistent wall tolerances to help you maintain consistent clearances. Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts. Technical Information: Tunnel (mm): 65.000/65.019 Shaft (mm): 59.971/59.990 Max. Wall (mm): 2.500 Max. Length (mm): 21.9 (1581H), 27.95mm (1582H(F)) Half Type: Upper and Lower Weight (KG): Upper and Lower Applications: Make Model Engine Variant BMW 5 (E60) S85B50A M5 BMW 5 Touring (E61) S85B50A M5 BMW 6 (E63) S85B50A M BMW 6 Convertible (E64) S85B50A M6 BMW M5 E60 S85B50 All
