Remove Mount Vented Female Dry Break 1.5in Elbow Radium Engineering

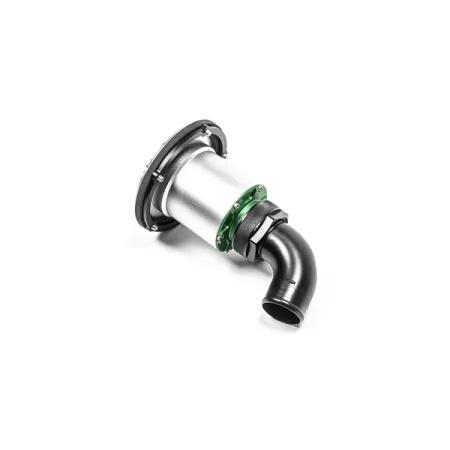

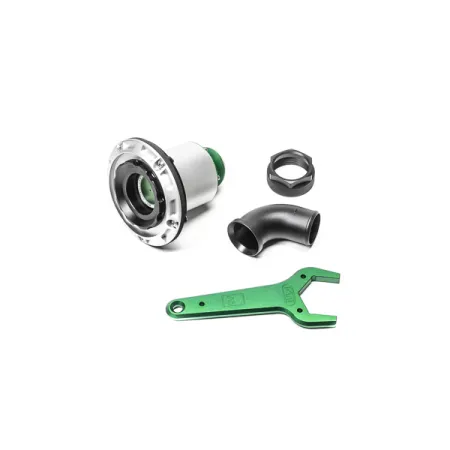

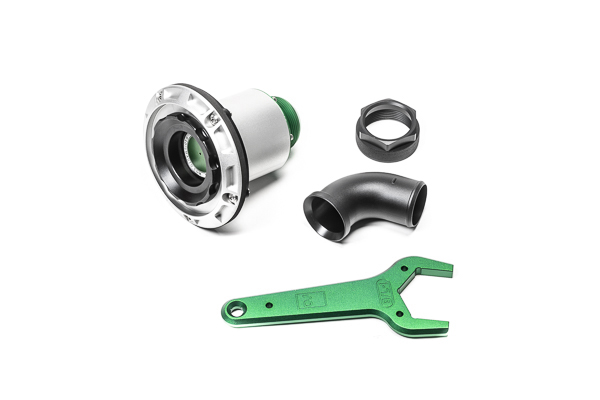

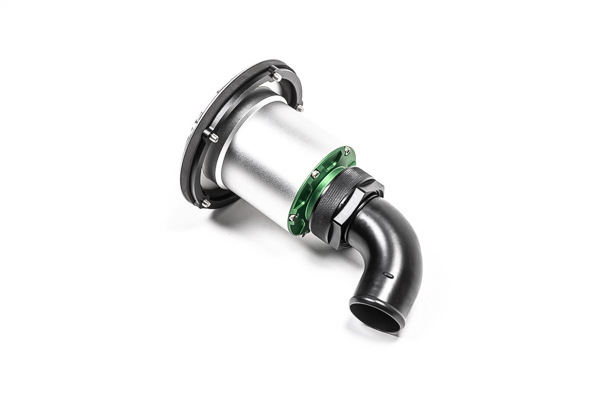

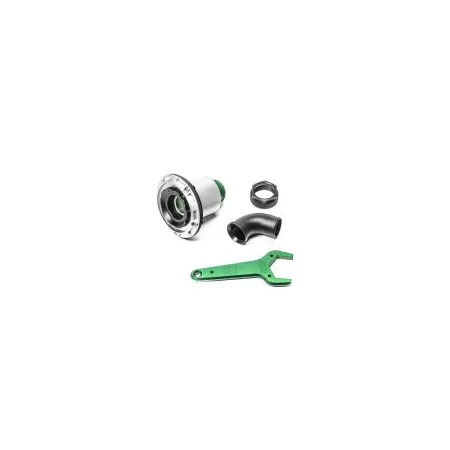

20-1104-V REMOTE MOUNT, VENTED FEMALE DRY BREAK, 1.5IN ELBOW Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes a 1.5in female dry break as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. Also, an aluminum 1-7/8" wrench and a 75 degree 24AN hose end with a 1.5in barb.  The vented fuel cap has roll-over protection in case the vehicle ever becomes inverted. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.). Specifications: Filler Hose Requirement: 1.5" Flange Outer Diameter: 4.75" Bolt Circle Diameter: 4.25" PCD Hose End Connection: 24AN Hose End Angle: 75 degree Mate: 20-0996 (or 20-0496) Dry Break, 1.5in, Male, PRV Instruction PDF
