Single Catch Can 8AN Kit Fluid Lock Radium Engineering

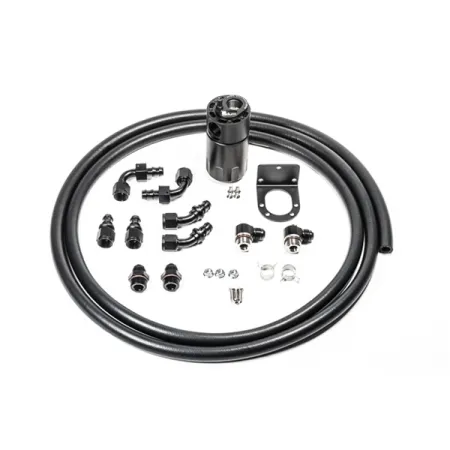

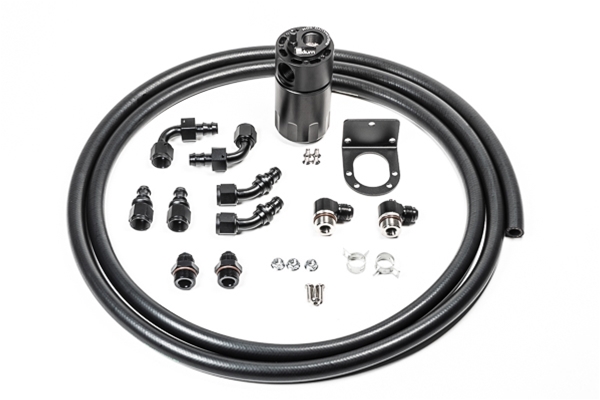

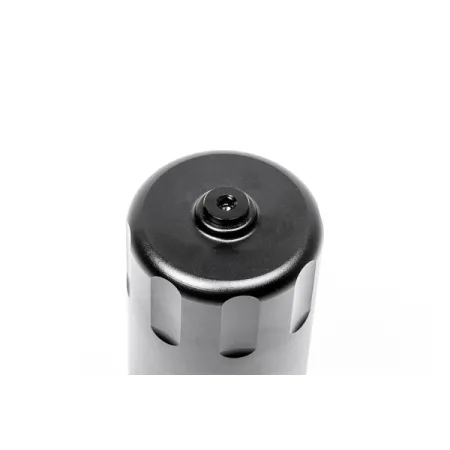

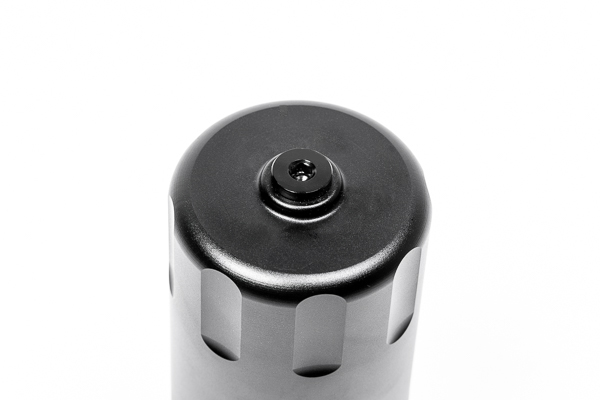

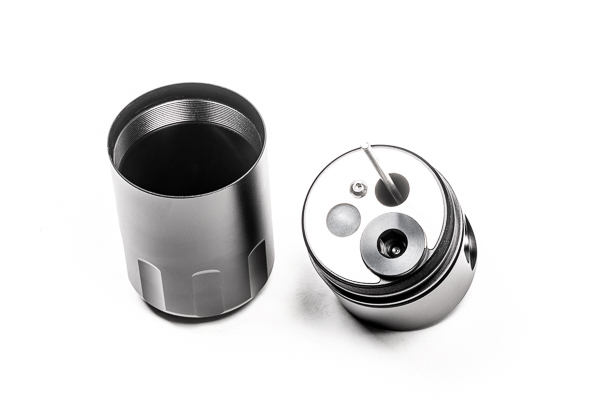

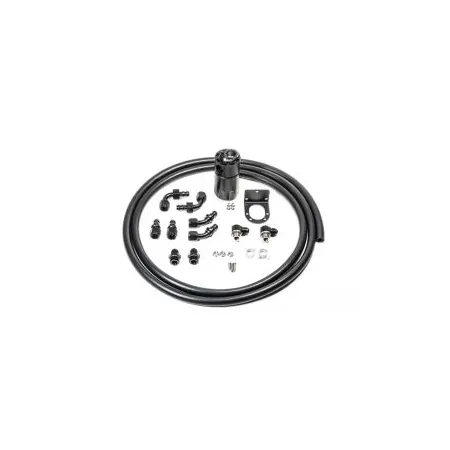

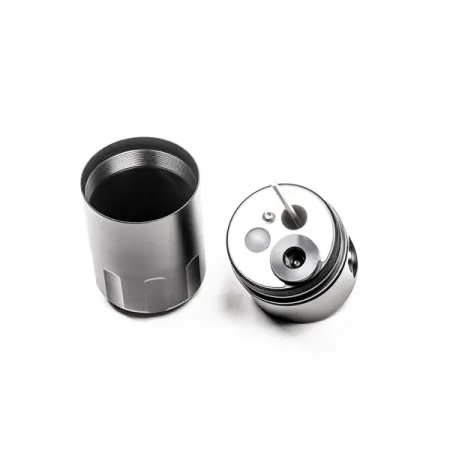

CATCH CAN KIT OVERVIEWThese universal oil catch can kits are designed for installation in cars that are experiencing oil build-up from the crankcase ventilation system. Radium Engineering offers bolt-in oil catch can kits for many different applications. For vehicles that are not covered, these universal kits are the next best option. Each kit includes Radium Engineering's patented universal Fluid Lock® oil catch can with universal mounting bracket, a length of PCV hose, a selection of adapter fittings and hose-ends.A variety of adapter fittings and hose-ends are provided so optimum hose routing can be achieved. Some fittings will not be used. Additional fittings can be purchased from Radium Engineering. RADIUM CATCH CAN FEATURESThe catch cans are machined from solid 6061 aluminum. The 2 halves and all ports are O-ring sealed, thus safe for pressurized (forced induction) applications. The main inlet and outlet ports are 10AN ORB (7/8"-14) female threads. An integrated dipstick unscrews for a quick way to check oil level.These catch cans feature advanced air/oil separation. As shown below, there is an integrated stainless steel baffle plate.The Radium-only Fluid Lock® mechanism keeps oil trapped in the catch can and prevents collected oil from "dumping" into the breather hoses when the catch can is full. RADIUM CATCH CAN SERVICINGThese catch cans feature Radium Engineering's patent pending Fluid Lock® technology. If the catch can fills up and is not emptied, an internal valve closes and eliminates the contaminants from exiting the catch can and entering the engine. Furthermore, it maintains normal venting through the catch can prohibiting engine damage.For draining, there are a couple options depending on the application. If there is space, the lower half of the body that holds all of the contaminants simply unscrews. However, if there is no room to remove the lower half of the catch can, there is a 4AN ORB (7/16"-20) female threaded drain port. A 4AN ORB plug is provided. RADIUM CATCH CAN DIMENSIONS-Capacity: 7 fluid ounces-Height (without fittings): 4.9 inches-Outside Diameter: 2.45 inches 20-1806-FL SINGLE CATCH CAN, 6AN KIT, FLUID LOCKThis catch can kit is perfect for custom applications. It is designed for engines that use 3/8" (10mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering. INCLUDES1x Oil Catch Can, Fluid Lock2x 10AN ORB to 6AN Male Banjos2x 10AN ORB to 6AN Male Fittings2x 6AN PushLok, Straight Hose Ends2x 6AN PushLok, 45 Degree Hose Ends2x 6AN PushLok, 90 Degree Hose Ends2x Spring Clamps For 3/8" Hose1x Aluminum Mounting Bracket3x Stainless M6x1mm Bolts3x Flanged M6x1mm Nuts 1x Service Interval Decal10ft PCV Hose, 3/8" ID 20-1808-FL SINGLE CATCH CAN, 8AN KIT, FLUID LOCKThis catch can kit is perfect for custom applications. It is designed for engines that use 1/2" (13mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering. INCLUDES1x Oil Catch Can, Fluid Lock2x 10AN ORB to 8AN Male Banjos2x 10AN ORB to 8AN Male Fittings2x 8AN PushLok, Straight Hose Ends2x 8AN PushLok, 45 Degree Hose Ends2x 8AN PushLok, 90 Degree Hose Ends2x Spring Clamps For 1/2" Hose1x Aluminum Mounting Bracket3x Stainless M6x1mm Bolts3x Flanged M6x1mm Nuts 1x Service Interval Decal10ft PCV Hose, 1/2" ID 20-1810-FL SINGLE CATCH CAN, 10AN KIT, FLUID LOCKThis catch can kit is perfect for custom applications. It is designed for engines that use 5/8" (16mm) lines for the crankcase ventilation system. It is recommended to measure the engine vent lines first prior to ordering. INCLUDES1x Oil Catch Can, Fluid Lock2x 10AN ORB to 10AN Male Banjos2x 10AN ORB to 10AN Male Fittings2x 10AN PushLok, Straight Hose Ends2x 10AN PushLok, 60 Degree Hose Ends2x 10AN PushLok, 90 Degree Hose Ends2x Spring Clamps For 5/8" Hose1x Aluminum Mounting Bracket3x Stainless M6x1mm Bolts3x Flanged M6x1mm Nuts 1x Service Interval Decal10ft PCV Hose, 5/8" ID Instruction PDF
