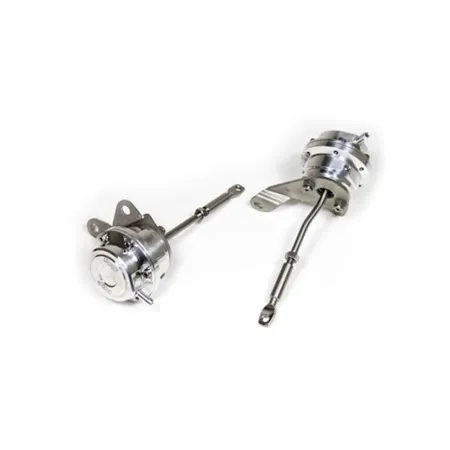

Turbo Actuator for Volvo T5 Applications

This actuator is suitable for a number of engine installations in the 850,S60,S70,V70,C70 range. There are two variations of this actuator available, FMACT5S – with a straight connecting rod, and FMACT5B where the rod has an offset or bend. Please see the fitment lists below to determine which version should fit your vehicle:

FMACT5S (Straight Rod) This is compatible with the models below, with the Bosch Motronic 4.3 / 4.4 ECU fitted as standard, as seen in models with an accelerator cable. The original actuator rod is straight and suitable for the Mitsubishi TD04HL straight flanged turbo. • 850 R 1997 - 1998 • 850 T-5 1997 - 1998 • 850 T5-R 1997 - 1998 • S70 T5 1997 – 1998 • V70 T5 1997 – 1998 • C70 T5 1997 - 1998

FMACT5B (Bent Rod) This is compatible with the models seen below with Bosch Motoronic 7 and Motronic 7S ECU fitted as standard, as seen in models without an accelerator cable (drive by wire / ETM). The original actuator rod is stepped and suitable for the Mitsubishi TD04HL angled flanged turbo type. • S70 1999 - 2000 • C70 (phase 1 and 2) 1999 - 2005 • V70 (phase 1 and 2) 1999 – 2004 • S60 (phase 2) 2000 – 2004

If you have a later K24 Turbo models (2004/2005/2006 and 2007) with 6 speed manual or automatic gearbox, please see Forge Motorsport part number FMACS60R.

Please select the actuator rod, straight or bent, and colour of spring in the options above.

Forge Motorsport were one of the first company’s in the world to design and manufacture the billet two-piece replacement aluminium turbo actuator. Originally for the Cosworth, Renault 5 GT turbo, and Lancia Integral turbos, we soon developed the largest and most diverse range of actuator replacements.

• Choice of spring pressures to suit your car
• Manufactured from 6026 grade aluminium
• Vehicle specific
• Turbo specific
• Built to order
• Machined and hand polished in the UK
• Choice of piston or diaphragm operation on most actuators
• Nomex reinforced flurosilicone diaphragms
• Laser cut stainless steel brackets (where applicable)
• Tuning and service kits available
• Made in England
• Lifetime warranty*

Please Note:

The pressure figures listed in the drop-down menu above are minimum regulated pressure figures. If you are unsure, please don't hesitate to call us on 01452 380999.

When you fit a Forge turbo actuator you will be able to fine tune and manage your specific boost requirements, this will allow for improved response and better control. This product
