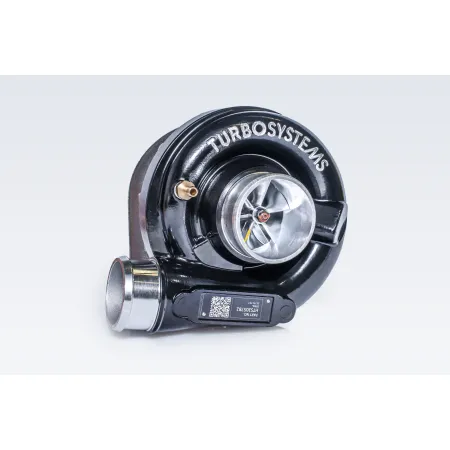

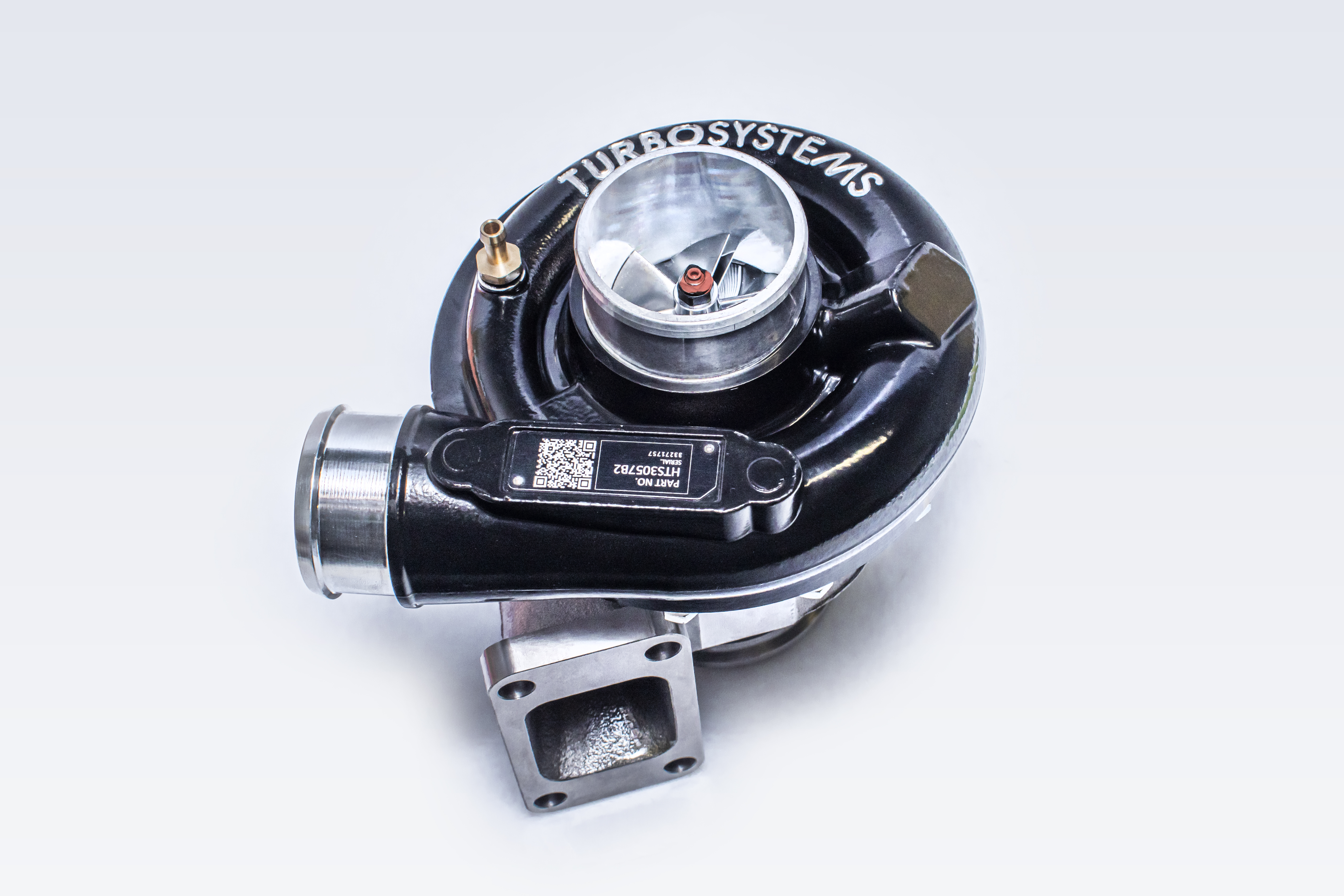

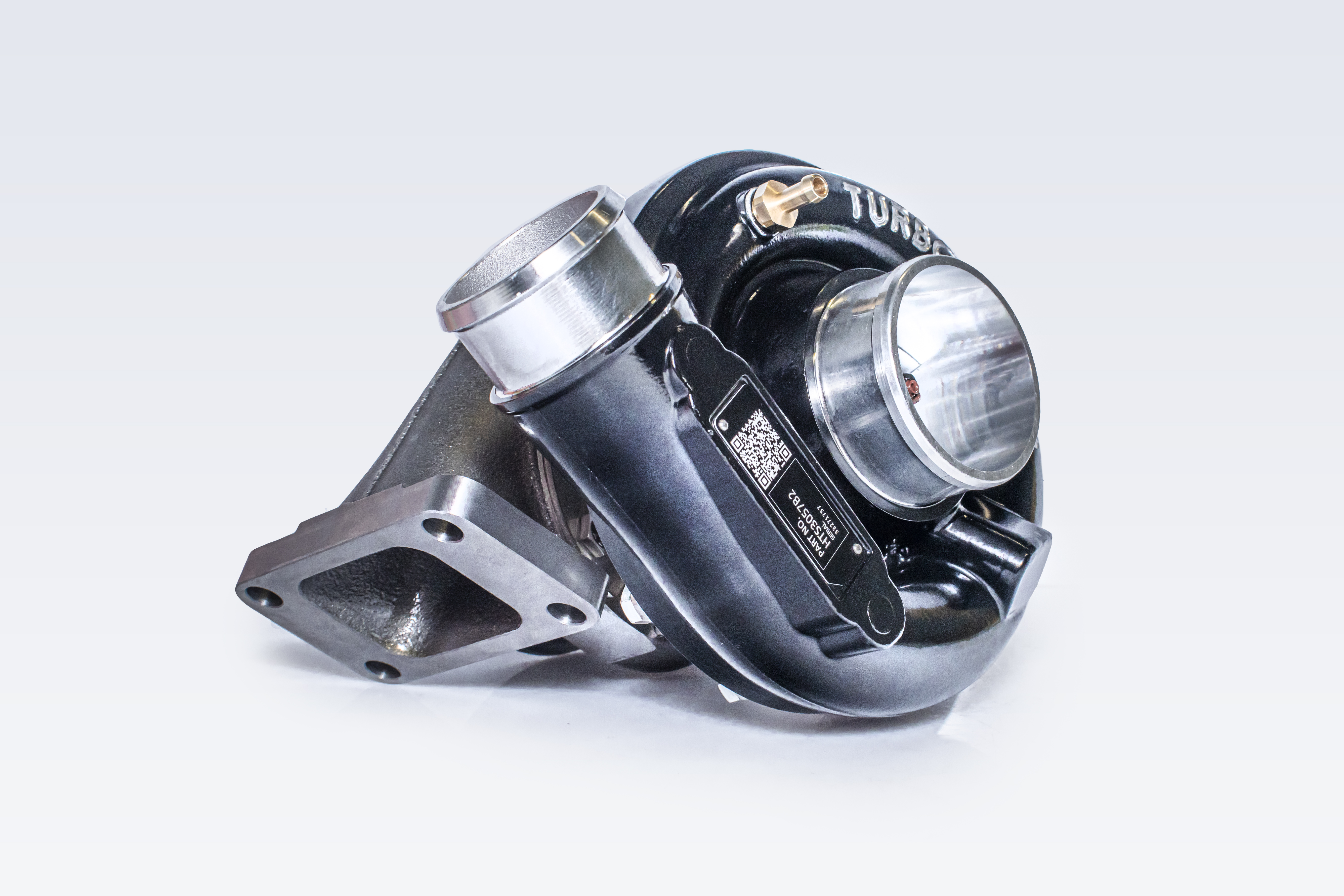

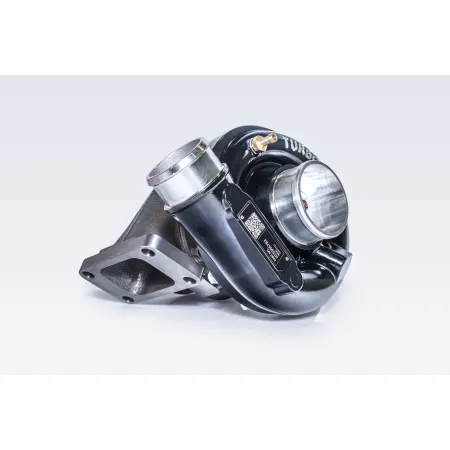

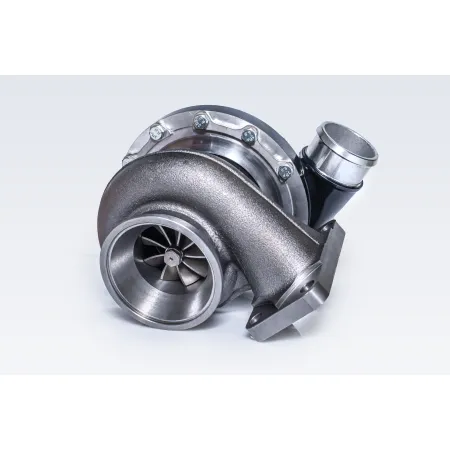

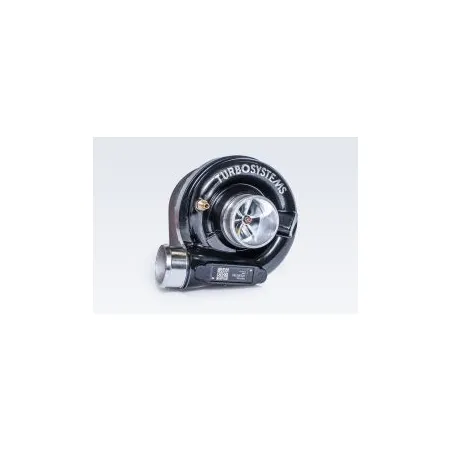

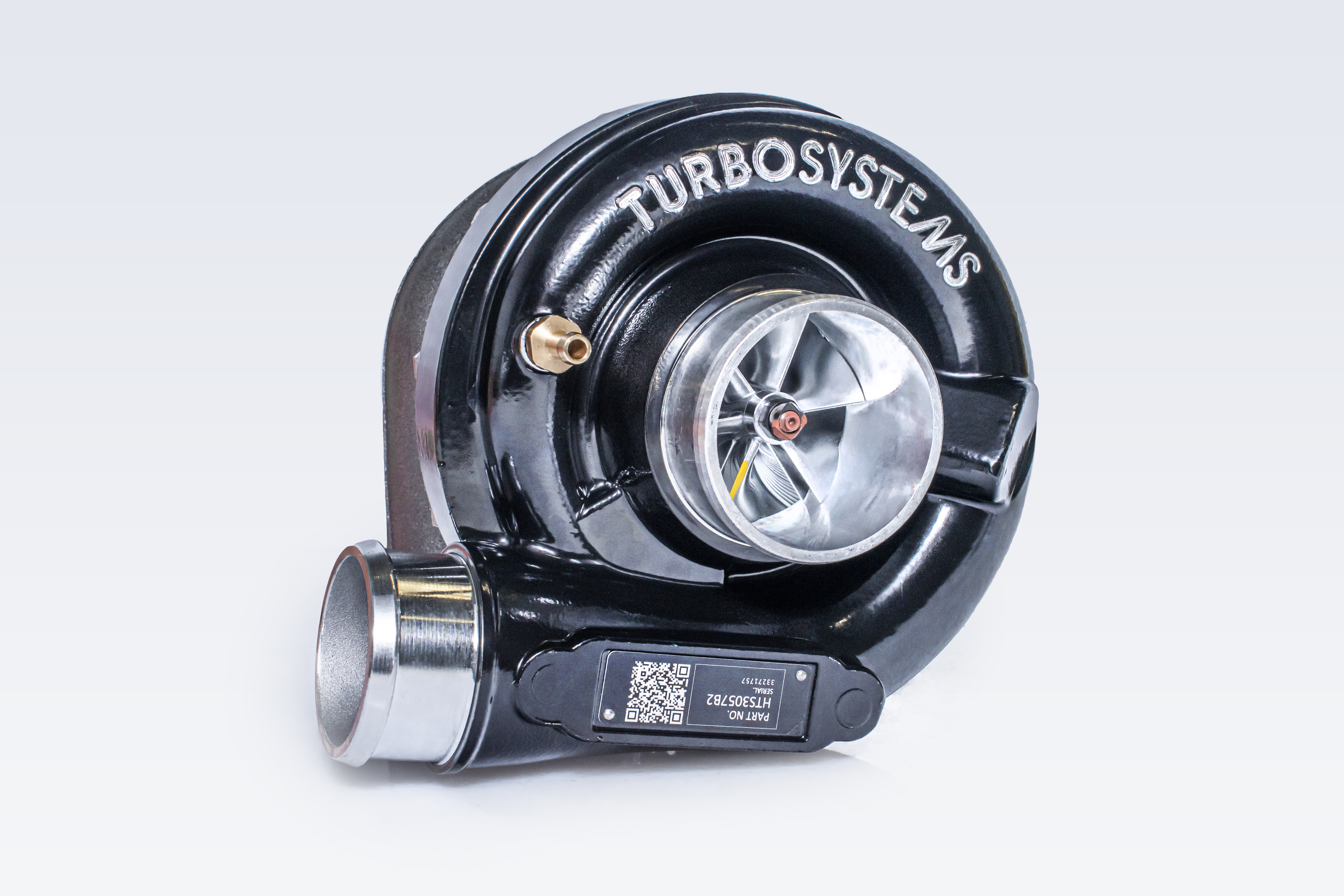

Turbocharger TurboSystems HTS3057B2

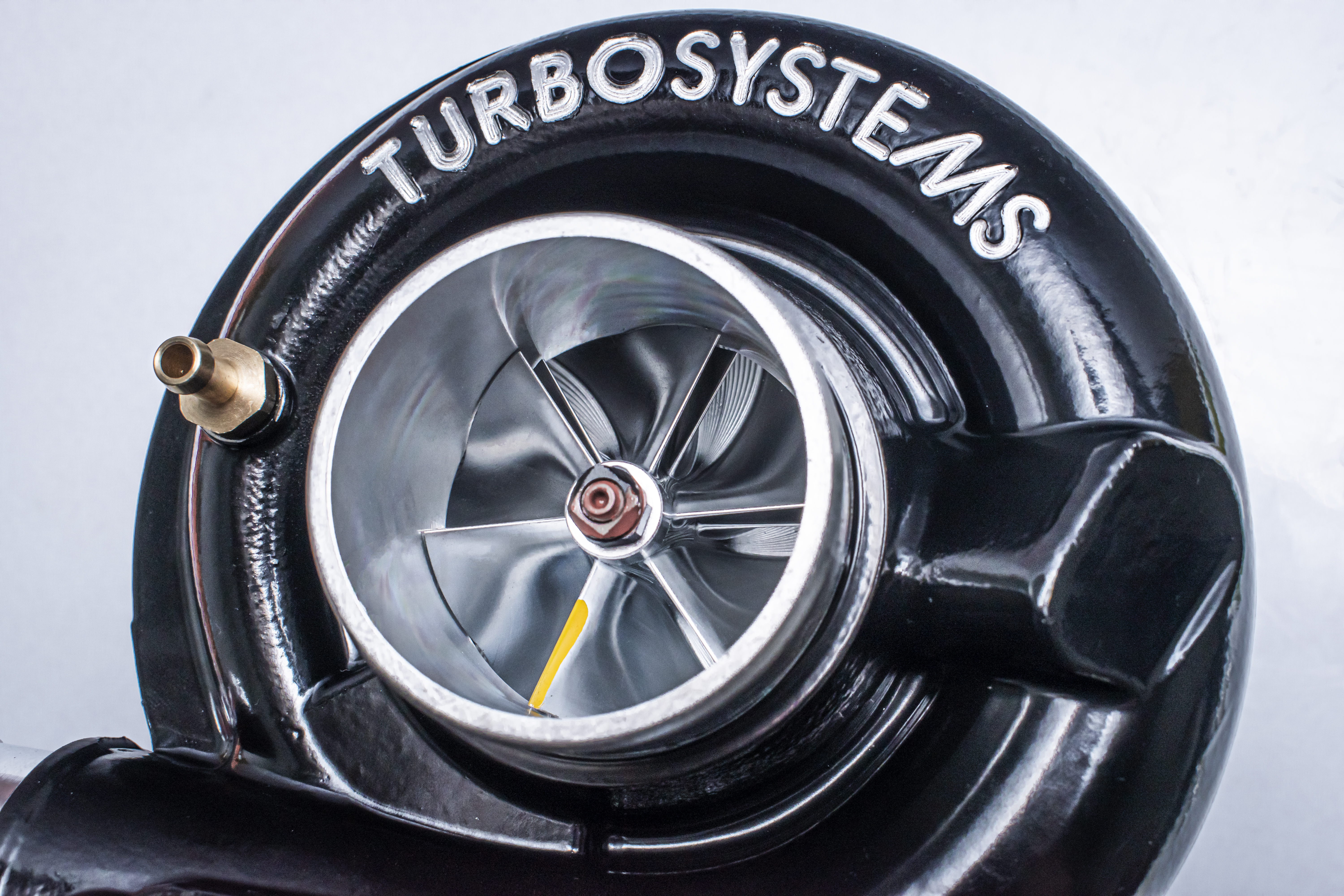

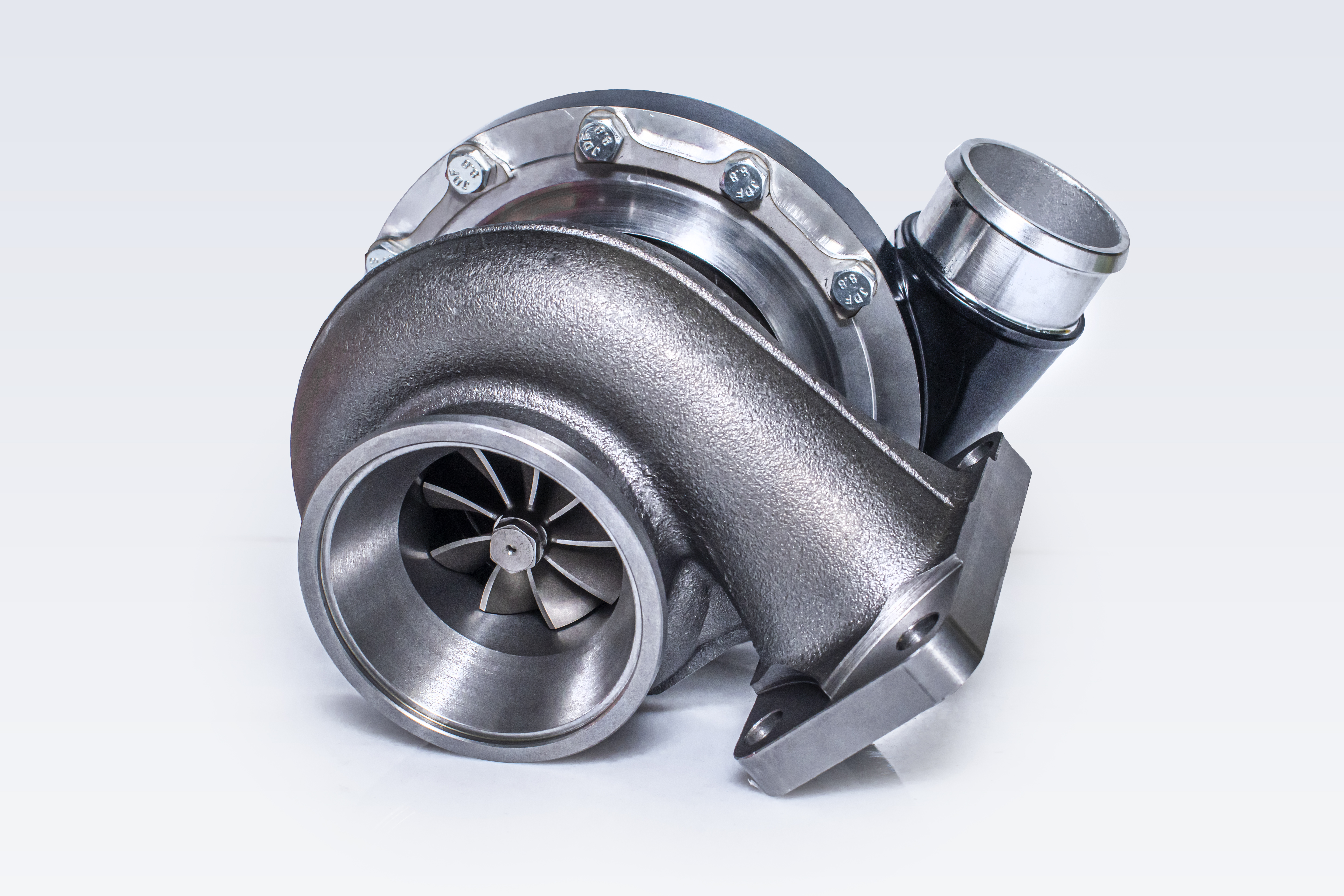

HTS version created for lower boosts and quicker spool. Recommended boost up to 1.5 - 1.7bar. High performance turbocharger designed for heavy loads and high temperature. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use. Power range:300-450 HP;   Compressor side: Compressor wheel:in-house made, reinforced 57/71 mm 6+6 blades machined from the solid aluminium; Intake:63mm (2,5"); Air outlet:51mm (2");   Core: Bearings: dual ceramic ball bearings; Cooling: water cooling with 2 x M14x1.5 ports; Lubrication: AN4 oil inlet with integrated oil restrictor;   Turbine side: Housing:single scroll, 10cm2 AR: 0.73; Turbine wheel:custom design 60/55mm 9 blades; Flange: T3 single scroll; Exhaust connection:3" V-band clamp; Included Vband clamp and Oil drain flange
