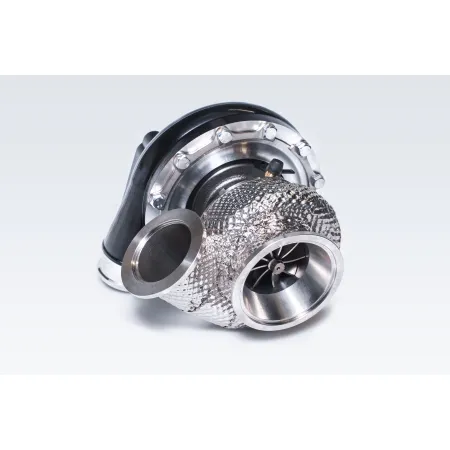

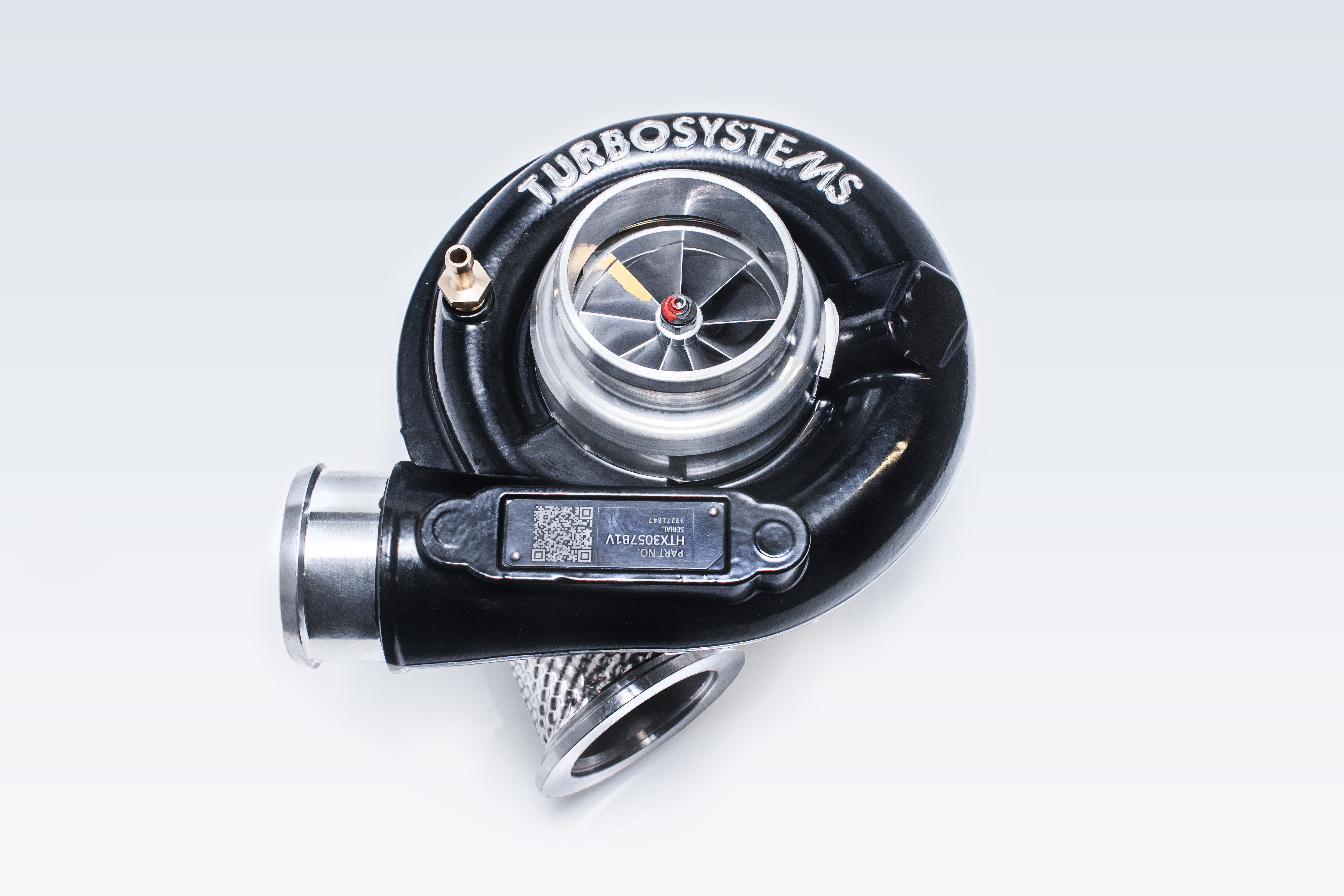

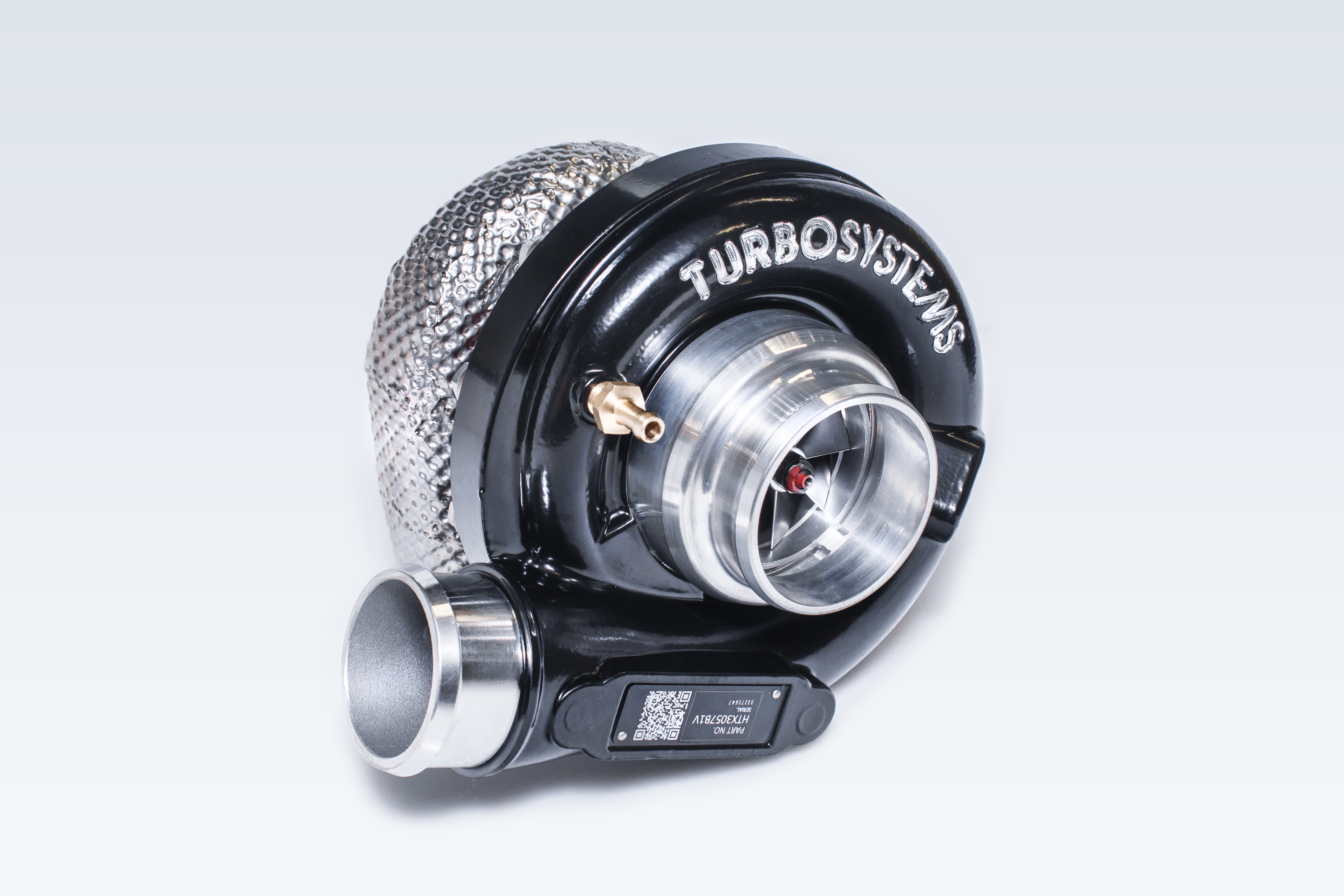

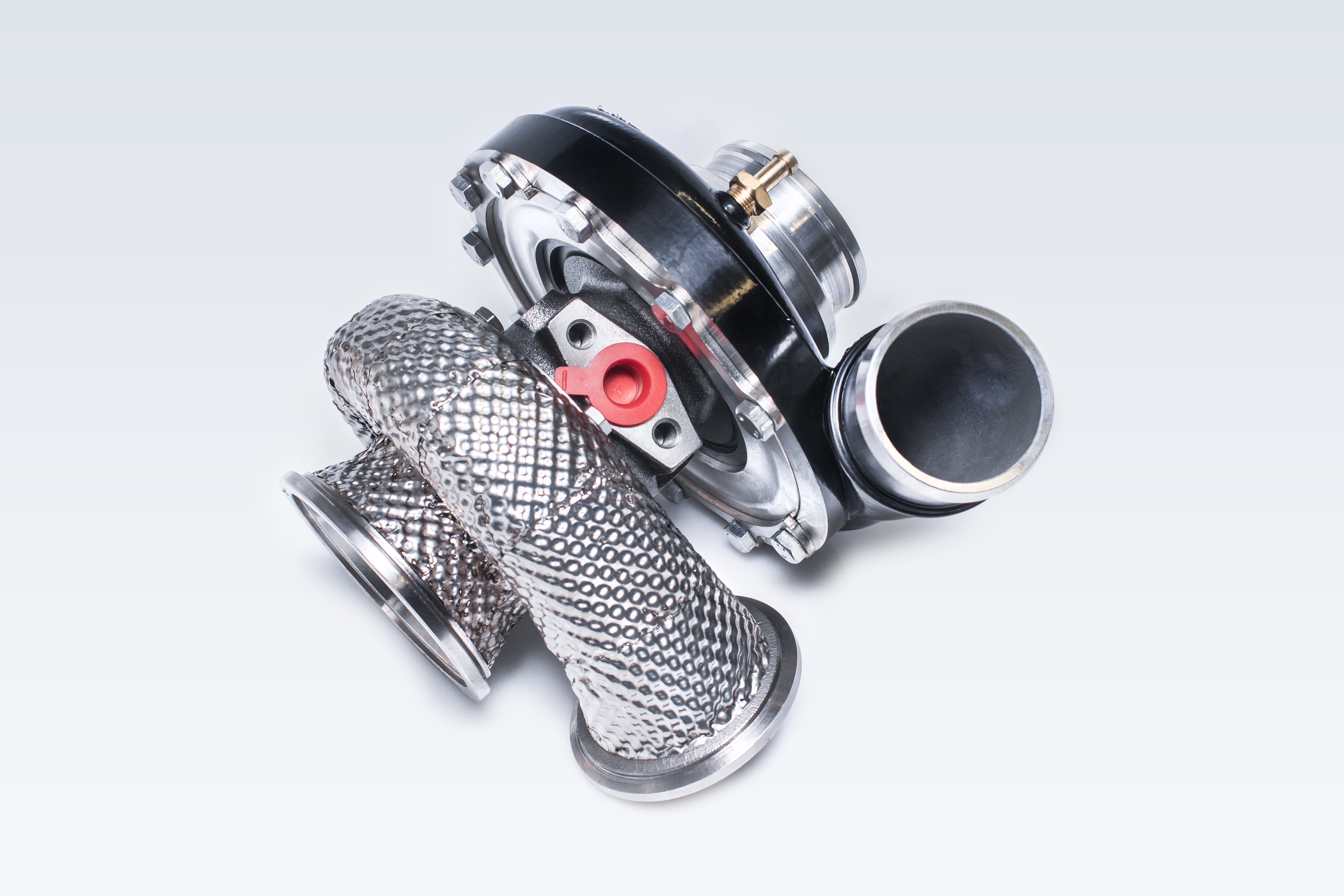

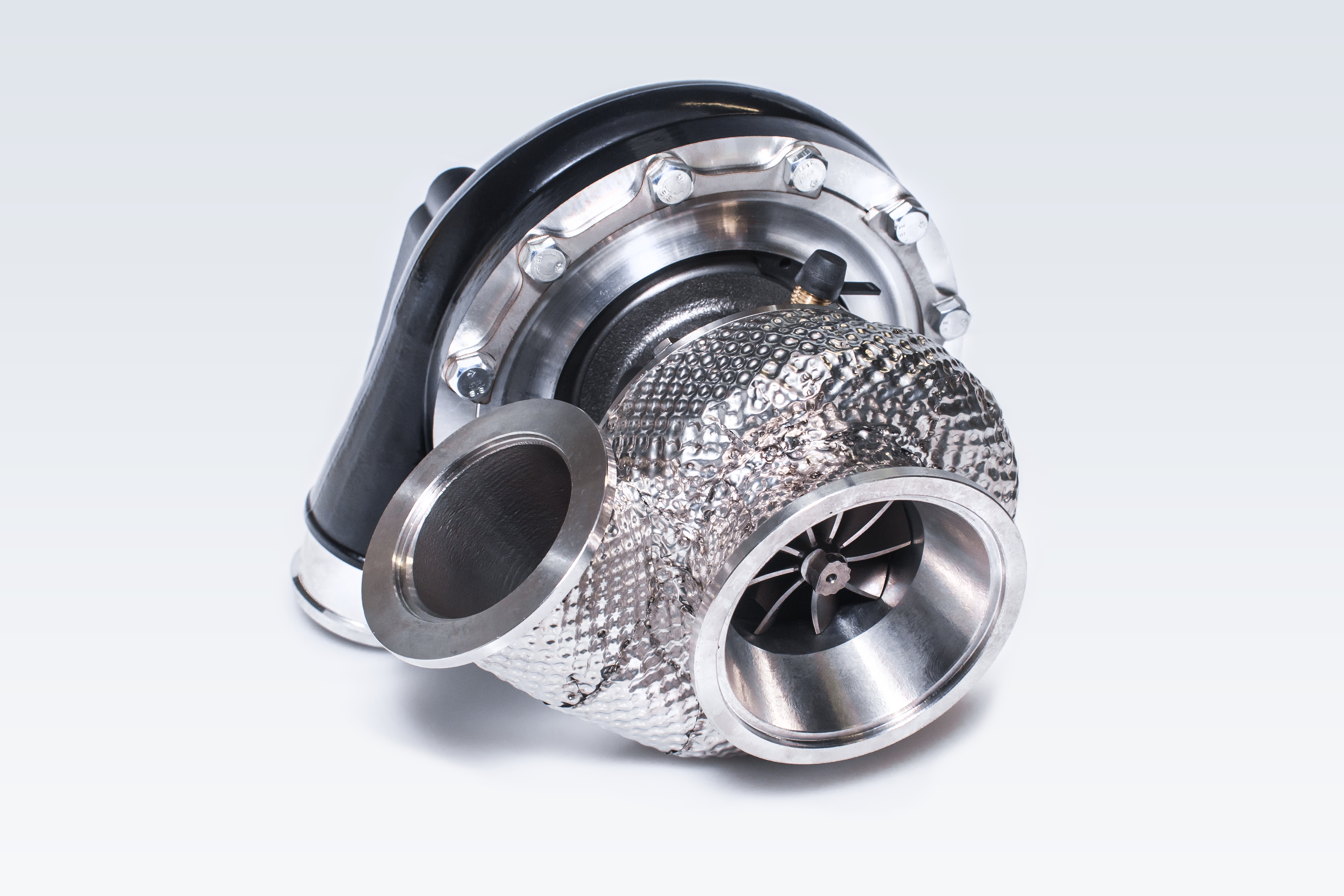

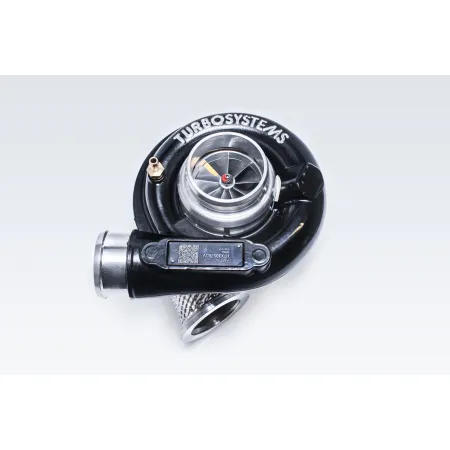

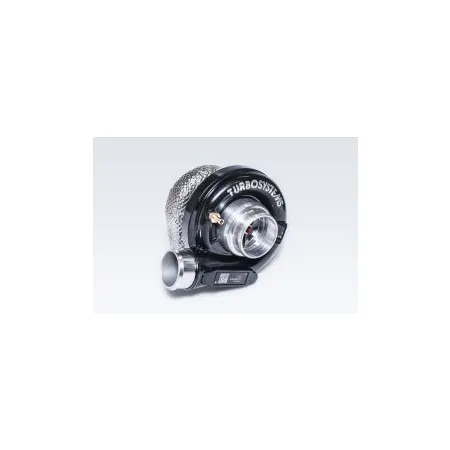

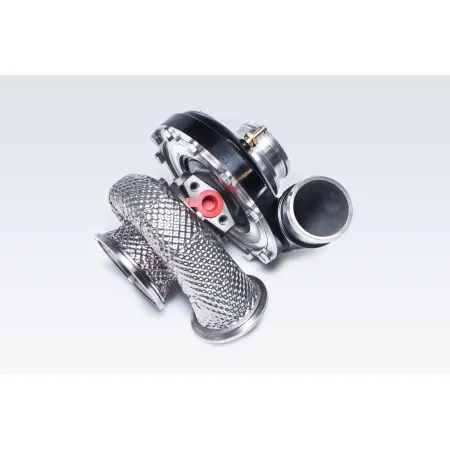

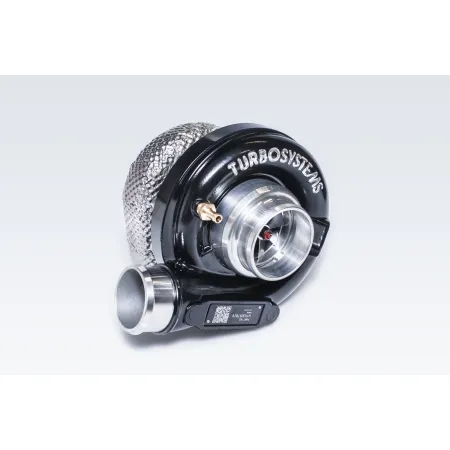

Turbocharger TurboSystems HTX3057B1V

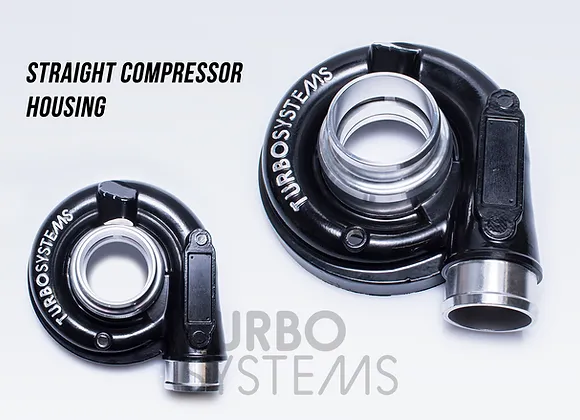

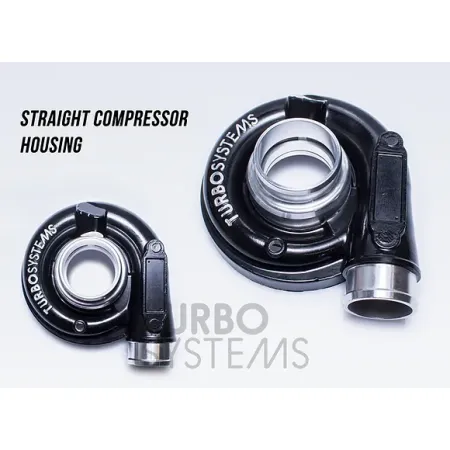

High performance turbocharger wtih 8cm2, 0.61AR single scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use.o Power range: 400-500 HP; This turbocharger comes with 2 V-band sets (for turbine flange and exhaust). Compressor side: Ported shroud compressor housing; Compressor wheel: in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium; Intake:  Straight compressor housing - 63mm; (2,5")Compressor housing with 90° elbow - 76mm (3"); Air outlet: 51mm (2"); Core: Bearings: dual ceramic ball bearings; Cooling: water cooling with 2 x M14x1.5 ports; Lubrication: AN4 oil inlet with integrated oil restrictor; Turbine side: Housing: single scroll , 8cm2 AR: 0.61; Turbine wheel: custom design 60/55mm 9 blades; Flange: 2.25" V-band single scroll; Exhaust connection: 3" V-band clamp; Included Oil drain flange
