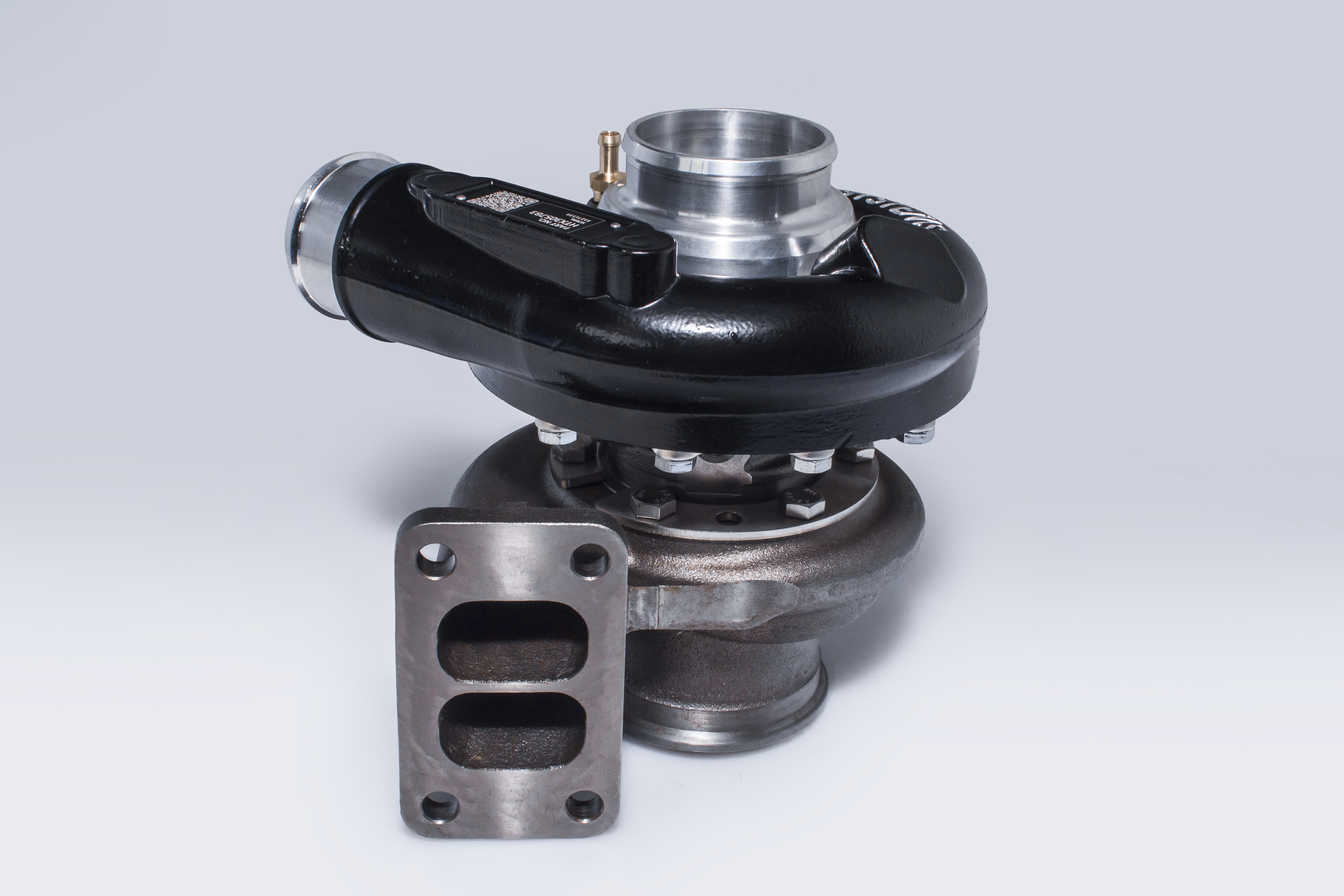

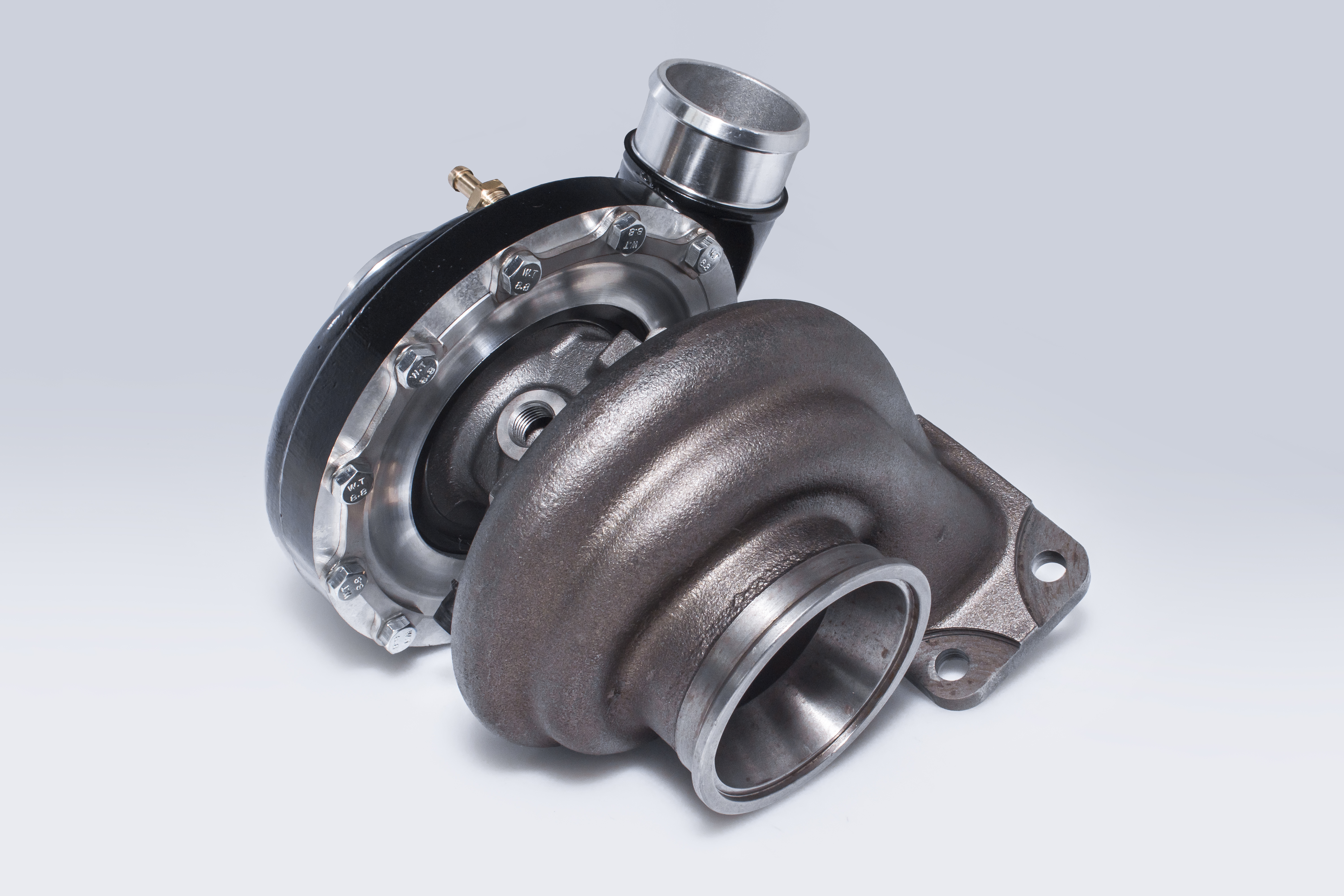

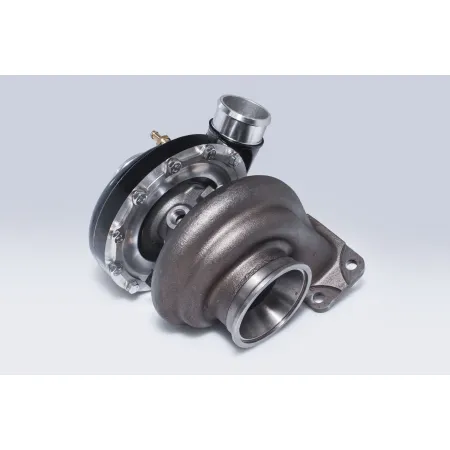

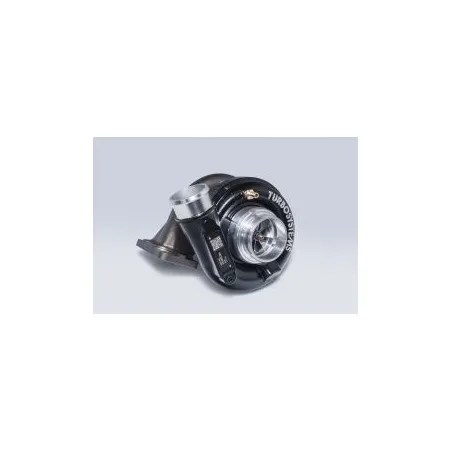

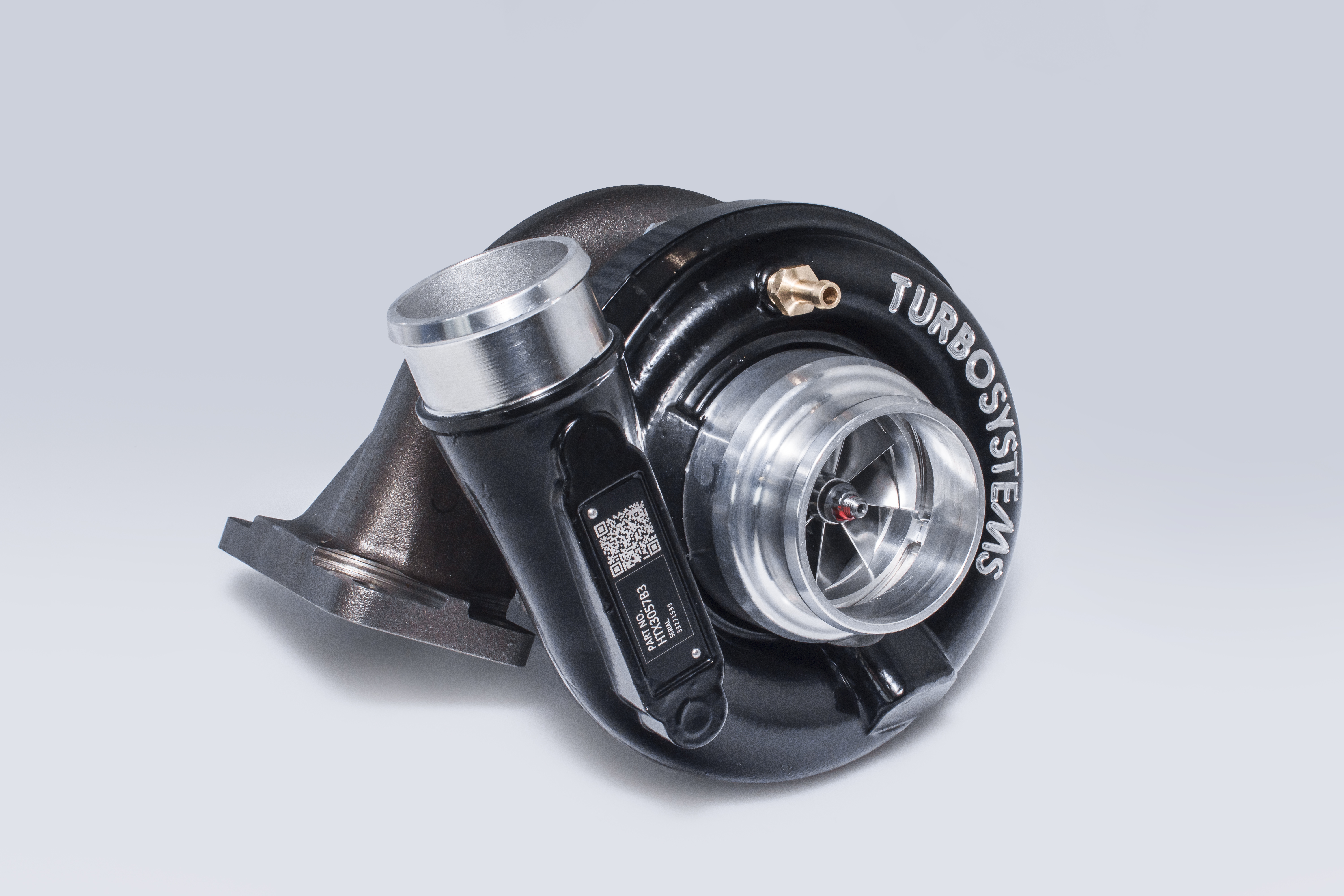

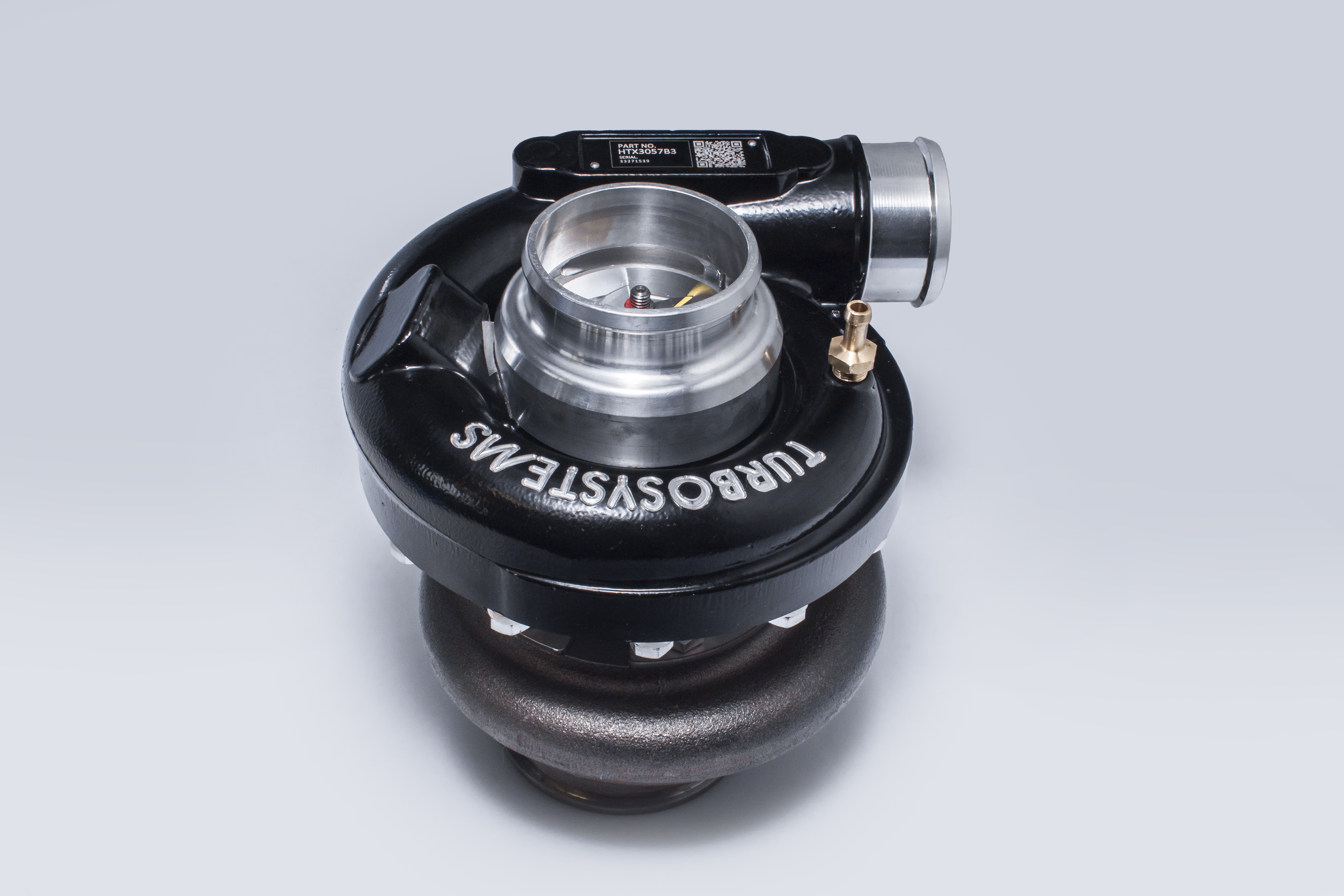

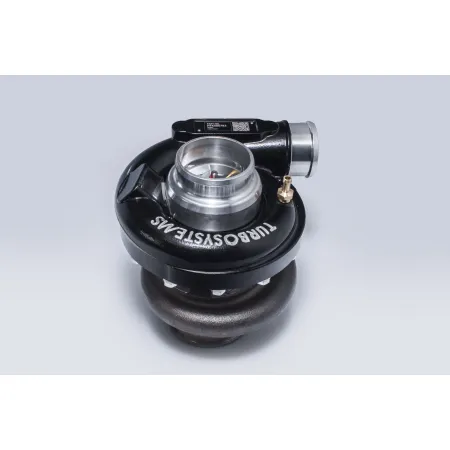

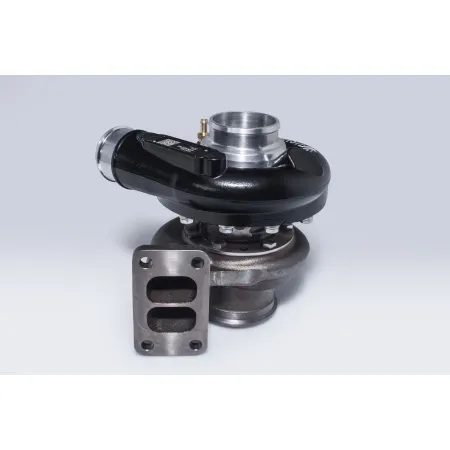

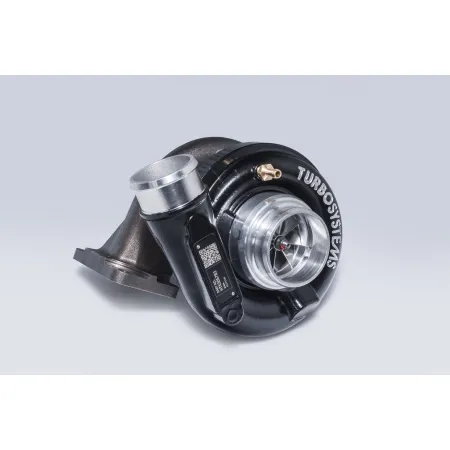

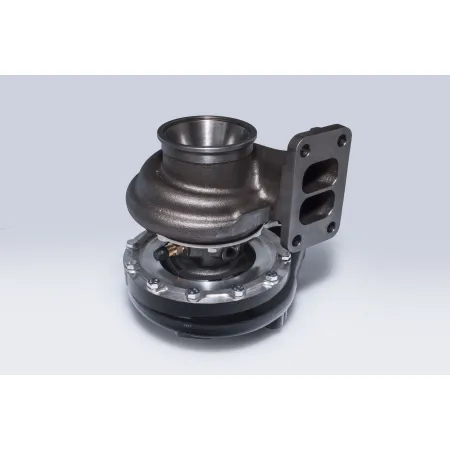

Turbocharger TurboSystems HTX3057B3

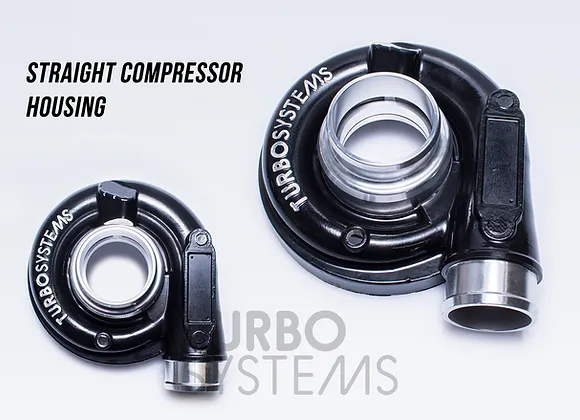

High performance turbocharger with 12cm2, 0.89 AR twin scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use. Power range:450-550 HP;     Compressor side: Ported shroud compressor housing; Compressor wheel:in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium; Intake: Straight compressor housing - 63mm (2,5"); Compressor housing with 90° elbow - 76mm (3"); Air outlet:51mm (2");   Core: Bearings: dual ceramic ball bearings; Cooling: water cooling with 2 x M14x1.5 ports; Lubrication: AN4 oil inlet with integrated oil restrictor;   Turbine side: Housing:twin scroll , 12cm2 AR: 0.89; Turbine wheel:custom design 60/55mm 9 blades; Flange: 3"T3 twin scroll; Exhaust connection:3" V-band clamp; Included Vband clamp and Oil drain flange
