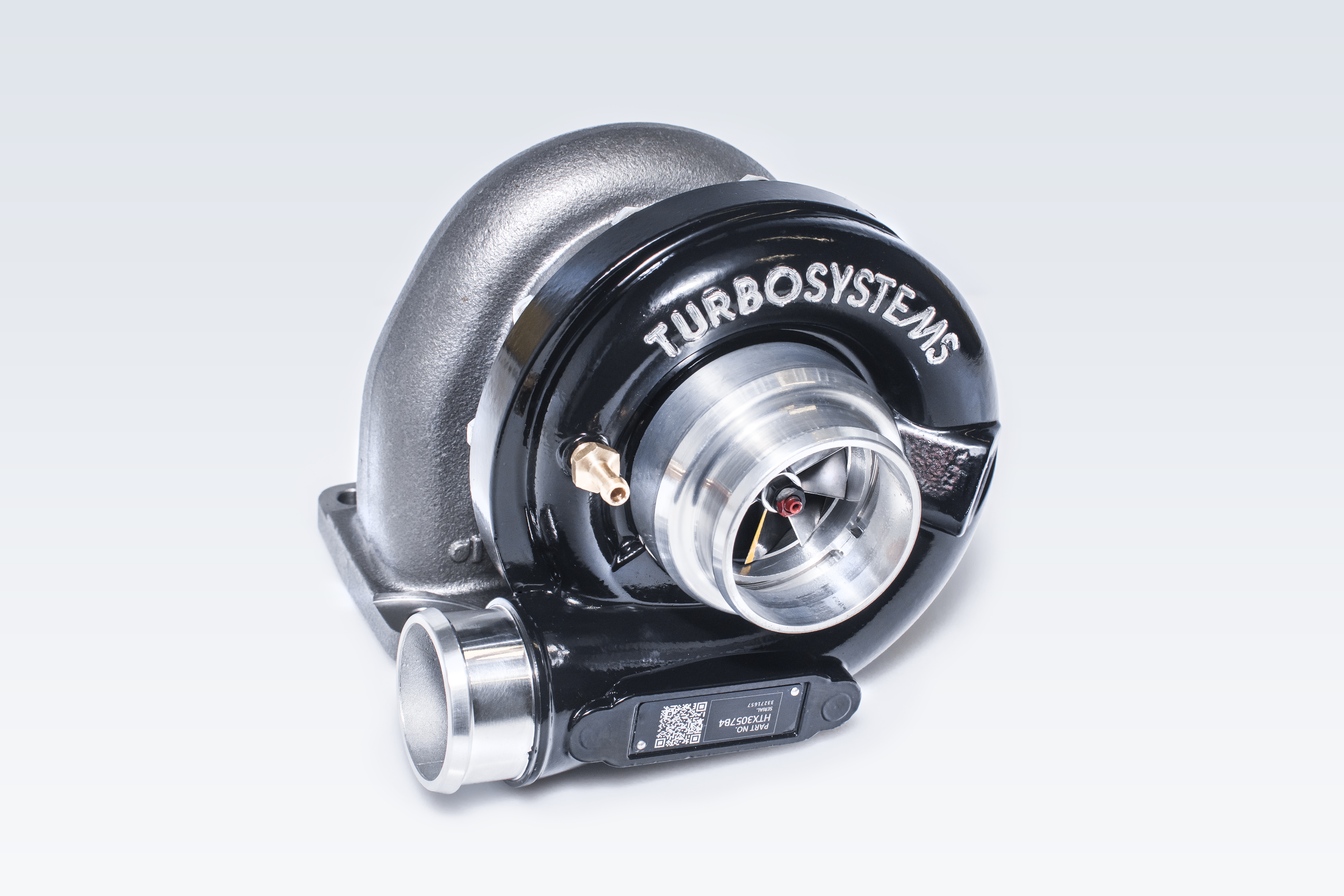

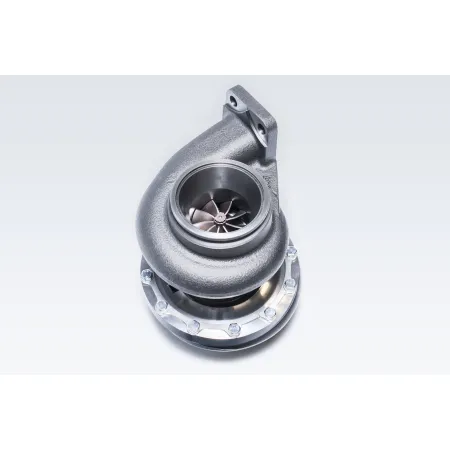

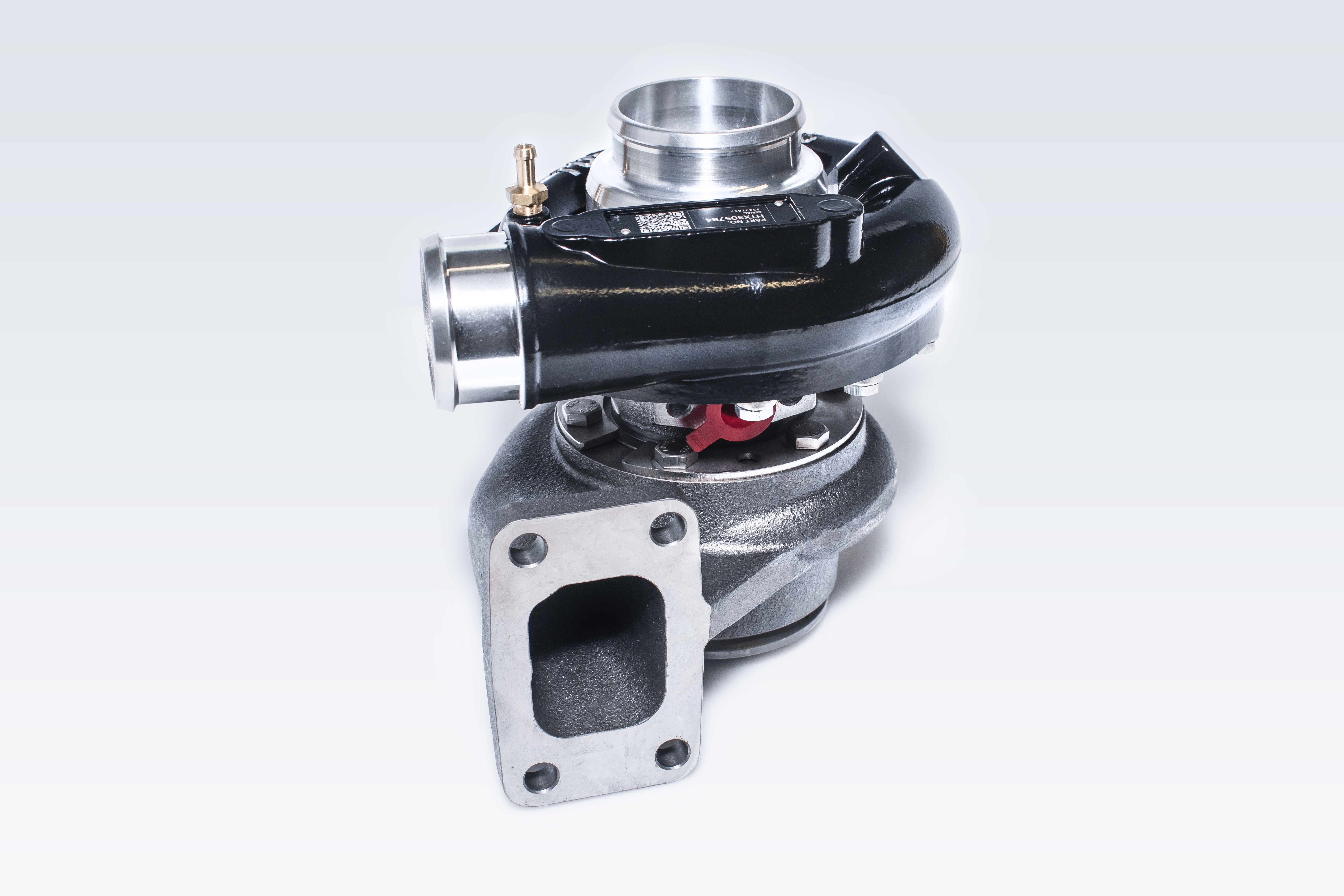

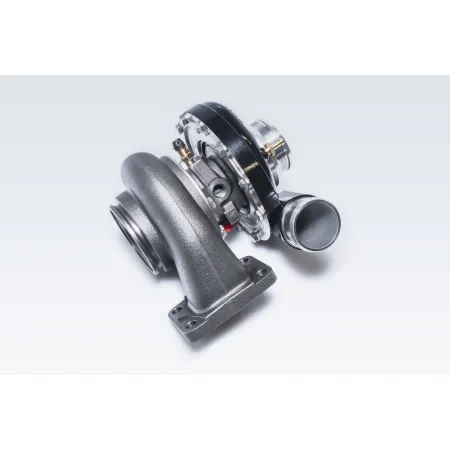

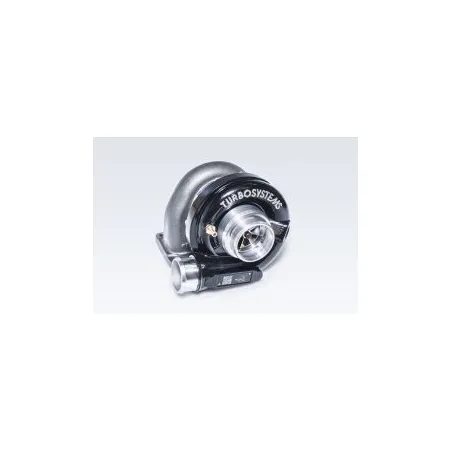

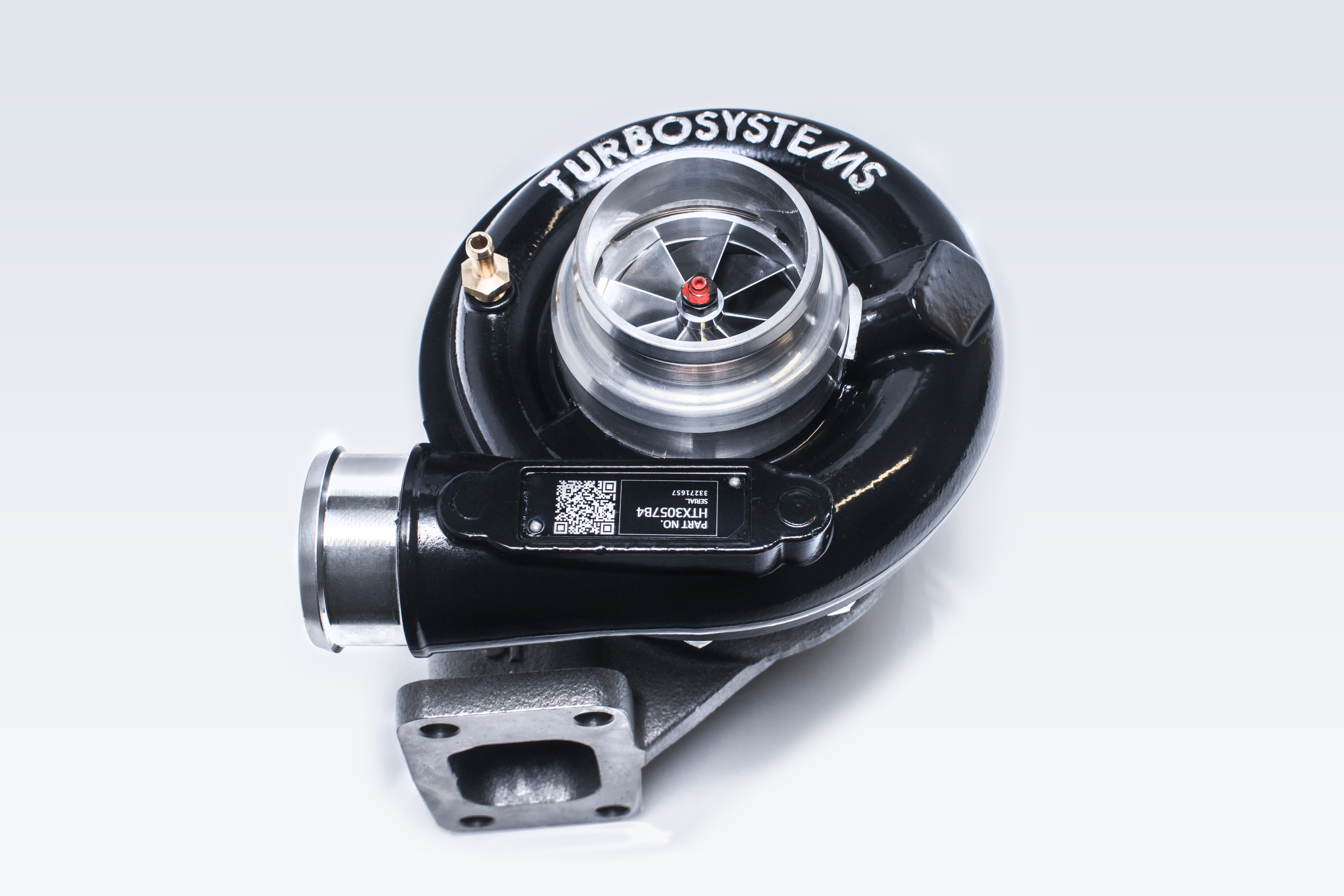

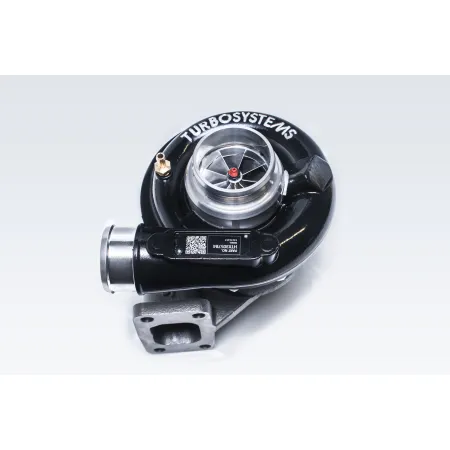

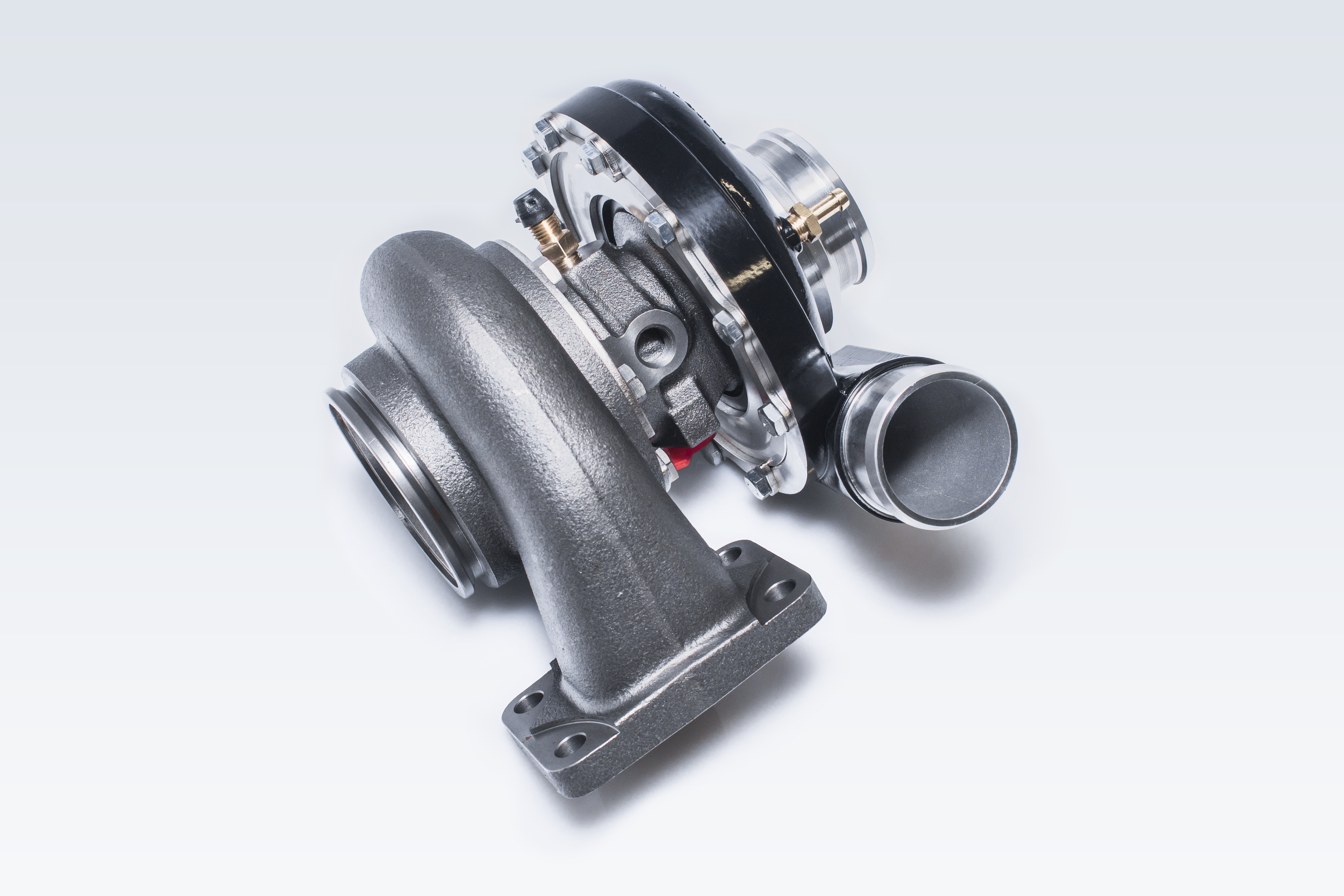

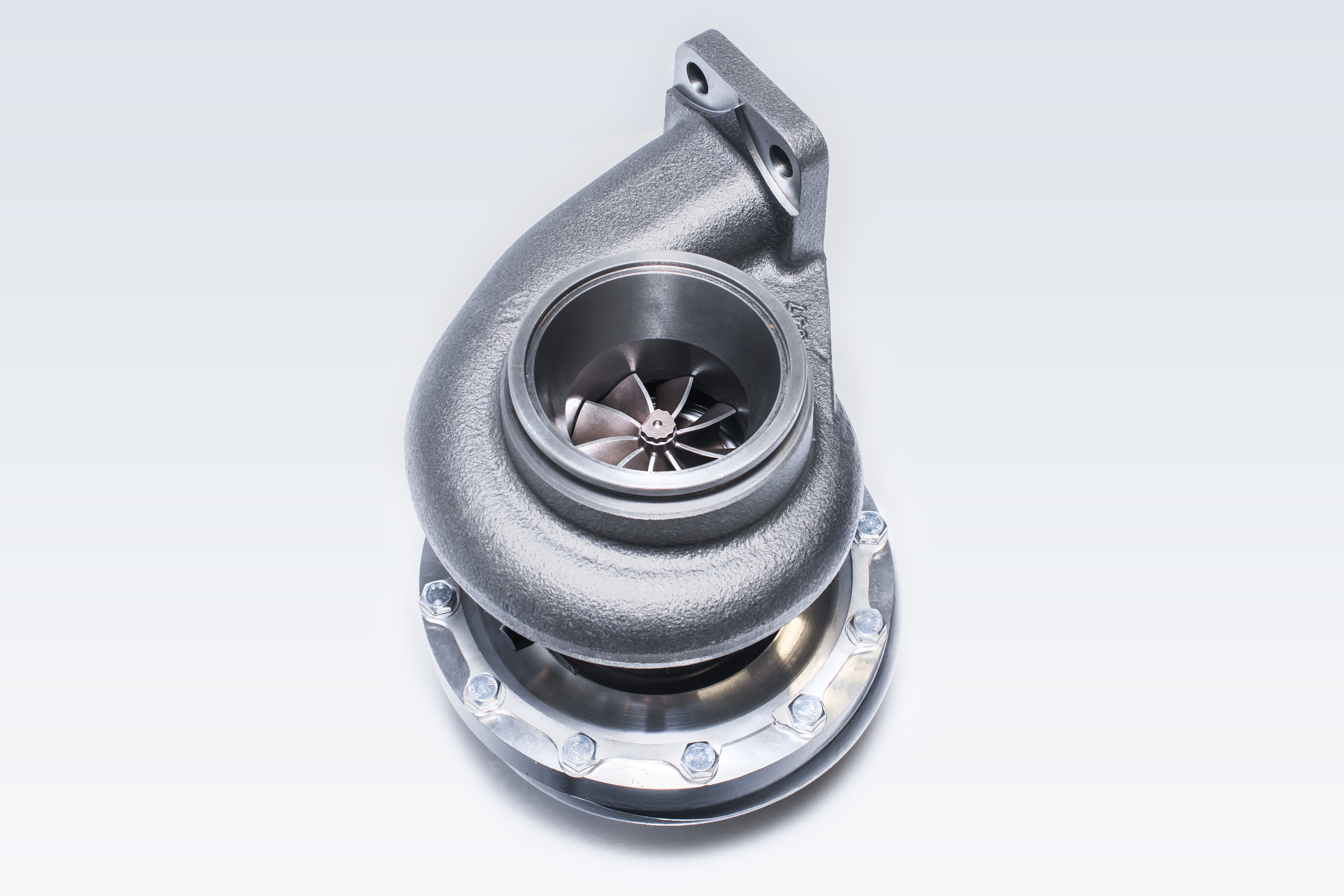

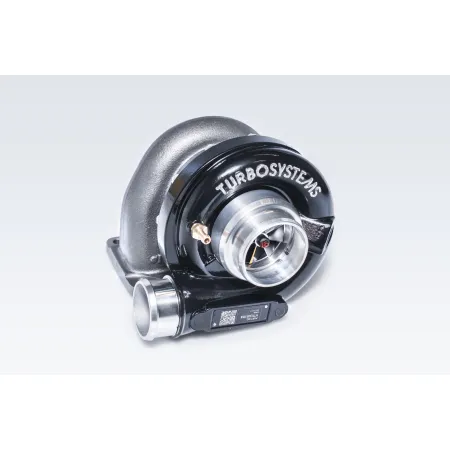

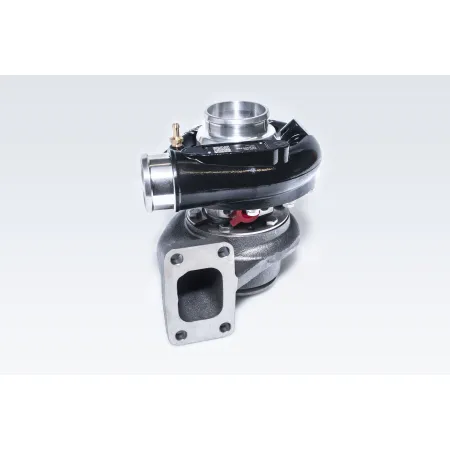

Turbocharger TurboSystems HTX3057B4 air outlet 90 degrees

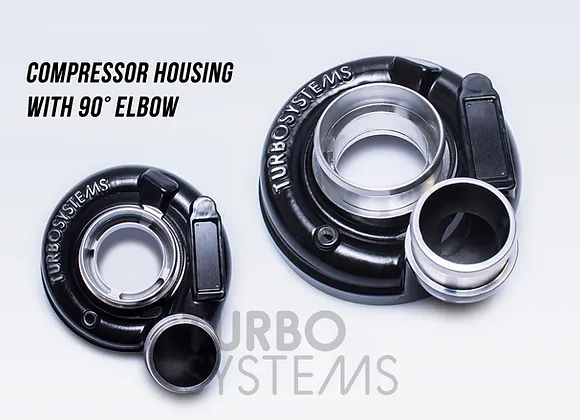

High performance turbocharger wtih 12cm2, 0.89 AR single scroll turbine housing designed for heavy loads and high temperature. Two compressor side air outlet choices - 90° and straight for easier connection. Dual ceramic ball bearing and machined from solid aluminium compressor wheel makes it durable and efficient solution for motorsport use. Power range:470-570 HP;     Compressor side: Ported shroud compressor housing; Compressor wheel:in-house made, reinforced 57/71 mm 9+0 blades machined from the solid aluminium; Intake: Straight compressor housing - 63mm (2,5"); Compressor housing with 90° elbow - 76mm (3"); Air outlet:51mm (2");   Core: Bearings: dual ceramic ball bearings; Cooling: water cooling with 2 x M14x1.5 ports; Lubrication: AN4 oil inlet with integrated oil restrictor;   Turbine side: Housing:single scroll , 12cm2 AR: 0.89; Turbine wheel:custom design 60/55mm 9 blades; Flange: 3"single twin scroll; Exhaust connection:3" V-band clamp; Included Vband clamp and Oil drain flange
