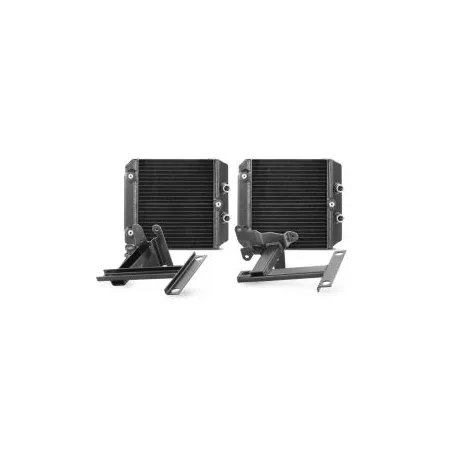

Upgrade Engine-Radiator Kit Wagner Tuning for Audi RS3 8Y 2.5 TFSI

Optimize the performance of your Audi RS3 8Y with the upgrade of the side-mounted engine water coolers.

Our side-mounted Wagner Tuning water coolers are designed to directly replace your vehicle's standard water coolers. By making maximum use of the available installation space, we were able to increase the size of the water coolers by an astonishing 132%.

This significant increase in size, combined with the excellent thermal conductivity of our all-aluminum water radiators, provides significantly improved cooling efficiency. This is particularly suitable for vehicles that are heavily used on the racetrack or that require additional performance modifications.

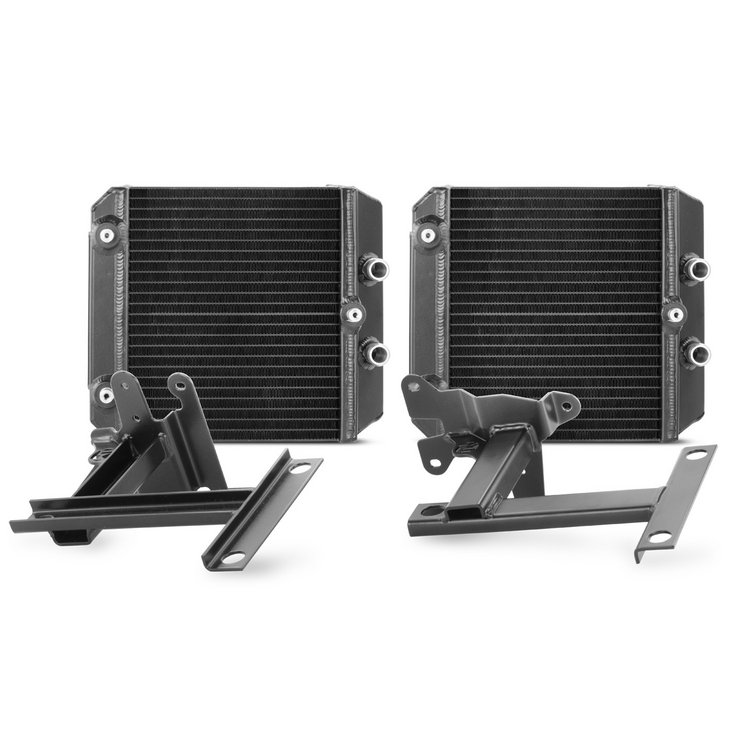

Our complete kit covers both the driver and passenger side and comes with additional brackets to ensure a smooth installation.

Prepare your Audi RS3 8Y for peak performance and optimize its cooling system with our high-quality side engine water coolers.


OEM water cooler dimensions:
200 mm x 230 mm x 44 mm
V = 1.84 liters
A = 460 cm²

Wagner Tuning water cooler dimensions:
205 mm x 242 mm x 86 mm
V = 4.27 liters (+132%)
A = 496 cm² (+8%)


Upgrade of the side engine water cooler for the Audi RS3 8Y

part number 400001026

Weight: 15.04 kg
Volume: 28.00 cm³/kg
