Wilwood 340-13574 Swing Mount Clutch / Brake Pedal

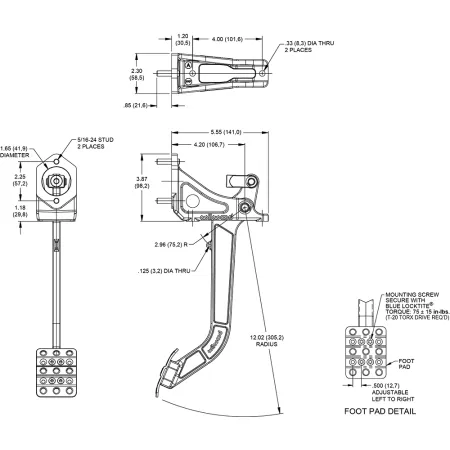

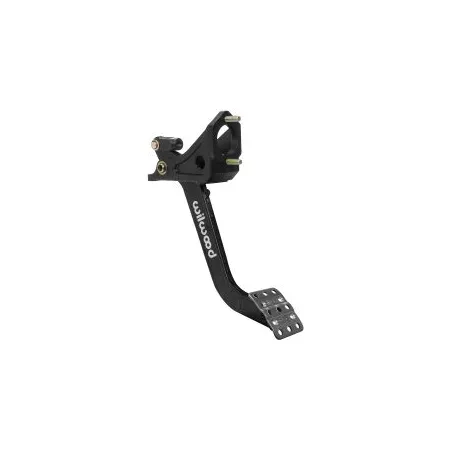

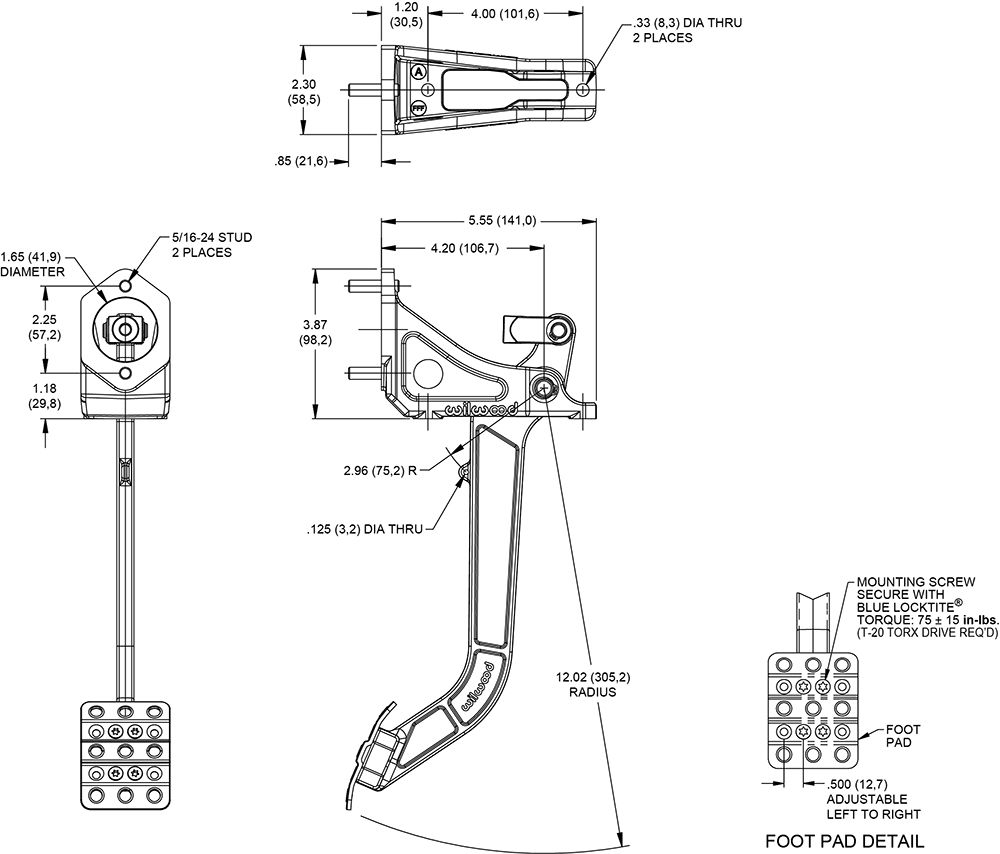

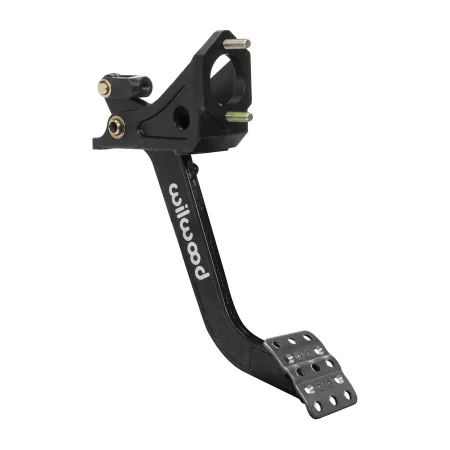

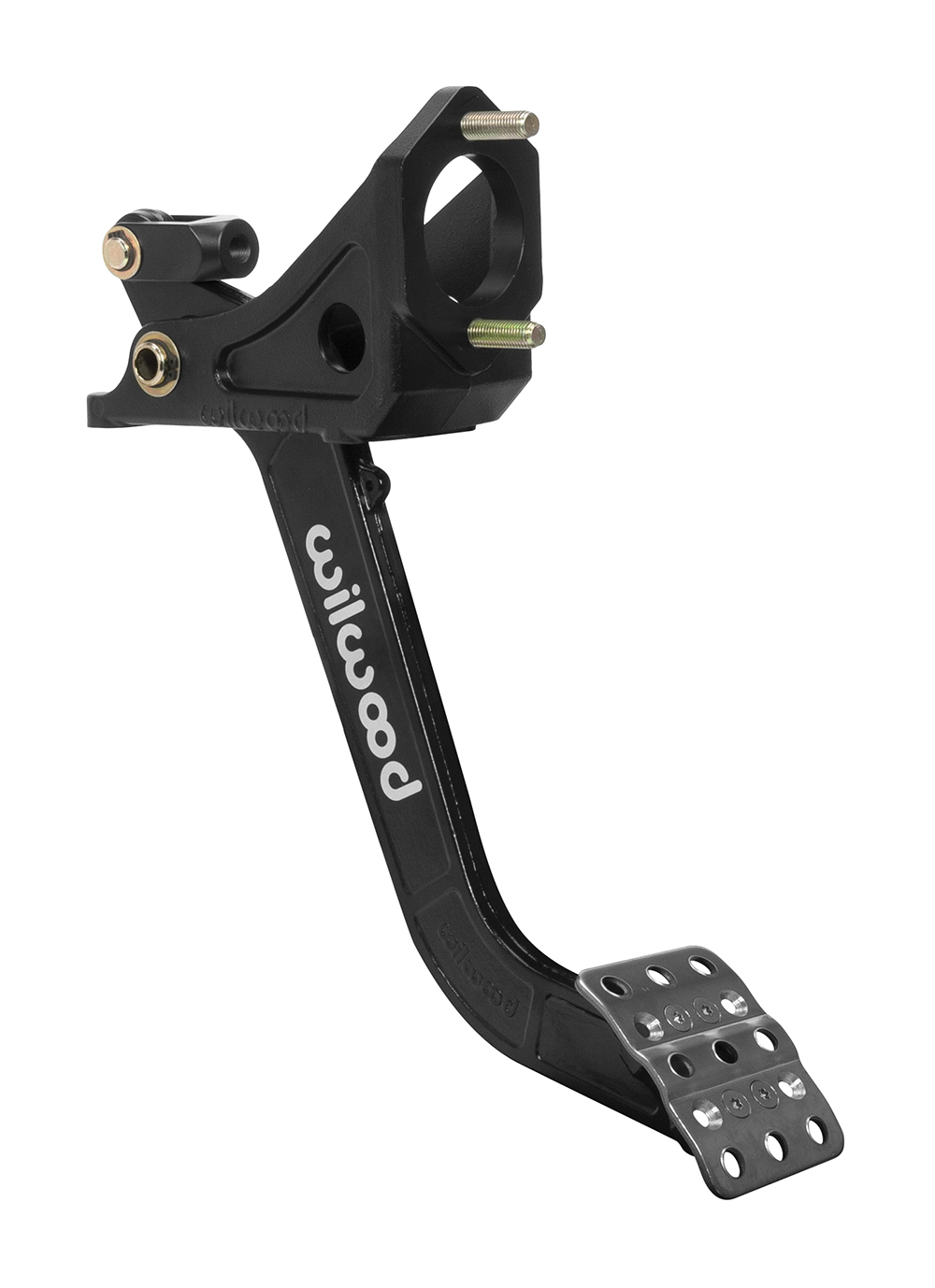

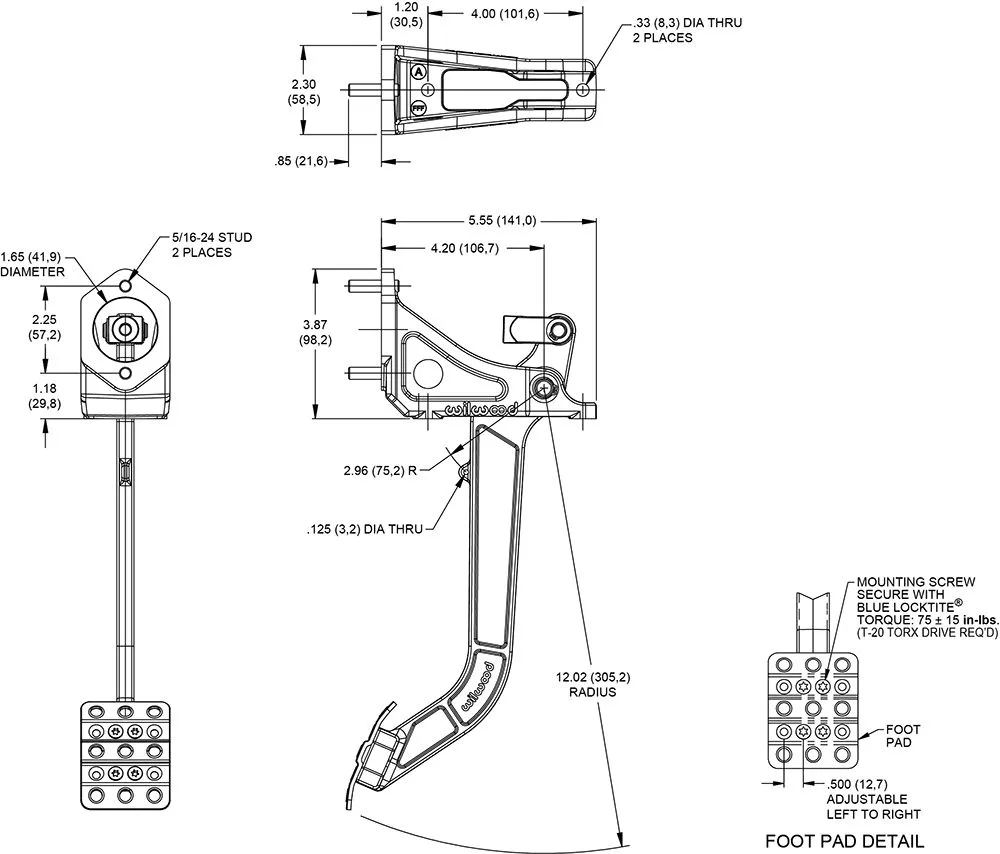

Reverse Swing Mount Clutch / Brake Pedal This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6;1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size. Caution: Four wheel brake systems require a two circuit, tandem outlet master cylinder. Single outlet master cylinders should not be used for those applications Pedal Type Material Aluminum Finish Black E-coat Pedal Description Mount Loc Swing Mount Facing Reverse Balance Bar No Mount Length (in) 11.28 Pedal Ratio & Length Pedal 1 Ratio 6.0 to 1 Pedal 2 Ratio   Pedal 1 Length (in) 12.02 Pedal 2 Length (in) Pedal Dimensions Additional Pedal Dimensions Mount Length (in) 11.28 Pedal 1 Length (in) 12.02
