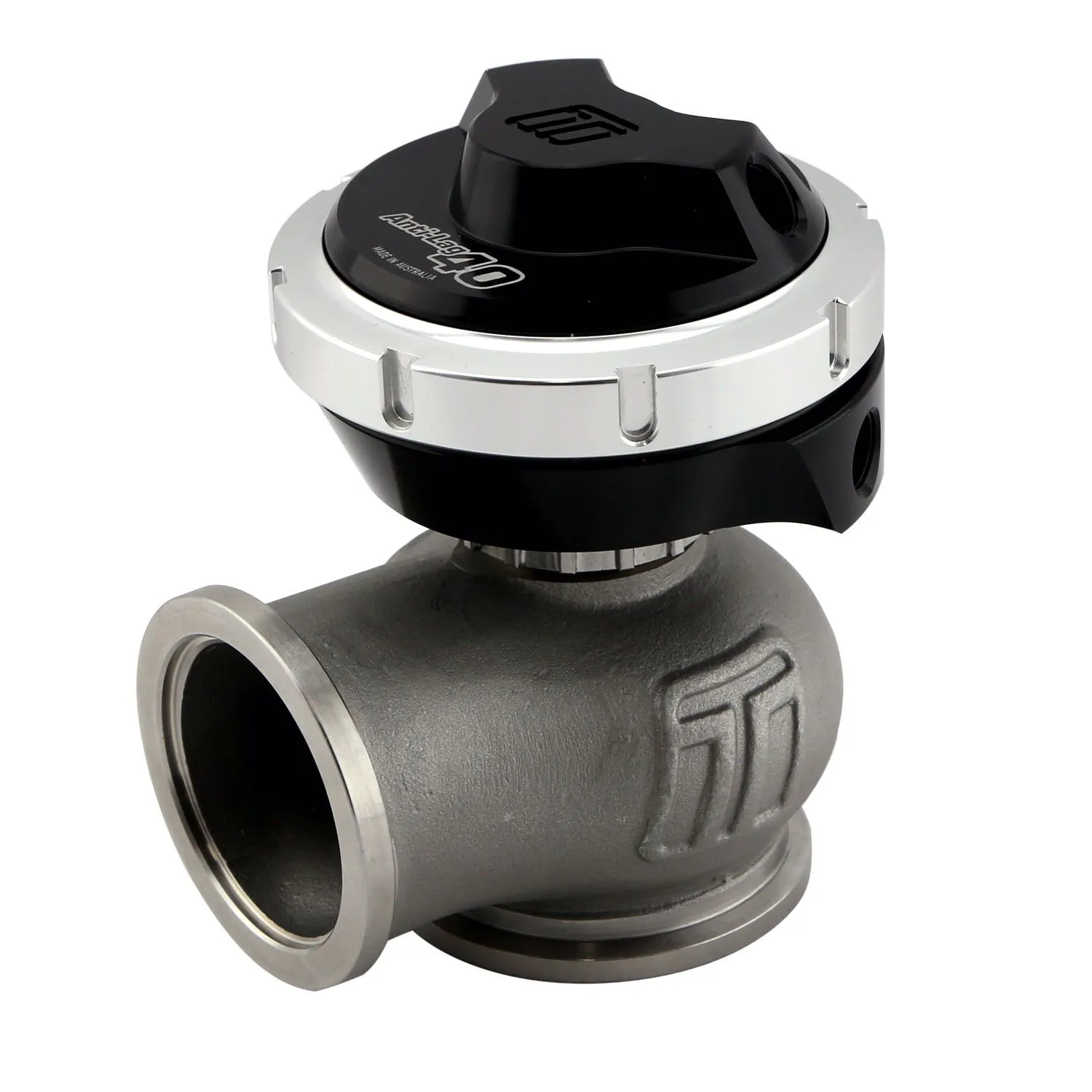

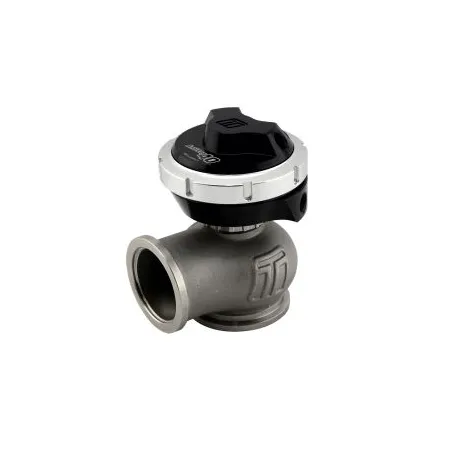

Zawór wastegate Turbosmart TS-0552-1402 GenV WG40ALV Anti-Lag

The Turbosmart ALV40 (Anti-Lag Valve) is a fresh air anti-lag bypass valve for motorsport applications. Featuring a 40mm valve diameter and a purpose-designed actuator housing. Multiple fittings are also supplied for ease of fitment and fabrication.

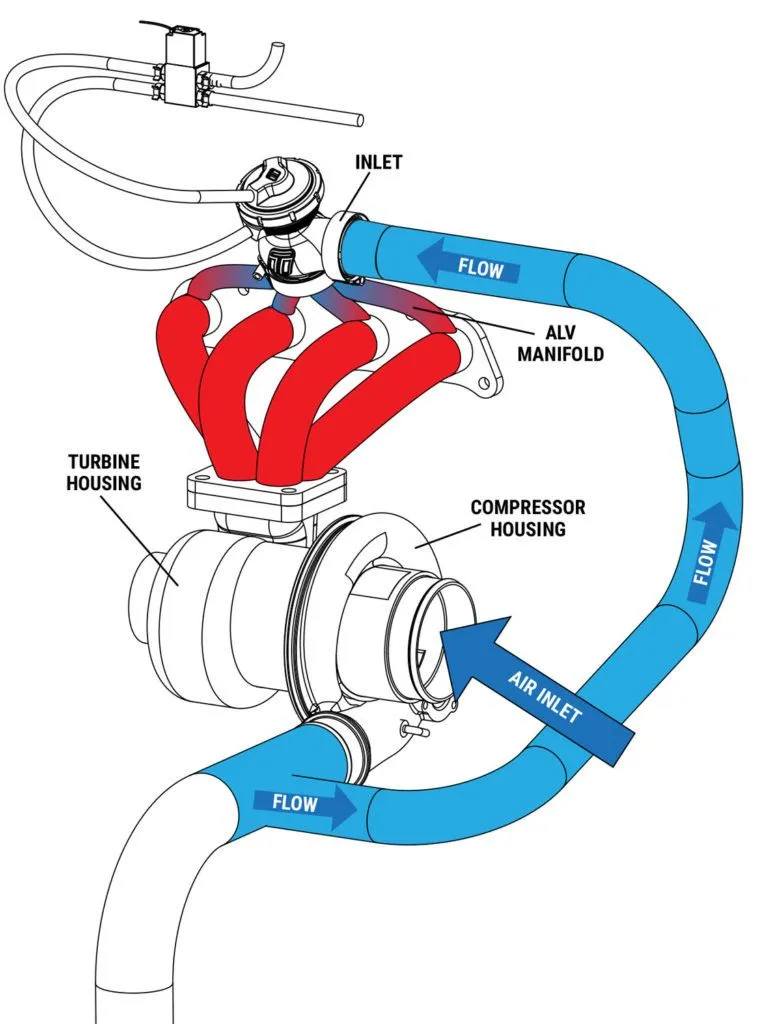

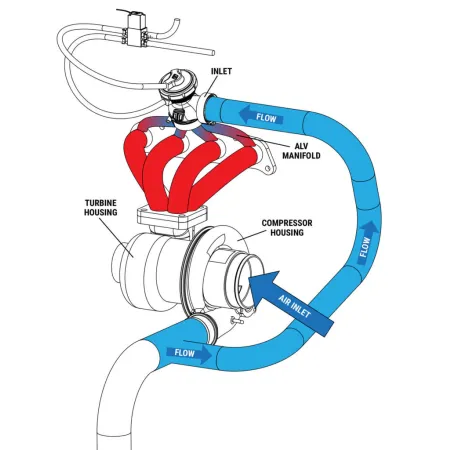

The ALV40 Fresh Air Valve allows for incoming charged fresh air from the turbo to be diverted safely into the exhaust manifold pre-turbine wheel with the throttle at low opening angles to allow for safer spooling of the turbocharger without the potentially damaging throttle-based late combustion event style anti-lag that can induce high engine stresses and break connecting rods.

The ALV is a sealed twin-chamber design, with the top port being the primary control port. The spring is designed to open under vacuum conditions to allow the air to bypass into the exhaust manifold, the lower chamber for twin-port control methods, control the valve irrespective of manifold pressure, and the shaft seal allows for leakproof operation.

Features

Twin Chamber Control

Suitable for Boost or Vacuum

Clockable Actuator Housing

Optional 1-5 port outlet flanges

Nitronic 60 Valve Guide & High Temp 347 Ss Body

17/7 PH Stainless Steel Springs

Strap Type V-band clamps
