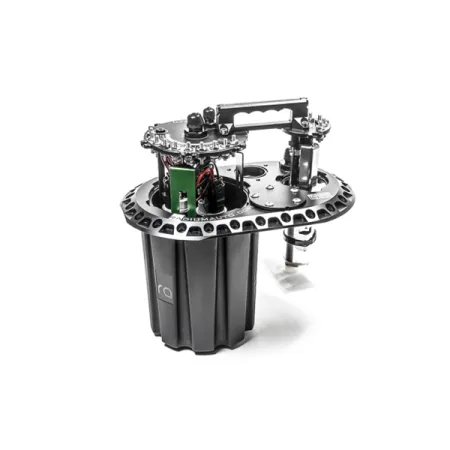

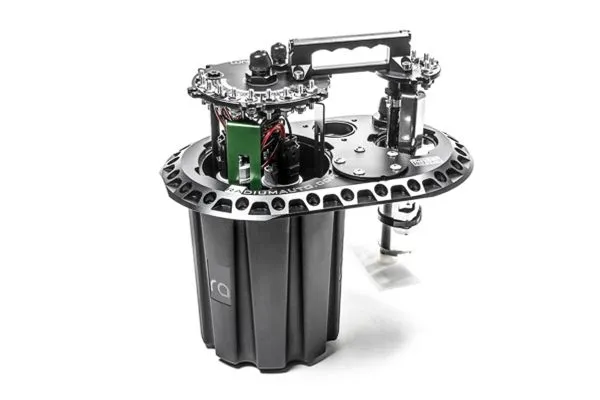

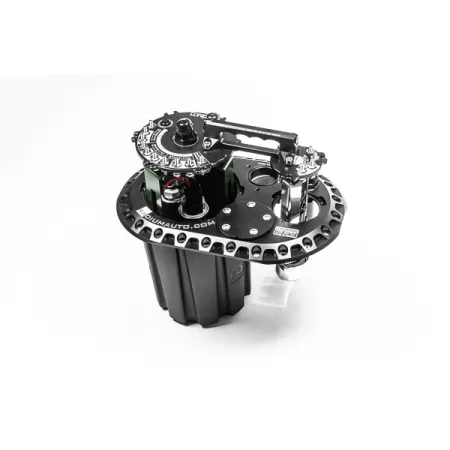

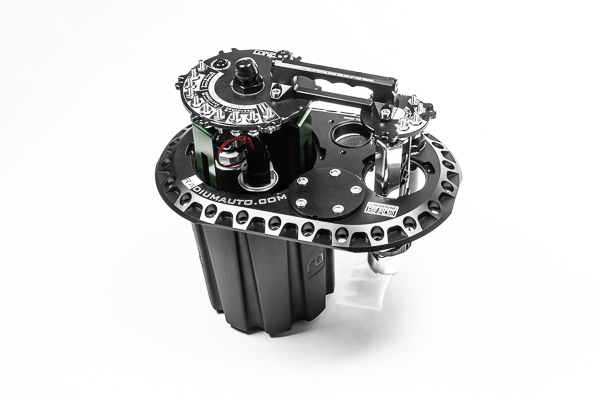

FCST-X Fuel Cell Surge Tank 3 Surge Pumps and 1 Lift Pump Included Walbro GSS342 Radium Engineering

LEGACY FCST FEATURES
The features listed below carry over from previous fuel cell surge tanks.
-Merged single 10AN ORB female threaded outlet. All pumps use check valves that prevent back-flow.
-One-way fill valves (355LPH each) allows fuel in, but not out, keeping the surge tank full.
-Multiple fuel pump options including gerotor, turbine, and brushless DC motor pumps.
-Hermetically sealed high-current stainless steel electrical studs capable of handling all pumps.
-Simplified servicing eliminates sealing washers and fuel cell retaining brackets.
-Full CNC aluminum construction with anodized surfacing for superior corrosion resistance.
-Fuel compatibility: leaded and unleaded gasoline, methanol, ethanol, E85, etc.
-Optional fuel surge tank level switch and diagnostic LED failsafe port.
-Rollover vent valve protection

NEW FEATURES
In addition to all previous FCST features, the new FCST-X rendition is packed with innovations.
-Fast lift and surge pump access (9 bolts total)
-Integrated lift handle for fuel pump servicing
-Lightweight surge tank increased from 2.2L to 2.6L
-Compatible with up to 4 brushless fuel pumps
-Up to 4 Bosch BR540 fuel pumps (DW400)
-Up to 3 Ti Automotive E5LM brushless pumps
-Up to 4 brushless Bosch pumps (DW440)
-Compatible with 16AN inlet mechanical pumps
-Easily swappable pump modules (sold separately)
-Compatible with shrouded level sensors
-Designed with less potential leak points
-Improved fluid control for quick filling
-Optimized internal fluid management
-Enhanced roll over protection
-Anti-rotation electrical terminals

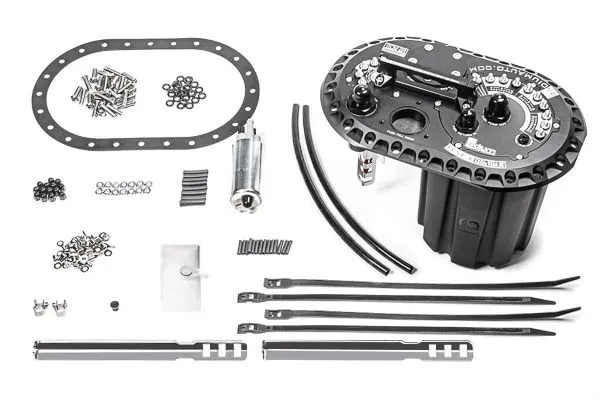

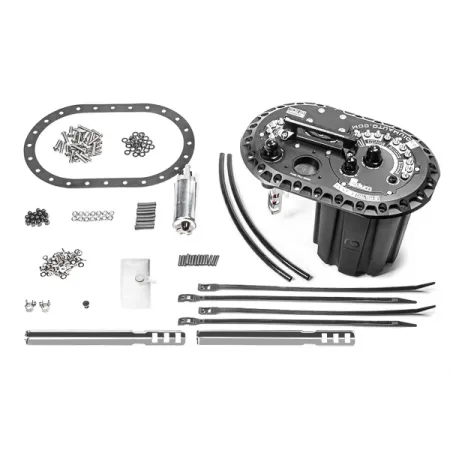

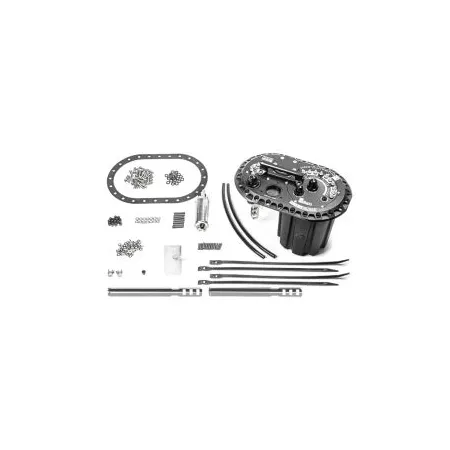

WHATS IN THE BOX?
The following comes standard with every FCST-X variation
-Anodized aluminum 6x10 plate
-Anodized aluminum surge tank pump hat
-Anodized aluminum lift pump hat
-Anodized aluminum service handle
-Anodized aluminum level sensor plate
-Anodized aluminum surge pump bracket
-Stainless lift pump mounts (shallow and deep)
-Lift pump and surge pump fuel filters
-Anodized aluminum 8AN roll over vent valve
-FKM refueling rollover protection seal
-FKM 6x10 24-hole sealing gasket
-8AN ORB to 6AN male return fitting
-10AN ORB to 8AN male pump out fitting
-2AN ORB fuel level switch plug
-FKM 1-way fill valves (x3)
-Anodized aluminum acorn nuts
-Electrical wire ring terminals

20-1990-00
This FCST-X does not include fuel pumps. It can hold up to 3 surge tank pumps and 1 lift pump of the following.

PUMP COMPATIBILITY
- Walbro GSS342
- AEM 50-1200
- *Deatschwerks DW440
*Use the electrical connector provided with the pumps.

20-1990-02
This FCST-X is preassembled with 1 Walbro GSS342 lift pump and 2 Walbro GSS342 surge tank pumps.

20-1990-03
This FCST-X is preassembled with 1 Walbro GSS342 lift pump and 3 Walbro GSS342 surge tank pumps.

20-1991-00
This FCST-X does not include fuel pumps. It can hold up to 3 surge tank pumps and 1 lift pump of the following.
NOTE: If using the optional fuel level switch inside the surge tank, only 2 surge tank pumps and 1 lift pump can be used.

PUMP COMPATIBILITY
- **Bosch BR540
- *Deatschwerks DW400
*Use the electrical connector provided with the pumps. For the lift pump, use the filter sock provided with the pump.
**Because this pump does not include a built-in check valve, multiple surge pumps must be ran together (not staged).

20-1992-00
This FCST-X does not include fuel pumps. It can hold up to 3 surge tank pumps and 1 lift pump of the following.

PUMP COMPATIBILITY
- Walbro F90000267
- Walbro F90000274
- Walbro F90000285
- *Walbro F90000295
*Because this pump does not include a built-in check valve, multiple surge pumps must be ran together (not staged).

20-1992-01
This FCST-X is preassembled with 1 Walbro F90000274 lift pump and 1 Walbro F90000274 surge tank pump.

20-1992-02
This FCST-X is preassembled with 1 Walbro F90000274 lift pump and 2 Walbro F90000274 surge tank pumps.

20-1992-03
This FCST-X is preassembled with 1 Walbro F90000274 lift pump and 3 Walbro F90000274 surge tank pumps.

20-1993-00
This FCST-X does not include fuel pumps. It can hold up to 2 surge tank pumps and 1 lift pump of the following.

SURGE PUMP COMPATIBILITY
- *Ti Automotive E5LM (check valves included)

LIFT PUMP COMPATIBILITY
- *Ti Automotive E5LM
- **Walbro F90000267
- **Walbro F90000274
- **Walbro F90000285
- **Walbro F90000295
*This pump requires a brushless controller. These typically come standard when purchasing the pump. See Ti Automotive BKS1001.
**For these pumps, it is recommended to use the Radium Engineering 14-0143 filter sock.

20-1995-00
There are two 80u (micron) filters included for two 10AN (5/8") pickups. If using the provided 16AN (1") pickup, an external filter will need to be purchased.
The surge tank can be configured to use any combination of the following:

SURGE TANK COMPATIBILITY
- (1x) 10AN pickup (shown below) for an inline external pump or mechanical pump.

- *(2x) 10AN pickups for an inline external pump and/or mechanical pump.
- (1x) 16AN pickup for an inline external pump or mechanical pump.
- *(1x) 16AN pickup and (1x) 10AN pickup (shown below) for an inline external pump and/or mechanical pump.

*An electric pump can be used to prime a mechanical pump (for faster engine starting) when running 2 of the pickups.
This FCST-X does not include a fuel pump for the lift pump. It is compatible with the following.

LIFT PUMP COMPATIBILITY
- Walbro F90000267
- Walbro F90000274
- Walbro F90000285
- Walbro F90000295

Instruction PDF
