FCST-X Lift Pump Mounts Mid Depth Radium Engineering

FCST-X LIFT PUMP MOUNTS
The mounts below are specific to the FCST-X ONLY (20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00). NOTE: Lift pump mounting information for the older FCST (20-014X-XX, 20-04XX-XX, 20-06XX-XX, and 20-09XX-XX) can be found towards the top of this page.

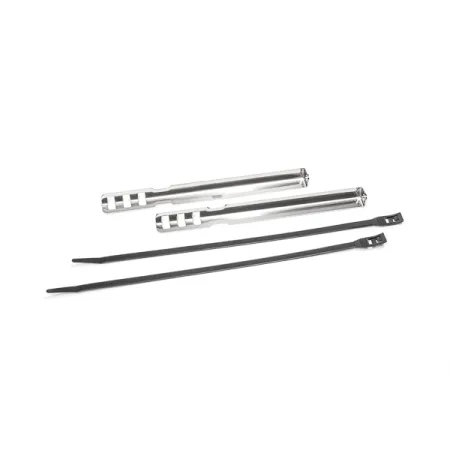

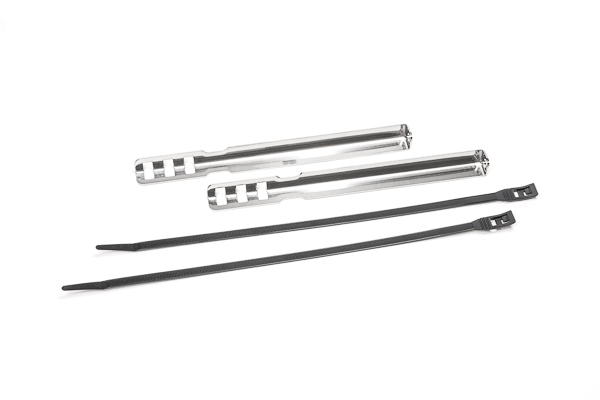

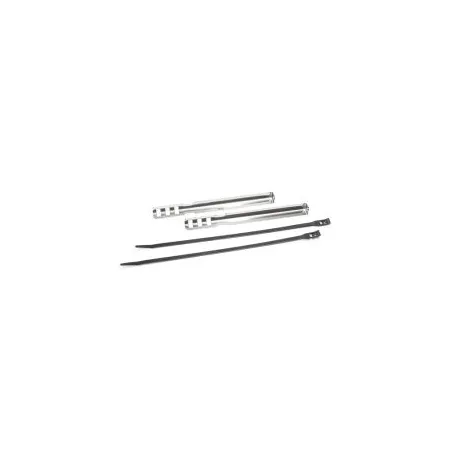

NOTE: There are 2 sets of lift pump brackets included with the purchase of a FCST-X. The kits below include 2 laser cut polished stainless steel brackets and 2 large locking pump bands.

20-1213 FCST-X LIFT PUMP MOUNTS, MID DEPTH
These lift pump mounts come standard with the 20-1990-XX, 20-1992-XX, 20-1993-00, and 20-1995-00 FCST-X. They were designed specifically for 39mm OD fuel pumps installed into 14 gallon, and 22 gallon Radium Engineering fuel cells. The internal depth of these fuel cells is 11.4" (290mm). This is measured from the underside of the fill plate to the bottom of the lift pump filter sock. But these brackets are very forgiving with respect to fuel cell depth.
